- Bently Nevada 330103-00-06-10-02-00 | Industrial Vibration Spare
2. Unboxing & Physical Snapshot
- Model & Brand: Bently Nevada 330103-00-06-10-02-00
- Product Type: 3300 XL 8 mm Proximity Probe (eddy-current displacement sensor) used with the Bently Nevada proximity transducer system for shaft vibration and position measurement.
- Approximate Physical Dimensions (W × H × D): Approximately 38 × 38 × 182 mm (probe body and cable configuration dependent).
- Estimated Shipping Weight: Approximately 1.0-1.5 kg including protective packaging and cable protection.
- What’s in the Box:

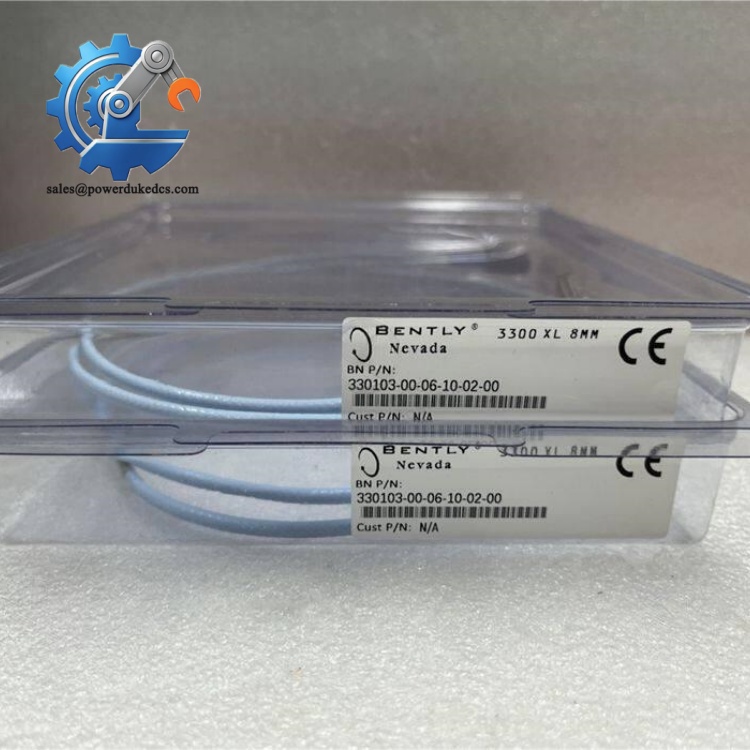

- Bently Nevada 330103-00-06-10-02-00 3300 XL 8 mm proximity probe
- Integrated probe cable assembly
- Miniature coaxial ClickLoc connector
- Protective connector cover (when supplied)
- Original anti-static/protective packaging
- Calibration and identification documentation when available
3. Product Introduction
The Bently Nevada 330103-00-06-10-02-00 is installed directly at the machinery measurement point, where mechanical clearance between the probe tip and rotating shaft surface determines measurement accuracy. This 8 mm eddy-current proximity probe provides non-contact displacement measurement for critical rotating equipment such as turbines, compressors, pumps, and large motors. (Probe gap setting is not a minor adjustment; incorrect installation can distort vibration readings and compromise machinery diagnostics.)
This probe operates as part of a complete 3300 XL proximity transducer system that includes the probe, extension cable, and Proximitor sensor. The 330103-00-06-10-02-00 configuration identifies a 60 mm overall case length option, 1.0 meter total length, miniature coaxial ClickLoc connector, and no agency approval option. Field replacement requires matching the exact probe length, connector type, calibration requirements, and hazardous-area approvals where applicable.
4. Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330103-00-06-10-02-00 |
| Product Family | 3300 XL 8 mm Proximity Probe |
| Measurement Principle | Eddy-current non-contact displacement sensing |
| Probe Diameter | 8 mm |
| Overall Case Length Option | 60 mm |
| Total Length Option | 1.0 m (3.3 ft) |
| Connector Type | Miniature coaxial ClickLoc connector |
| Agency Approval Option | 00 – No approval option |
| Measurement Type | Shaft radial vibration and axial position |
| Sensitivity | Approximately 200 mV/mil (7.87 mV/µm) |
| Operating Temperature | Approximately -40°C to +177°C (system dependent) |
| Power Requirement | Supplied by compatible Proximitor sensor |
| Output Signal | Voltage proportional to probe gap |
| Compatible System | 3300 XL 8 mm Proximity Transducer System |
| Typical Heat Dissipation | Passive sensor element; heat generation is minimal |
Bently Nevada 330103-00-06-10-02-00
5. ? Global Compliance & Industry Certifications
Expected regulatory considerations for the Bently Nevada 330103-00-06-10-02-00 include:
- CE Mark: Applicable for supported system configurations meeting electromagnetic compatibility requirements.
- ATEX / IECEx: Available for selected 3300 XL system configurations when ordered with appropriate hazardous-area approvals.
- CSA / UL Recognition: May apply depending on complete system approval configuration.
- Marine Approvals (DNV GL): Applicable only when installed as part of an approved marine machinery monitoring package.
- RoHS Compliance: Depends on manufacturing revision and production date.
For hazardous-area machinery monitoring, the probe approval cannot be considered independently. The probe, extension cable, Proximitor sensor, barriers, and installation method must match the certified system design. This prevents incorrect substitutions that could invalidate area classification compliance.
Verify specific lot certifications with OEM.
6. ? Long-Term Storage & Asset Preservation Guide
Keep the probe inside its original protective packaging with the connector covered. The ClickLoc connector and cable termination require protection from dust, moisture, and mechanical impact during storage.
Maintain warehouse humidity below 60% RH and avoid storing near chemical processing areas. Corrosive vapors can attack connector surfaces and reduce signal integrity after installation.
Inspect stored probes annually. Check the probe tip surface, cable jacket, connector threads, and identification markings. Do not bend the cable sharply near the probe body because internal conductor damage may remain hidden until commissioning.
7. Physical Installation Prerequisites
- Install only with the compatible Bently Nevada 3300 XL Proximitor sensor and approved extension cable configuration.
- Verify probe gap voltage and mechanical clearance before operation.
- Use the correct mounting bracket or threaded installation hardware for the machine design.
- Protect the probe cable from abrasion, excessive heat, and high-current power wiring.
- Maintain proper grounding and shielding practices for the instrumentation circuit.
- Confirm the shaft target material matches the calibration requirements.
- Keep sufficient access around the probe mounting location for inspection and future replacement.
8. Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly used for a Bently Nevada 330103-00-06-10-02-00 shipment?
A: Proximity sensors and measurement devices are commonly reviewed under HS headings associated with measuring and checking instruments, often within categories such as 9031 or related instrumentation classifications. Final classification depends on the importing country’s customs interpretation and declared function.
Q: Does Country of Origin affect acceptance of this proximity probe?
A: Yes. COO information supports import clearance, customer quality records, and asset traceability. Verify the country marking on the product label and supplier documentation before receiving inspection.
Q: Should this probe ship with insurance coverage?
A: Recommended. The probe contains precision sensing elements and a calibrated cable assembly. Transportation damage may not be visible externally but can affect measurement accuracy after installation.
Q: Does the 330103-00-06-10-02-00 include the latest firmware pre-loaded?
A: No firmware is stored in the probe itself. The critical verification points are probe part number, cable length, connector style, calibration compatibility, and matching Proximitor sensor configuration.
