Bently Nevada 330104-03-13-10-01-00 | Genuine Proximity Probe

2. Unboxing & Physical Snapshot

Brand & Model: Bently Nevada 330104-03-13-10-01-00
Product Category: 3300 XL 8 mm Proximity Probe
Application: Shaft vibration and position measurement for rotating machinery protection systems. The 330104 series uses an M10 × 1 metric threaded, armored forward-mount 8 mm probe design intended for 3300 XL proximity transducer systems.
Approximate Physical Dimensions:
- Probe tip diameter: 8 mm (0.31 in)
- Thread style: M10 × 1 metric
- Integrated armored cable configuration
- Total length determined by the part-number configuration
Estimated Shipping Weight: Approximately 0.5-0.8 lb (0.23-0.36 kg) including protective packaging.
What’s in the Box:
- Bently Nevada 330104-03-13-10-01-00 proximity probe
- Integrated armored cable assembly
- Identification label
- Protective probe tip packaging
- ESD-safe packaging when supplied through controlled inventory
- Documentation when included with OEM shipment

3. Product Introduction

Rotating machinery protection systems depend on accurate shaft displacement measurements, especially in turbines, compressors, and high-speed rotating equipment. The Bently Nevada 330104-03-13-10-01-00 is an 8 mm proximity probe designed for non-contact eddy-current measurement within a 3300 XL monitoring architecture. The armored construction protects the cable section from mechanical exposure near the machine casing (critical in high-vibration installations).

This probe is not a generic proximity sensor replacement. The probe, extension cable, and Proximitor Sensor form a matched electrical system where length and calibration characteristics must remain compatible. Inspect the threaded body, probe tip, armor, and connector interface before installation. A small defect at the sensing end can affect gap adjustment and machine protection readings.

4. Core Technical Specifications

Parameter	Value
Manufacturer	Bently Nevada
Model Number	330104-03-13-10-01-00
Product Family	3300 XL 8 mm Proximity Transducer System
Product Type	Armored proximity probe
Probe Diameter	8 mm
Mounting Thread	M10 × 1 metric thread
Mounting Style	Forward mount
Cable Type	Armored triaxial cable
Cable Armor	Stainless steel armor option
Measurement Principle	Eddy-current displacement sensing
Typical Sensitivity	200 mV/mil (7.87 V/mm)
Linear Range	Approximately 2 mm (80 mils)
Probe Material	Stainless steel housing with industrial probe tip
Operating Environment	Turbine, compressor, and rotating machinery applications
Power Requirement	Supplied through compatible Proximitor Sensor
Heat Dissipation	Passive component; negligible self-heating

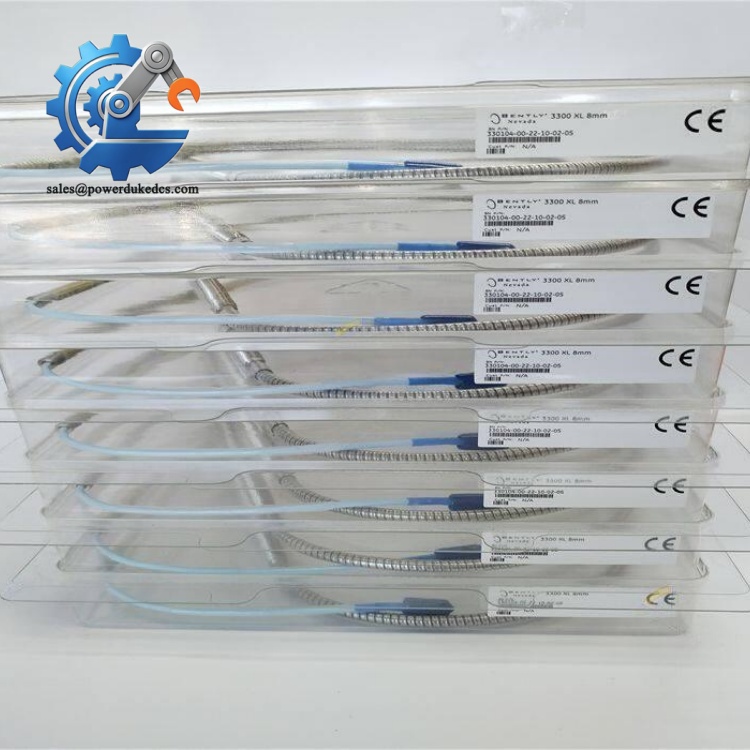

Bently Nevada 330104-03-13-10-01-00

5. Global Compliance & Industry Certifications

Expected regulatory approvals and compliance options for this class of machinery monitoring probe may include:

CE Mark for applicable electromagnetic compatibility requirements when installed as part of an approved system.
UL/cUL recognition or equivalent industrial approvals where required by the complete monitoring installation.
ATEX/IECEx certification options for hazardous-area applications when ordered with the correct certified configuration.
Marine approvals such as DNV GL where installed on certified offshore or marine rotating equipment.

ATEX/IECEx approval is important in classified areas because the approved probe and monitoring circuit combination helps prevent ignition risks associated with electrical equipment installed near flammable atmospheres.

Verify specific lot certifications with OEM.

6. Long-Term Storage & Asset Preservation Guide

Keep the probe sealed in its original protective packaging until installation. Protect the probe tip from impact, scratches, and contamination because surface damage can affect measurement accuracy.
Maintain warehouse humidity below 60% RH. Moisture exposure can degrade connector surfaces and promote corrosion on metallic components.
Store the armored cable in a relaxed coil with no sharp bends. Avoid compressing the armor under heavy inventory loads (cable deformation may not be obvious until installation).

7. Physical Installation Prerequisites

Confirm compatibility with the complete Bently Nevada 3300 XL 8 mm proximity system before installation.
Verify the probe thread size, mounting depth, and mechanical clearance in the machine casing.
Maintain proper cable routing away from high-current conductors, ignition systems, and strong electromagnetic interference sources.
Use the specified mounting torque for the M10 × 1 threaded body.
Ensure the probe gap is adjusted using the correct monitoring system procedure before equipment startup.
Maintain cabinet clearance around connected Proximitor Sensors for inspection and service access.

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly reviewed for the Bently Nevada 330104-03-13-10-01-00?
A: Proximity probes and industrial sensing assemblies may be classified under electrical measuring or control equipment categories. The final HS classification depends on the importing country’s customs interpretation and the declared function of the sensor assembly.

Q: Does Country of Origin (COO) affect acceptance of this machinery spare?
A: Yes. COO documentation supports customs clearance, supplier qualification, and maintenance traceability. Retain OEM labels, serial information, and receiving inspection records with the asset file.

Q: Should shipping insurance be purchased for this proximity probe?
A: Yes. The probe tip and armored cable assembly require protection from impact and bending damage. Use rigid packaging, protective sleeves, and shipment coverage based on replacement value.

Q: Does the 330104-03-13-10-01-00 include the latest firmware pre-loaded?
A: No. This is a passive sensing probe and does not contain firmware. Performance depends on compatibility with the installed extension cable, Proximitor Sensor, and 3300 XL monitoring rack configuration.
