Description

1. Bently Nevada 330180-51-00 | Genuine Proximitor Transducer

2. Unboxing & Physical Snapshot

• Brand & Model: Bently Nevada 330180-51-00
• Product Category: 3300 XL 8 mm Proximity Transducer System
• Application: Shaft vibration, shaft position, and machinery condition monitoring for rotating equipment such as turbines, compressors, and large industrial machines. The assembly consists of an 8 mm probe, extension cable, and Proximitor Sensor.
• Approximate Physical Dimensions:
  • Proximitor sensor body: approximately 3.0 × 1.4 × 1.3 in (76 × 36 × 33 mm)
  • Complete shipped assembly varies due to the 5.0 m cable length.
• Estimated Shipping Weight: Approximately 1.5-2.0 lb (0.7-0.9 kg), depending on packaging configuration.
• What’s in the Box:
  • Bently Nevada 330180-51-00 3300 XL Proximitor Sensor system
  • 8 mm proximity probe
  • 5.0 m extension cable
  • Factory identification labels
  • ESD-safe protective packaging
  • Calibration and product documentation when supplied

3. Product Introduction

Rotating equipment protection systems operate in environments where vibration, temperature cycling, and mechanical movement continuously challenge measurement accuracy. The Bently Nevada 330180-51-00 is a complete 3300 XL 8 mm proximity transducer system designed to measure shaft relative vibration and position using eddy-current sensing technology (a common architecture for fluid-film bearing machinery).

This system connects the machine casing probe installation to the plant monitoring rack through a matched probe, extension cable, and Proximitor Sensor combination. The 5.0 m system length is selected during engineering design because cable length affects electrical characteristics. Inspect the probe tip, connector locking area, and cable jacket before installation (minor cable damage can affect measurement stability).

4. Core Technical Specifications

Parameter	Value
Manufacturer	Bently Nevada
Model Number	330180-51-00
Product Family	3300 XL 8 mm Proximity Transducer System
System Type	Eddy-current proximity measurement system
Probe Diameter	8 mm
Total System Length	5.0 m (16.4 ft)
Mounting Option	DIN mount configuration
Measurement Type	Shaft vibration and position measurement
Sensitivity	200 mV/mil (approximately 7.87 V/mm)
Power Supply	-24 VDC nominal
Power Consumption	Approximately 12 mA maximum
Linear Range	Approximately 2 mm typical
Target Material	AISI 4140 steel reference target
Output Signal	Voltage proportional to probe gap
Operating Temperature (Probe)	Depends on temperature classification; up to high-temperature variants
Cable Temperature Rating	Dependent on cable configuration
Compliance Basis	Designed for machinery monitoring applications including API 670 installations when properly configured

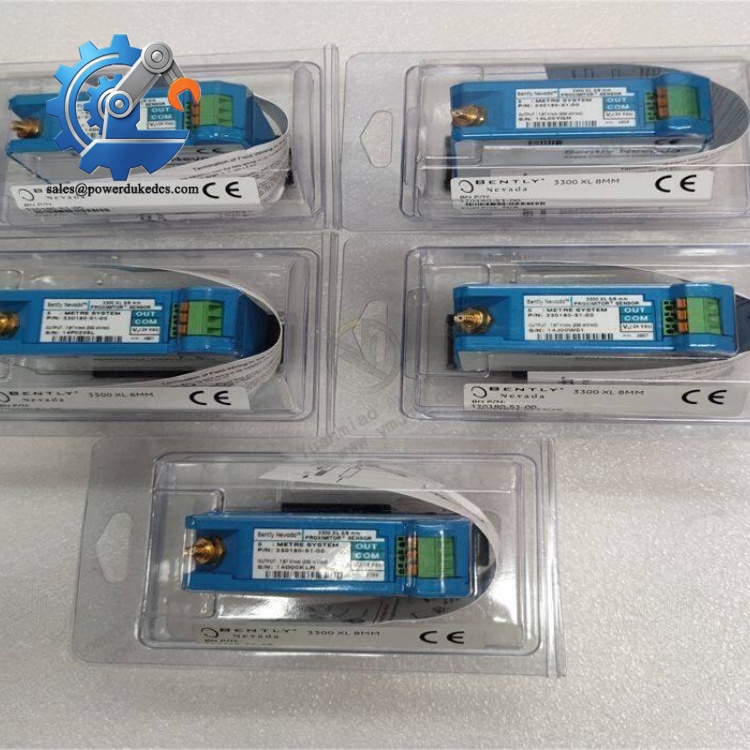

Bently Nevada 330180-51-00

5. Global Compliance & Industry Certifications

Expected regulatory approvals and compliance references for this class of machinery protection hardware may include:

• CE Mark for applicable electromagnetic compatibility requirements.
• UL/cUL Recognition or equivalent North American evaluation where applicable to the installed monitoring assembly.
• ATEX/IECEx hazardous-area approvals when ordered with the appropriate certified configuration.
• Marine approvals such as DNV GL for approved marine machinery monitoring applications.

For rotating equipment installed in hazardous environments, an approved intrinsic safety configuration helps prevent the measurement circuit from becoming a potential ignition source under defined fault conditions.

Verify specific lot certifications with OEM.

6. Long-Term Storage & Asset Preservation Guide

• Store the 330180-51-00 in its original sealed packaging whenever possible. Keep the probe tip protected because scratches or contamination can affect installation gap accuracy.
• Maintain warehouse humidity below 60% RH and avoid condensation exposure. Moisture can degrade cable shielding, connector surfaces, and metallic probe components.
• Do not coil the extension cable tighter than the manufacturer’s recommended bend radius. Permanent cable deformation can alter electrical characteristics (a mistake often discovered during commissioning rather than receiving inspection).

7. Physical Installation Prerequisites

• Install only with the approved Bently Nevada 3300 XL monitoring architecture.
• Verify probe mounting hardware, thread specification, and target material before setting the measurement gap.
• Maintain adequate cabinet clearance around the Proximitor Sensor for wiring access and heat dissipation.
• Use shielded field wiring practices when connecting monitoring circuits.
• Confirm proper grounding and cable routing away from high-current motor or generator conductors.
• Check probe gap voltage during commissioning before placing the machine into operation.

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly reviewed for the Bently Nevada 330180-51-00?
A: Machinery monitoring sensor assemblies are commonly evaluated under electrical instrument or control equipment classifications. Some suppliers reference HS classifications such as 8538/85389091, but the correct code depends on the importing country’s customs rules and the declared function.

Q: Does Country of Origin affect acceptance of this vibration monitoring spare?
A: Yes. COO information supports customs clearance, supplier qualification, and maintenance traceability. Retain the OEM label, serial information, and receiving inspection records.

Q: Should shipping insurance be purchased for this sensor system?
A: Yes. The probe and extension cable assembly can suffer hidden mechanical damage during transit. Use rigid packaging, cable protection, and insurance coverage based on replacement value.

Q: Does the 330180-51-00 include the latest firmware pre-loaded?
A: No. This is a transducer hardware assembly, not a programmable controller module. System compatibility depends on the installed Proximitor configuration and monitoring rack requirements rather than firmware loading.
