ABB 1TGE120021R0110 | MLink PROFIBUS Communication Gateway

Description

• Brand: ABB
• Full Model Number: 1TGE120021R0110
• System/Series Family: MNS iS Motor Control Center / MLink
• One-Sentence Core Function: MLink communication gateway connecting the MNS iS switchgear bus to a supervisory control system through PROFIBUS
• Top 3 Hardcore Specs: Hardware Version 2; PROFIBUS DP-V0/DP-V1; 160 × 140 × 250 mm, approximately 2 kg
• Stock Status: New Surplus / Fully Tested Refurbished — exact hardware ID and communication configuration verified before shipment

Module 3: Commercial-Technical Deep Dive

A communication gateway failure can leave MNS iS motor-control devices physically intact while the DCS loses visibility and control of the switchgear network. The ABB MLink 1TGE120021R0110 is identified in ABB documentation as the PROFIBUS MLink hardware version, with the hardware ID specifically associated with MNS iS versions V6.1 and later. Its function sits between the MNS iS switchgear bus and the supervisory system, translating the internal system data into the selected fieldbus interface. ABB’s MLink documentation lists PROFIBUS DP-V0 and DP-V1 as supported protocol options for this hardware family.

The configuration detail is the real procurement checkpoint. ABB’s hardware-selection table identifies 1TGE120021R0110 specifically as the PROFIBUS MLink ID, while the published product data lists approximately 160 mm × 140 mm × 250 mm dimensions and 2 kg net weight. The interface manual also requires the correct PROFIBUS address and GSD configuration; a powered MLink with an active display can still remain invisible to the DCS if the slave address, GSD file, shielding, termination, or master configuration is wrong. For an installed MNS iS system, preserve the original MLink parameter set before replacement… communications recovery depends on configuration as much as hardware.

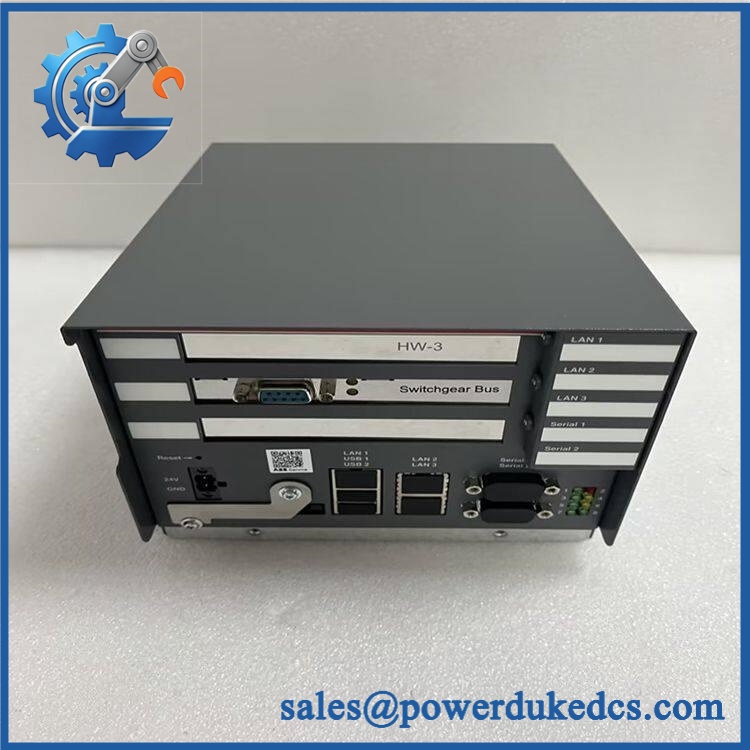

ABB 1TGE120021R0110

Module 4: Compatibility & Installation Traps

Migration/Compatibility

• Replacement status: Configuration-specific MNS iS MLink communication gateway.
• Official hardware ID: 1TGE120021R0110; ABB identifies this ID as the PROFIBUS MLink hardware version.
• MNS iS compatibility: ABB documentation associates this hardware with MNS iS Version 6.1 and later; older installations used the 1TGE1020x9Rxxxx hardware family.
• Protocol: PROFIBUS DP-V0 / DP-V1 for the corresponding MLink configuration.
• Firmware/configuration: Do not assume that replacing the physical MLink preserves fieldbus parameters automatically. Back up the MLink configuration and record the installed MNavigate settings before removal.
• Logic rewrite: Normally not required for a hardware-for-hardware MLink replacement, but the DCS master configuration, slave address, GSD file, and data mapping must be validated after installation.

⚠️ Field Traps (Watch Out)

• PROFIBUS address mismatch: ABB explicitly calls out correct slave-address parameterization and warns against duplicate addressing. A physically healthy replacement can remain offline if the address does not match the DCS configuration.
• Wrong GSD file: The DCS master must use the correct GSD file for the MLink configuration. Loading a generic or incorrect device description can produce failed initialization or incorrect cyclic data mapping.
• Cable, shielding, termination: ABB’s troubleshooting procedure specifically directs technicians to verify cable connection, shielding, and termination when PROFIBUS communication fails.
• Hardware-generation mismatch: Do not automatically substitute the earlier 1TGE1020x9Rxxxx MLink hardware for 1TGE120021R0110. ABB documents the hardware generations against different MNS iS versions.

Module 5: Quality Assurance SOP

Our pre-shipment inspection for an ABB 1TGE120021R0110 MLink focuses on exact hardware generation and PROFIBUS communication:

1. OEM anti-counterfeit visual inspection — verify ABB identification, MLink designation, complete 1TGE120021R0110 hardware ID, serial/label information, connectors, enclosure, and PCB markings.
2. Hardware-generation verification — confirm the unit is the Version 2 PROFIBUS MLink identified by ABB rather than an earlier MLink hardware family.
3. Mechanical inspection — check mounting points, enclosure, ventilation, connectors, cable interfaces, and evidence of impact, corrosion, or overheating.
4. Power-input inspection — verify the actual installed power arrangement against the applicable MNS iS MLink documentation before energization. Do not rely on generic third-party voltage claims.
5. Power-on self-test (POST) — energize the unit in a controlled MNS iS-compatible test environment and check startup behavior, status LEDs, diagnostics, and processor initialization.
6. Local status verification — confirm expected MLink LED activity and startup state. ABB documents specific LED indications for redundancy and communication status.
7. PROFIBUS handshake verification — connect the MLink to a controlled PROFIBUS master and verify correct device startup and cyclic communication.
8. Slave-address verification — confirm the configured address against the test master and ensure no duplicate address exists.
9. GSD/configuration verification — load the correct device description and representative parameter set; confirm the expected data structure is accepted by the master.
10. Switchgear-bus verification — where a compatible MNS iS test environment is available, confirm communication between MLink and MControl through the switchgear bus.
11. Extended communication observation — monitor the network for stable cyclic communication, unexpected dropouts, or repeated primary/secondary changes.
12. Final QC record — document hardware ID, revision, serial number, protocol configuration, PROFIBUS address, test results, LED status, and photographs.
13. ESD and mechanical packaging — protect the module against ESD, connector impact, moisture, and vibration before final shipment.

ABB’s own manuals provide the strongest acceptance criteria for this part: 1TGE120021R0110 = PROFIBUS MLink hardware, MNS iS Version 6.1 and later, with explicit checks for cable integrity, shielding, termination, slave addressing, and GSD configuration.

Module 6: CRO-Driven Buyer FAQ

1. Is ABB 1TGE120021R0110 obsolete, and how do I verify authenticity?

The part belongs to the legacy MNS iS MLink communication architecture. ABB documentation directly identifies 1TGE120021R0110 as the PROFIBUS MLink hardware ID. Authenticity should be verified from the complete hardware ID, ABB labels, revision information, connector arrangement, and physical enclosure.

2. Does 1TGE120021R0110 support PROFIBUS?

Yes. ABB’s MLink manual identifies 1TGE120021R0110 as the PROFIBUS hardware option, with support for PROFIBUS DP-V0 and DP-V1. The manual also identifies this hardware generation for MNS iS Version 6.1 and later.

3. Can the MLink be hot-swapped?

Do not assume energized replacement is permitted. The MLink is part of the MNS iS motor-control communication architecture, and its withdrawal can interrupt switchgear communication and supervisory control. Follow the applicable ABB maintenance procedure and the site’s approved electrical isolation and LOTO procedure before replacement.

4. Why does the replacement MLink power up but fail to communicate with the DCS?

The most common configuration checkpoints are PROFIBUS slave address, correct GSD file, master configuration, cable integrity, shielding, and termination. ABB explicitly lists these items in its troubleshooting guidance.

5. What warranty and technical support should I expect?

Warranty duration should be stated on the quotation for the exact physical unit supplied. Technical support should cover hardware-ID verification, MNS iS generation matching, PROFIBUS configuration checks, slave-address verification, GSD validation, and documented pre-shipment communication testing. It should not substitute for DCS engineering authority, PROFIBUS network commissioning, or site electrical-safety procedures.
