ABB 3BHE021951R0124 | ACS5000 IPS Dual Voltage Subprint

Description

• Brand: ABB
• Full Model Number: 3BHE021951R0124
• System/Series Family: ABB ACS5000 Medium-Voltage AC Drive
• Core Function: Dual-voltage isolated power supply subprint for ACS5000 drive power electronics
• ABB Type Designation: KV C758 A124:IPS DUAL
• Product Description: KV C758 A124:IPS DUAL; VOLTAGE SUBPRINT
• Application: ACS5000 water-cooled medium-voltage drive
• Product Net Weight: 0.26 kg
• Country of Origin: Switzerland
• Stock Status: New Surplus / Fully Tested Refurbished — verify exact condition and test evidence before shipment

ABB product data identifies 3BHE021951R0124 as KV C758 A124:IPS DUAL; VOLTAGE SUBPRINT, with a listed net weight of 0.26 kg. The same ABB catalog data places it in the ACS5000 water-cooled medium-voltage drive spare-parts structure.

Module 3: Commercial-Technical Deep Dive

A failure in a medium-voltage drive’s internal power-supply circuitry can stop the entire conversion section even when the control electronics remain operational. The ABB 3BHE021951R0124 is specifically identified as the KV C758 A124:IPS DUAL voltage subprint, rather than a general-purpose controller or I/O module. ABB’s catalog classifies it as an ACS5000 spare part, with the product listed under medium-voltage AC drives and specifically associated with the ACS5000 water-cooled platform. That makes exact part-number matching essential; a visually similar power subassembly may have a different electrical role.

The direct ROI is restoration of the existing drive power architecture without redesigning the internal supply path. The official catalog description is deliberately narrow—“IPS DUAL; VOLTAGE SUBPRINT”—which is useful because it avoids confusing this board with a complete drive power module. Public sources do not provide a sufficiently reliable universal voltage/current specification for every installation, so those figures should not be invented or copied from unrelated KVC758 assemblies. —For procurement, the critical checks are the exact ABB ID, the KVC758 A124 designation, the installed configuration, and the board revision.

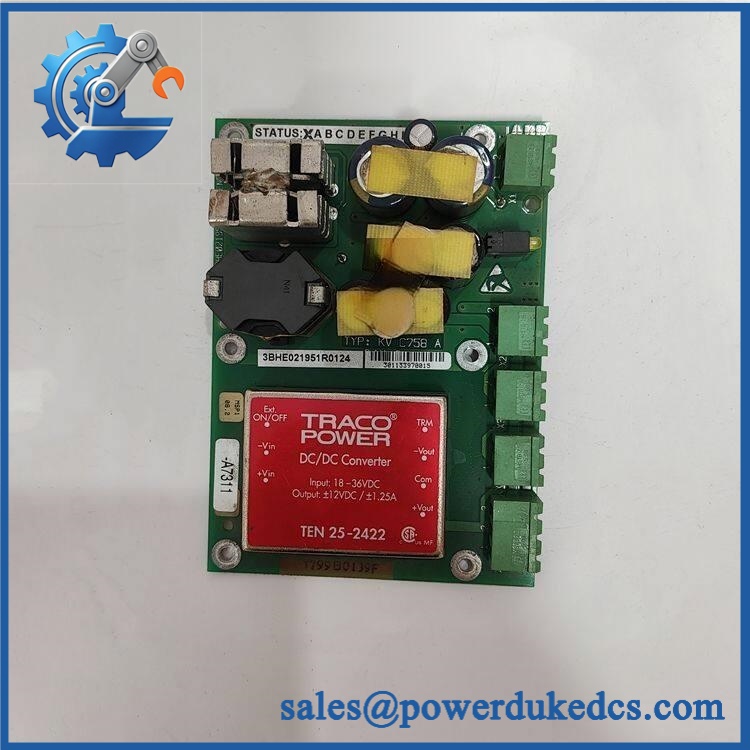

ABB 3BHE021951R0124

Module 4: Compatibility & Installation Traps

Migration/Compatibility

For an installation that calls for 3BHE021951R0124, the preferred approach is a like-for-like voltage-subprint replacement. ABB’s own catalog identifies the part as KV C758 A124:IPS DUAL, so compatibility should be established from the complete product ID and the drive’s electrical documentation rather than from board appearance.

A firmware flash or PLC logic rewrite is not the primary issue because this is a power-supply subprint rather than a programmable CPU. The important verification points are the correct drive model, subassembly position, mating connectors, revision, and electrical ratings specified for the installed power section.

⚠️ Field Traps (Watch Out)

• Voltage-rating assumptions: Do not infer the actual input/output voltage range from the phrase “dual voltage” alone. ABB’s catalog identifies the board function but does not, in the public listing, provide a complete circuit-level rating table. Use the applicable electrical drawing and board documentation before energizing.
• Confusing subprint with a complete power module: 3BHE021951R0124 is a voltage subprint, not the entire power converter assembly. Ordering a larger related module can produce an apparent part-number match at the family level while still being mechanically or electrically incorrect.
• Stored energy and MV equipment: equipment can contain hazardous voltage and stored energy after shutdown. Follow the manufacturer’s discharge, isolation, and lockout procedure before accessing the power section.

Module 5: Quality Assurance SOP

For surplus ABB power-electronics inventory, the pre-shipment process should include the following controlled checks:

1. OEM anti-counterfeit visual inspection — verify ABB markings, full part number, type designation, PCB layout, connectors, component population, labels, and signs of unauthorized rework.
2. Part-number reconciliation — record and photograph 3BHE021951R0124 and the KV C758 :IPS DUAL designation where visible.
3. PCB condition inspection — examine connectors, solder joints, mounting points, insulation surfaces, capacitors, transformers, and the PCB substrate for corrosion, cracks, contamination, or impact damage.
4. Power-on self-test (POST) — where an approved low-voltage test fixture is available, verify expected startup behavior and applicable status indications without exposing the board to an uncontrolled MV test.
5. Electrical verification — measure applicable low-voltage supply and continuity points against the authorized service procedure; do not improvise high-voltage test conditions.
6. Interface verification — confirm connector pinout and mating interfaces against the applicable cabinet or drive drawing.
7. Insulation and isolation checks — perform only the tests specified by the approved ABB maintenance procedure and test fixture, documenting the measured results.
8. Thermal/stability observation — operate the subprint under the approved test conditions and watch for abnormal temperature rise, intermittent behavior, or supply instability.
9. Final QC release — retain identification photographs, measured test values, revision information, and packaging inspection records with the shipment file.

For an internal power-supply subprint, functional QA must stay within a controlled test methodology. Applying arbitrary bench voltage simply to prove the board “works” is not an acceptable substitute for an ABB-approved test procedure.

Module 6: CRO-Driven Buyer FAQ

1. What exactly is ABB 3BHE021951R0124?

ABB identifies 3BHE021951R0124 as KV :IPS DUAL; VOLTAGE SUBPRINT. It is cataloged as an spare part and is associated with the water-cooled medium-voltage drive platform.

2. Is 3BHE021951R0124 a complete power module?

No. It is identified as a voltage subprint, meaning it is a subassembly within the larger drive power architecture. The complete power section and its associated hardware should not be represented by this part number alone.

3. Is it a direct replacement for any KVC758 board?

No. The KV :IPS DUAL designation needs to match the installed configuration. Other KVC758 variants can have different functions or electrical characteristics. Match the complete ABB product ID, revision, and drive documentation before installation.

4. Can the 3BHE021951R0124 be hot-swapped?

Do not assume hot-swap capability. This component belongs to a medium-voltage drive power architecture where hazardous voltage and stored energy may remain after normal shutdown. Use the ABB-approved isolation, discharge, and maintenance procedure before removal.

5. What warranty and technical support should I expect?

The quotation should explicitly state whether the unit is new surplus, unused, or tested refurbished and identify the warranty period. Technical support should cover exact-part identification, compatibility review, available inspection/test records, and installation documentation. Drive commissioning, power-stage troubleshooting, and site-specific electrical work should be treated as separate engineering services.
