ABB IMMFP01 | Bailey Processor Module Genuine OEM Fast Shipping

Description

Module 2: The 10-Second Procurement Snapshot

• Brand: ABB Bailey
• Full Model Number: IMMFP01
• Product Type: Multi-Function Processor Module
• Series: INFI 90 / Network 90
• Lifecycle Status: Legacy / stock-dependent
• Core Function: Process control, logic execution, data acquisition
• Top 3 Technical Specs: 32-bit CPU; 16 MHz; +5 VDC @ 2 A
• Memory: 512 KB ROM; 256 KB RAM; 64 KB NVRAM
• Serial Communication: 2 × RS-232-C or 1 × RS-232-C + 1 × RS-485
• Maximum Serial Rate: Up to 19.2 kbaud
• Stock & Condition: New surplus / tested used, subject to availability

Module 3: Supply Chain & Technical Deep Dive

When an older INFI 90 control system loses its processor module, the problem is rarely solved by choosing a newer generic CPU. The existing control database, function-code execution, I/O architecture, and module-bus arrangement all matter. ABB Bailey IMMFP01 is the Multi-Function Processor used in INFI 90 systems for analog, sequential, batch, and advanced control functions. It also handles data acquisition and peer-to-peer communication.

The economics are straightforward: keeping one tested legacy processor as buffer stock can be cheaper than extending a plant outage while searching for an exact replacement. The documented hardware uses a 32-bit processor at 16 MHz, with 512 KB ROM, 256 KB RAM, and 64 KB NVRAM. Power demand is specified as +5 VDC at 2 A, 10 W typical. For an aging DCS, those fixed specifications are more useful to procurement than vague performance claims.

Module 4: Migration, Compatibility & Field Traps

Replacement Matrix

The OEM manual specifically warns that system compatibility must be evaluated before installation. Early Network 90 systems could place -30 VDC on pins 3 and 4, while INFI 90 uses pin 4 for the Controlway bus. Jumper J5 therefore matters when older equipment is involved.

⚠️ Field Trap 1: Legacy Backplane Voltage

Do not assume every older Network 90 rack is wired the same way.

Check the MMU configuration before insertion. An incorrect backplane arrangement can damage the module or prevent proper communication. The ABB manual gives specific guidance on J5 for systems containing modules that require -30 VDC.

⚠️ Field Trap 2: ESD and Configuration Loss

This is an exposed circuit board, not a plug-and-forget appliance.

Use a grounded ESD wrist strap and static-dissipating work surface. Keep the module inside its shielding bag until installation, and handle the board by its edges.

Before removal, record the slot position, cable connections, module LEDs, and configuration information. A five-minute photo session can prevent a much longer commissioning problem.

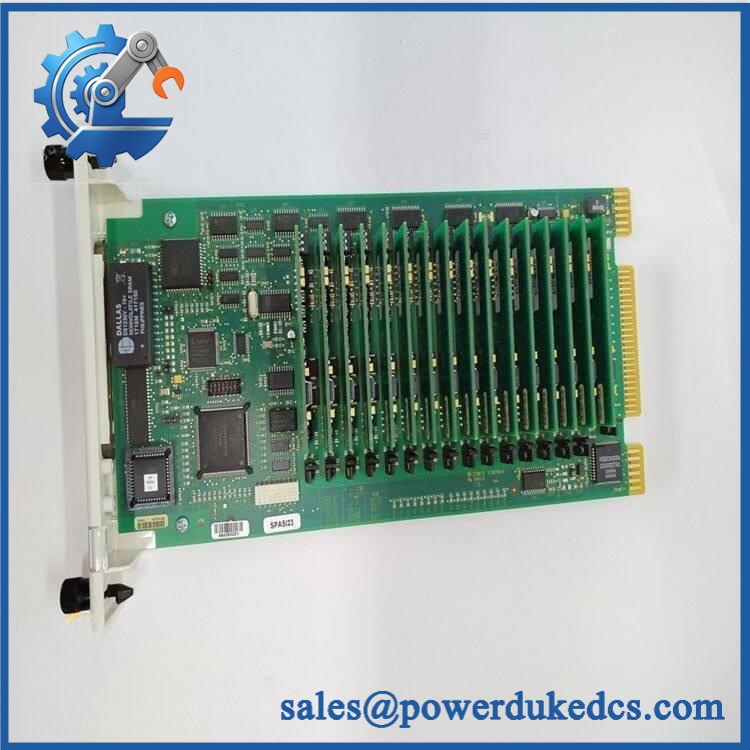

ABB IMMFP01

Module 5: Quality Assurance & Testing SOP

1. Incoming Identity Inspection

• Verify ABB Bailey identification.
• Confirm IMMFP01 marking.
• Record serial number and board revision where available.
• Compare faceplate and PCB markings.
• Inspect the card edge connector.
• Check for corrosion, oxidation, cracks, or burn marks.
• Look for previous repair or component replacement.
• Perform OEM marking and anti-counterfeit visual inspection.

2. Electrical Inspection

Before applying power:

• Inspect the PCB for contamination.
• Check connector condition.
• Verify grounding provisions.
• Check for obvious short circuits.
• Confirm the applicable MMU voltage arrangement.
• Record the incoming inspection result.

The published specification calls for +5 VDC at 2 A, with typical power consumption of 10 W.

3. Power-On Self-Test

On a compatible INFI 90 test rack:

1. Install the processor in the correct MMU slot.
2. Apply the specified system power.
3. Observe the front-panel LED status.
4. Check processor startup.
5. Verify Controlway communication.
6. Check for module error indications.

A test rack should reproduce the intended system architecture rather than simply applying bench power.

4. Communication and Control Test

Test the documented interfaces:

• RS-232-C communication
• RS-485 communication where applicable
• Module-bus communication
• Redundant processor link where applicable
• Control logic execution
• Data acquisition
• Peer-to-peer communication

The documented serial interface supports rates up to 19.2 kbaud, while the redundant link is specified at 1 Mbaud.

5. Extended Functional Test

Where the test setup permits:

• Load an approved test configuration.
• Execute representative function codes.
• Verify control calculations.
• Check I/O data exchange.
• Monitor processor status.
• Run an extended stability test.
• Record results in the Test Report.

6. Final QA and Packaging

• Record part number and revision.
• Record serial number.
• Save test measurements.
• Photograph the tested unit.
• Apply QC status.
• Place the board in an ESD shielding bag.
• Add impact protection.
• Seal the shipping carton.

For critical spare orders, test photos and available Test Report records can be supplied before dispatch.

Module 6: Procurement-Driven FAQ

1. Is ABB IMMFP01 genuinely in stock, and what is the overnight shipping cutoff?

The part is still listed by several industrial spare-parts suppliers, although inventory status varies by source. One current listing identifies the unit as in stock, while another shows it as sold out.

For an urgent PO, confirm physical quantity, condition, warehouse location, and carrier cutoff before payment. Do not rely on a generic online stock indicator.

2. How do you verify the condition of an obsolete IMMFP01?

The inspection should cover the complete part number, faceplate, PCB, connectors, serial information, and visible component condition.

For tested stock, the unit should also undergo power-on and communication checks in a compatible INFI 90 test environment. New surplus and tested used units should be quoted as separate conditions.

3. What warranty applies if the processor fails after installation?

Warranty terms depend on the seller and unit condition. Some current listings advertise 12-month warranty coverage, but that is a supplier warranty unless an OEM warranty is explicitly documented.

Keep the original labels and packaging. If a fault appears, capture the LED status and system diagnostic information before removing the module.

4. Are there firmware or configuration issues my engineers should check?

Yes. The larger concern is not simply firmware version.

Check the INFI 90 system generation, MMU wiring, Controlway arrangement, module configuration, and J5 setting before replacement. The ABB installation manual specifically warns about compatibility with earlier Network 90 backplanes and -30 VDC arrangements.

5. Can I replace with another MFP module?

Do not approve a cross-model replacement from the model name alone.

, IMMFP02, and IMMFP03 belong to the same general MFP family, but system configuration and firmware requirements must be checked. The safest procurement route is to match the installed module reference and confirm the system documentation before approving a substitution.
