ABB PM863K01 3BSE088381R1 | ABB Controller Module for Industrial Automation

• Model: ABB PM863K01
• Order Number: 3BSE088381R1
• Brand: ABB
• Series: AC 800M
• Part Type: Processor Unit / Controller Module
• Core Function: Executes the control application and manages communication with I/O and other AC 800M system components.
• Key Specs: 800 MHz processor, 64 MB RAM, 64 MB flash memory, Ethernet service interface, and dual redundant controller capability when used in an appropriate AC 800M configuration.
• System Role: Central controller component for ABB System 800xA and AC 800M automation architectures.

Product Introduction

In an AC 800M control cabinet, the processor unit is the component that carries the actual control application. A processor fault can therefore stop or degrade an entire automation node even when the connected I/O modules remain operational.

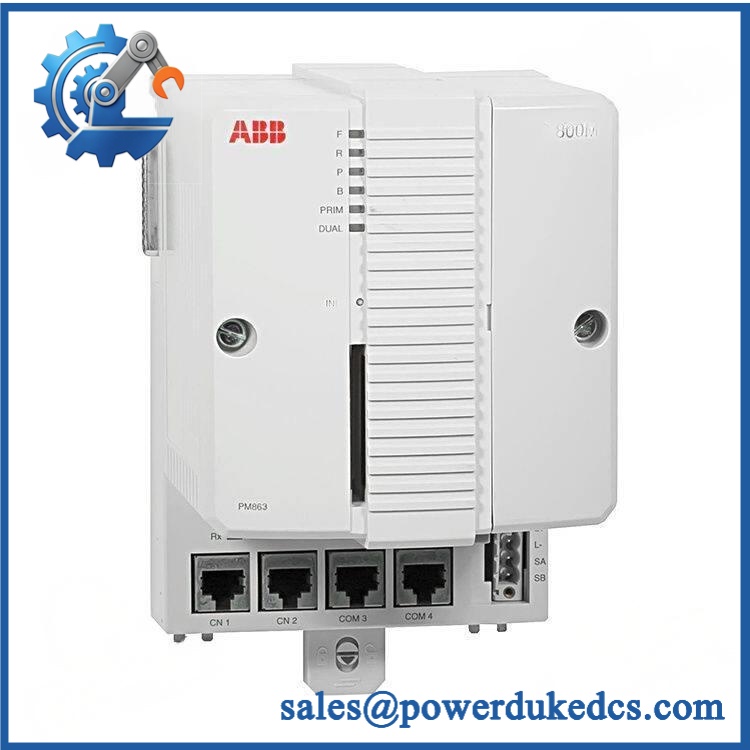

ABB PM863K01 3BSE088381R1 is an AC 800M Processor Unit designed for ABB industrial automation applications. The PM863 family provides controller processing for AC 800M systems and is used with ABB’s modular I/O and communication architecture.

The PM863K01 is particularly relevant to installations requiring a higher-performance AC 800M controller (especially where application size and communication requirements exceed the capabilities of lower-end controller variants). It is also suitable for legacy-system maintenance and controller replacement projects where the existing AC 800M architecture is being retained.

Core Technical Specifications

ABB PM863K01 3BSE088381R1

The PM863K01 is an AC 800M processor rather than an S800 I/O module. That distinction is important when preparing a replacement order because the processor interacts with the controller configuration, application software, firmware, and communication architecture.

Application Scenarios & Pain Points

A System 800xA process-control installation may use the as the central controller for distributed S800 I/O. If the processor fails, replacing only an I/O module will not resolve the controller fault.

For water and wastewater plants, the AC 800M platform can coordinate pumping, valve control, level measurement, and process sequencing. A controller replacement may need to preserve the existing application and communication configuration rather than simply restoring power.

In power-generation applications, controller redundancy can be important for continuous operation. A replacement should therefore be checked against the redundancy architecture before installation.

Within oil and gas facilities, cabinet temperatures can reach 50°C or higher. The controller’s actual installation environment should remain within its specified operating range, with adequate cabinet ventilation and heat dissipation.

For legacy System 800xA installations, keeping a correctly configured processor spare can reduce recovery time when an AC 800M controller develops a hardware fault.

Common Error Codes & Diagnostic Symptoms

• Fault LED / Controller Fault → Diagnosis: The processor may have detected an internal hardware, firmware, memory, or configuration problem. → Action: Review controller diagnostics and event logs; if the processor is confirmed defective, replace the .
• Controller Not Communicating → Diagnosis: Loss of Ethernet communication can result from controller hardware failure, network configuration problems, cable faults, or an incorrect firmware/application configuration. → Action: Check controller LEDs, network connections, IP configuration, and Control Builder diagnostics before replacing the processor.
• Application Not Running / CPU in Stop State → Diagnosis: The controller may have entered a stop or fault condition because of application, configuration, memory, or hardware problems. → Action: Capture diagnostics first, verify the application and firmware compatibility, then replace the processor if hardware failure is established.

Cross-Reference & Lifecycle Migration

Related PM863 References

The related controller numbers above should not be treated as automatic drop-in replacements. AC 800M processor variants can differ in performance, memory, firmware support, redundancy behavior, and application compatibility.

Firmware Considerations

A processor replacement may require the installed AC 800M firmware to be compatible with the existing Control Builder M project and System 800xA environment. Before commissioning a replacement, record:

• Existing controller firmware version
• Control Builder M version
• System 800xA version
• Application/project version
• Controller hardware revision
• Redundancy configuration
• Communication configuration

Do not automatically flash the newest firmware onto a legacy controller. The replacement firmware should match the supported software and system configuration.

Lifecycle

The AC 800M platform remains an established ABB automation platform, but individual processor revisions can have different lifecycle statuses. For , the exact status should be checked against the current ABB lifecycle database for the specific order number 3BSE088381R1.

For plants operating multiple PM863 controllers, maintaining a tested spare processor is advisable because controller failure can affect the complete control node rather than a single field I/O point.

Field Engineer’s Tech Notes

1. Back up the controller configuration before touching the hardware.
A processor replacement is not equivalent to replacing a passive I/O module. Make sure the latest Control Builder project, controller configuration, firmware information, and communication parameters are available before removing the original processor.

2. Check the firmware/software combination before commissioning.
A processor can power up correctly and still fail to operate with the existing project if the firmware and Control Builder environment are incompatible. (This is one of the first things to check when a replacement controller appears healthy but will not accept or execute the application.)

Strict QA & Testing SOP

1. Inbound identification — Verify ABB branding, model designation, and 3BSE088381R1 order number.
2. Nameplate inspection — Record serial number, hardware revision, manufacturing information, and visible firmware information.
3. Physical inspection — Check housing, connectors, mounting mechanism, terminal interfaces, and cooling openings.
4. Connector inspection — Examine Ethernet/service interfaces and controller connections for bent contacts or physical damage.
5. Power verification — Apply the specified DC supply using an approved test setup and verify normal startup behavior.
6. LED diagnostic test — Record startup LED sequence and confirm that no unexpected fault indication remains.
7. Communication test — Verify service/network communication using a compatible AC 800M test environment.
8. Controller recognition — Confirm that the engineering environment recognizes the processor correctly.
9. Application test — Where an appropriate test project is available, verify application download, execution, diagnostics, and communication.
10. Redundancy test — For redundancy applications, verify controller synchronization and switchover behavior using the applicable system procedure.
11. Final inspection — Record test results and capture photographs of the tested unit.
12. ESD packaging — Package the processor in antistatic material with sufficient mechanical protection.

Test videos can be provided when available, including startup, LED status, controller recognition, and functional test evidence.

Buyer’s FAQ

Q1: Can I hot-swap the ?
A: Do not assume it can be hot-swapped in a live control system. Processor replacement procedures depend on the AC 800M architecture and whether controller redundancy is implemented. Follow the applicable ABB procedure.

Q2: Is the same as 3BSE088381R1?
A: Yes. is the model designation and 3BSE088381R1 is the ABB order number associated with this version.

Q3: Can PM864K01 or PM866K01 directly replace ?
A: Not automatically. These are related AC 800M processor families, but hardware capability, firmware compatibility, application configuration, and redundancy requirements must be checked before treating another processor as a replacement.

Q4: Does replacing the processor require firmware flashing?
A: It may. The replacement controller must have firmware compatible with the existing AC 800M project and Control Builder/System 800xA environment. Verify the installed software and firmware versions before commissioning.

Q5: How can I verify a New Original ABB ?
A: Check the ABB label, complete 3BSE088381R1 order number, serial/traceability information, packaging, and physical condition. For a high-value controller, request inspection photographs and functional test evidence before shipment.

Q6: What warranty should I expect?
A: Warranty depends on the supplier and the unit’s condition. For a New Original, New Surplus, or refurbished , confirm the exact warranty period and functional coverage in the quotation before purchase.
