- Brand: ALSTOM
- Full Model Number: CMU 42015-115-00
- Lifecycle Status: Active documented deployment; legacy-platform hardware
- Core Function: CMU data/control hardware for IPS-200/CVC-200T interlocking systems
- Top 3 Technical Specs: IPS-200/CVC-200T platform; CMU hardware role; system version V1.020.001.00 documented
- Stock & Condition: Lot-specific inventory; New Original / New Surplus / Used condition by unit; pre-shipment QA available
Supply Chain & Technical Deep Dive
A failed ALSTOM CMU can become a sourcing problem when an installed signaling cabinet depends on a legacy hardware baseline. The CMU 42015-115-00 is specifically listed as CMU hardware within an IPS-200 interlocking computer configuration using the CVC-200T safety platform. A 2026 CRCC configuration lists system version V1.020.001.00 and pairs the CMU 42015-115-00 with MLU 42015-106-00. This makes the exact part number important during emergency replacement work; substituting a visually similar controller can create unnecessary validation work.
The main purchasing advantage is preservation of the installed architecture rather than forced cabinet redesign. The documented 2026 configuration uses software versions V3.001.013.00 and V1.020.110.00 with the CMU and MLU hardware set. Earlier certified documentation also records CMU 42015-115-00 in the IPS-200/CVC-200T configuration, showing continued use across successive configuration baselines. (Secondary commercial listings publish conflicting voltage, dimensions, and I/O figures for this part, so those values should not be used for engineering acceptance without system documentation.)
Migration, Compatibility & Field Traps
| Replacement Criterion | Engineering Guidance |
|---|---|
| Drop-in Replacement | Yes, when the replacement matches CMU 42015-115-00 and the approved rack and software configuration |
| Software Compatible | Configuration-dependent; verify the installed IPS-200/CVC-200T software baseline before commissioning |
| Firmware Flash Required | Do not assume a firmware flash is required solely from the part number |
| Hardware Modification | Not expected for an exact hardware replacement; modification requires separate engineering approval |
| Primary Application | IPS-200 interlocking computer with CVC-200T safety platform |
Field Trap: Configuration Mismatch
The same hardware identifier can appear across different system revisions. Compare the installed software baseline against the approved project configuration. The 2026 certified record lists V3.001.013.00 and V1.020.110.00.
Field Trap: Backplane and ESD Handling
Isolate power before removal. Use an approved ESD workstation and grounding procedure. Inspect the board edge connector and VME interface for bent contacts, oxidation, contamination, or mechanical damage before insertion. Never force a module into the rack.
Quality Assurance & Testing SOP
Each available CMU 42015-115-00 should pass a documented inspection sequence before shipment:
- Part-number verification: Confirm ALSTOM markings, CMU designation, 42015-115-00 identifier, revision marking, and serial information.
- OEM anti-counterfeit visual inspection: Check PCB construction, labeling quality, connector finish, component markings, and unauthorized rework evidence.
- Mechanical inspection: Examine PCB edges, connectors, mounting points, heatsinks, and housing for cracks or deformation.
- ESD-safe electrical inspection: Use controlled grounding and handling procedures throughout testing.
- Power-on self-test (POST): Apply the approved test-rig supply and check ERR/RUN LED behavior against the applicable system test procedure.
- VME interface check: Verify connector engagement, bus access, and stable module operation in the compatible test fixture.
- Communication test: Confirm expected module communication with the associated controller or test fixture.
- I/O load testing: Exercise the associated I/O path where supported by the rack test fixture and verify stable signal behavior.
- Burn-in observation: Monitor startup behavior, alarms, thermal response, and intermittent faults during an extended functional test.
- Final inspection: Record serial number, test status, visible condition, and packaging condition before dispatch.

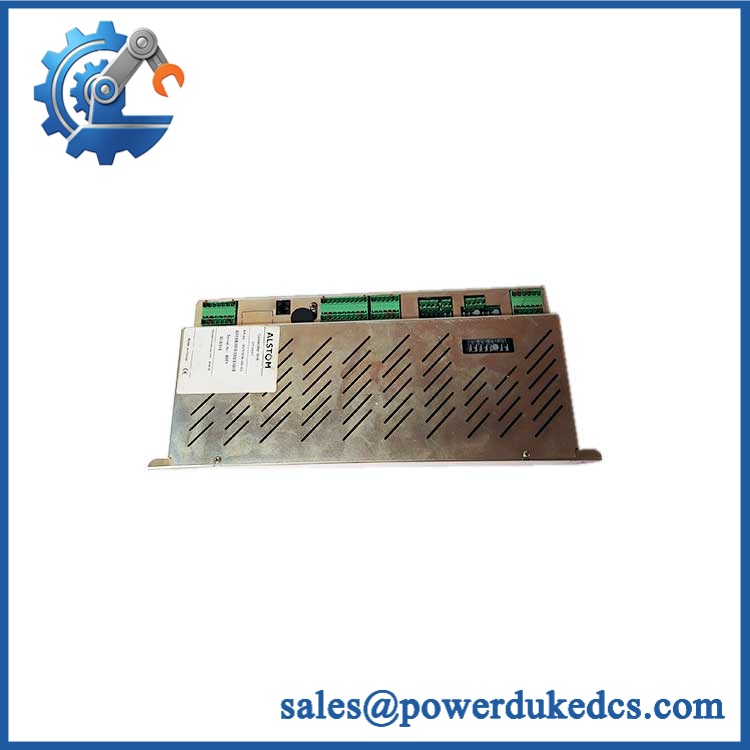

ALSTOM CMU 42015-115-00
Procurement-Driven FAQ
Is the ALSTOM CMU 42015-115-00 genuinely available, and what is the overnight shipping cutoff?
Availability is handled by individual inventory lot. The exact unit condition and warehouse location should be confirmed before the purchase order. Overnight eligibility depends on the confirmed stock location, destination, and carrier cutoff for that business day.
How is the condition of an obsolete or surplus CMU guaranteed?
Each unit should be identified by part number and serial marking, then inspected and electrically tested before shipment. New Original, New Surplus, and Used condition should be stated separately on the quotation rather than combined under one listing.
What warranty and return terms apply?
The commercial quotation should state the warranty period, covered failure conditions, RMA procedure, and return window for the specific unit. Serial-number verification and pre-shipment test records provide the control point for defective-unit claims.
Are there firmware compatibility issues?
Yes, compatibility depends on the installed / configuration. The 2026 certified configuration documents V3.001.013.00 and V1.020.110.00, so engineers should compare their approved software baseline before replacement.
Is CMU 42015-115-00 a generic industrial controller?
It should be treated as system-specific hardware. Current documentation places it inside an / interlocking configuration, while secondary catalogs also associate the part with VME-based control architecture. Confirm the host rack, software baseline, and full hardware identification before approving substitution.
