Description
- Brand: ALSTOM
- Full Model Number: AS111-1
- System Family: ALSPA CE2000 / CE3000 control systems
- Lifecycle Status: Legacy / discontinued
- Core Function: 8-channel analog output interface
- Top 3 Technical Specs: 8 analog outputs; 0-20 mA or 4-20 mA; 48 VDC system power
- Stock & Condition: New surplus; exact hardware identification verified before shipment
Supply Chain & Technical Deep Dive
A failed analog output card can leave valves, actuators, and other final control elements without commanded signals. ALSTOM AS111-1 is an 8-channel analog output module associated with the ALSPA CE2000 and CE3000 control architecture. System documentation identifies AS111-1 as an eight-output module supporting 0-20 mA or 4-20 mA signals and 48 VDC power. The same documentation distinguishes AS111-2 as the 24 VDC version, making the suffix critical during replacement.
For maintenance teams supporting an installed CE2000 cabinet, an exact AS111-1 match can avoid unnecessary changes to field wiring and control configuration. Eight analog channels allow one module to retain the original point density. The 48 VDC supply specification also provides a direct screening criterion before purchase. —Do not substitute an AS111-2 solely because the model numbers look similar; its documented supply arrangement is different.
Migration Compatibility & Field Traps
Replacement Matrix
| Purchase Check | Assessment |
|---|---|
| Drop-in Replacement | Yes, when the installed card is AS111-1 with matching hardware configuration |
| Software Compatible | Generally within the original CE2000 / CE3000 configuration; verify I/O database and channel assignment |
| Hardware Modification | Normally not required for an exact AS111-1 replacement |
| Output Channels | 8 analog outputs |
| Output Range | 0-20 mA or 4-20 mA |
| Module Supply | 48 VDC |
| Engineering Approval | Required before commissioning |
Field Traps
versus AS111-2: This is the primary procurement trap. Published CE2000/CE3000 documentation identifies as the 48 VDC version and AS111-2 as the 24 VDC version. Verify the original card marking and cabinet supply before installation.
Output range mismatch: Confirm whether each field loop is configured for 0-20 mA or 4-20 mA. The replacement card should match the existing control database and field-device requirements.
Loop loading: Before energizing a replacement channel, verify the connected actuator or positioner load. Check polarity, common return wiring, and any external loop power arrangement.
ESD exposure: Treat the plug-in electronics as ESD-sensitive during removal and installation. Use a grounded wrist strap and suitable antistatic packaging.

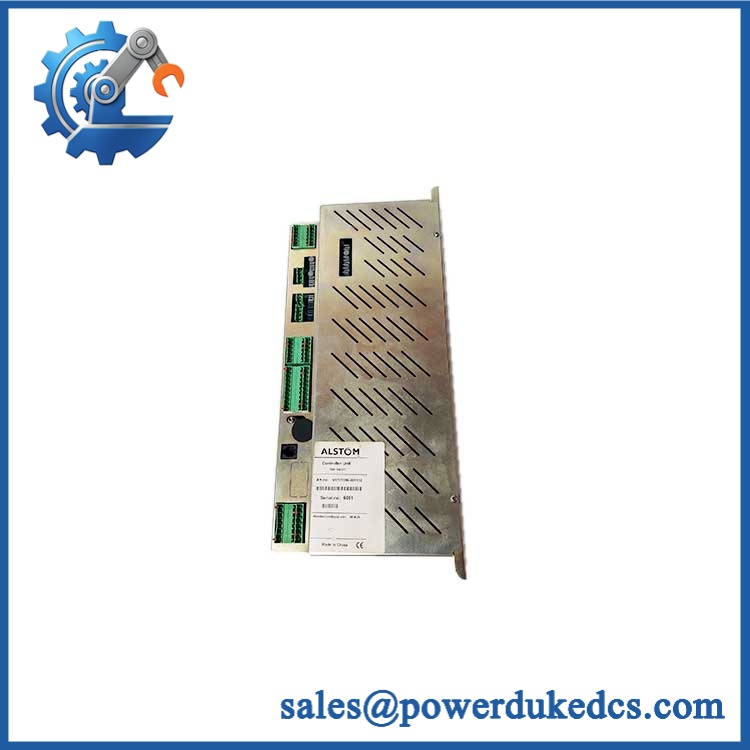

ALSTOM AS111-1
Quality Assurance & Testing SOP
The release process begins with an OEM anti-counterfeit visual inspection. Technicians verify the ALSTOM marking, complete designation, serial or revision information, PCB identification, connector arrangement, board condition, and manufacturing labels. Any identification discrepancy stops the shipment process.
A controlled electrical inspection follows. The module is checked for contamination, corrosion, damaged connectors, cracked board material, loose components, and evidence of unauthorized rework. The applicable 48 VDC supply requirement is confirmed before controlled power application.
During powered testing, technicians perform a power-on self-test (POST) where supported by the installed rack and inspect all available diagnostic indicators, including ERR/RUN LEDs or equivalent status indications. Startup behavior, supply stability, and abnormal current draw are documented.
Each available analog output channel should then undergo I/O load testing. Test equipment generates representative command values while the output current is measured under controlled load conditions. Both 0-20 mA and 4-20 mA operating configurations should be checked when the module and test setup permit. Channel isolation, output stability, terminal continuity, and response to representative load conditions are recorded.
Final inspection compares the tested hardware against the purchase order. The exact model number, configuration, physical condition, and test result must agree before shipment release.
Procurement-Driven FAQ
Is ALSTOM genuinely in stock, and what is the cutoff for overnight shipping?
Availability should be confirmed against physical inventory before order release. Legacy stock can vary by condition and hardware revision. Overnight dispatch depends on destination, carrier pickup time, and order release timing.
How do you verify the condition of an obsolete or surplus ?
The inspection process includes part-number verification, OEM marking inspection, connector examination, physical inspection, controlled power testing, diagnostic checks, and analog output testing where the available test setup supports it.
What warranty and return coverage applies?
Warranty coverage follows the terms stated in the quotation and sales documentation. A suspected defective unit should be reported with the order information and relevant test evidence. Damage caused by incorrect wiring, installation errors, modification, or unsuitable storage is normally reviewed separately.
Are there firmware compatibility issues with ?
is an I/O module, so compatibility is primarily tied to the host CE2000 or CE3000 configuration, rack arrangement, I/O database, and module hardware revision. Engineering should verify the existing control configuration before replacement.
Can replace AS111-2 directly?
Do not treat the two suffixes as interchangeable. Available /CE3000 system documentation identifies as 48 VDC and AS111-2 as 24 VDC. Confirm the installed module designation and rack supply before approving a substitution.
