Bently Nevada 3500/15 129478-01 | High Voltage DC PIM Module

• Brand: Bently Nevada
• Full Model Number: 3500/15 129478-01
• Lifecycle Status: Legacy / Obsolescence-risk
• Core Function: High-voltage DC Power Input Module for Bently Nevada 3500/15 power supply assemblies
• Top 3 Technical Specs: 88–140 VDC input | Legacy high-voltage DC PIM | 3500/15 left-side power-supply slot
• Stock & Condition: Physical stock confirmation required | New Surplus / Tested Refurbished by lot | Emergency dispatch subject to inventory and carrier cutoff

Module 3: Obsolescence & Supply Chain Deep Dive

A failed power-input module can remove the DC source from an otherwise serviceable 3500 rack, turning a relatively small component failure into a machinery-monitoring outage. Bently Nevada 129478-01 is identified in the 3500/15 documentation as the Legacy High Voltage DC Power Input Module (PIM). The specified input range is 88 to 140 VDC, and the module feeds the associated 3500/15 power-supply assembly that converts incoming power into the operating voltages required by the rack. Bently Nevada documentation also distinguishes 129478-01 from the separate 129486-01 Legacy High Voltage DC Power Supply Module.

For an installed 3500 system using legacy high-voltage DC power, replacing the PIM can be much less expensive than redesigning the rack power architecture. The existing rack, monitoring modules, configuration, field wiring, and protection setup can remain in place when the exact PIM and power-supply pairing are preserved. The 3500/15 documentation states that the rack can use one or two power supplies, and with two installed, the lower unit serves as primary while the upper unit provides backup power. (Legacy DC hardware can take longer to source, making verified surplus stock useful when an outage window is already scheduled.) One current parts listing also identifies 129478-01 as a legacy high-voltage DC PIM with a 2.5 A maximum full-rack current reference.

Module 4: Compatibility & Replacement Matrix

Bently Nevada’s 3500/15 documentation explicitly lists 129478-01 as the Legacy High Voltage DC Power Input Module and 129486-01 as the corresponding Legacy High Voltage DC Power Supply Module.

Field Traps — Watch Out

• Wrong voltage class: Do not substitute the low-voltage DC PIM 133300-01 or an AC PIM for 129478-01. The 129478-01 is the 88–140 VDC high-voltage DC input version.
• PIM/power-supply pairing: Verify the installed power-supply module before connecting incoming DC. Current parts references specify 129478-01 for the legacy high-voltage DC input path and identify 129486-01 as its corresponding legacy high-voltage DC power supply.

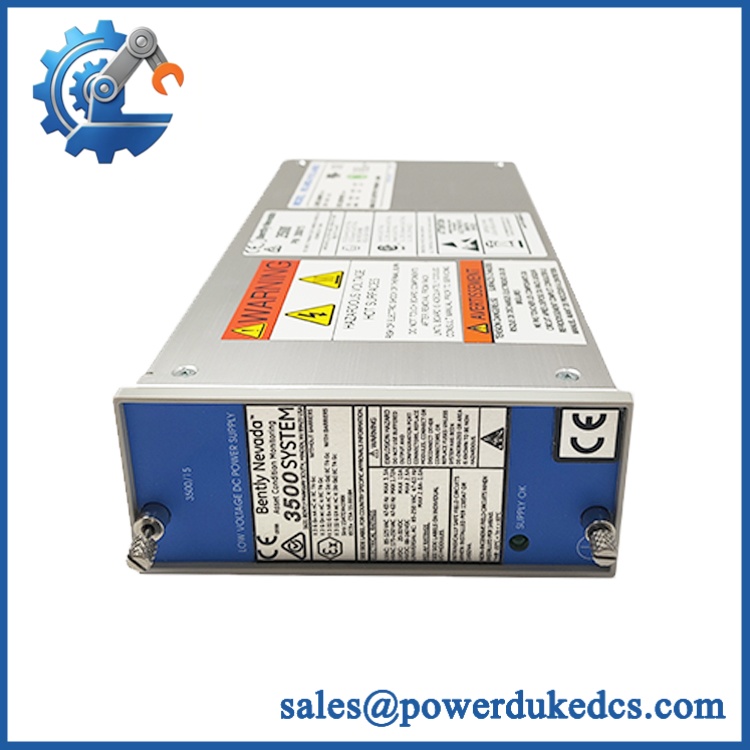

Bently Nevada 3500/15 129478-01

Module 5: Quality Assurance & Testing SOP

A strict pre-shipment inspection for Bently Nevada 3500/15 129478-01 should include:

• Identity verification: Confirm the complete 129478-01 part number, module designation, serial information, labels, connector arrangement, and hardware configuration.
• OEM anti-counterfeit visual inspection: Examine Bently Nevada markings, PCB identifiers, labels, connector construction, terminals, and evidence of unauthorized repair.
• Mechanical inspection: Check the housing, mounting hardware, connector pins, input terminals, and PCB surfaces for corrosion, cracks, contamination, or bent contacts.
• Dimensional and fit verification: Confirm correct half-height 3500/15 form factor and proper seating in the designated power-supply position.
• Power-on self-test (POST): Install the PIM with the correct compatible 3500/15 power-supply module in an approved test rack and verify normal startup behavior.
• Input-voltage test: Apply a controlled DC input within the specified 88–140 VDC range and verify correct operation.
• Polarity verification: Confirm correct DC polarity and terminal identification before energizing the test setup.
• Power-transfer test: Verify that the PIM delivers the expected input to the associated 3500/15 power-supply module.
• Load testing: Operate the power path under representative rack load and monitor input current, voltage stability, connector temperature, and abnormal heating.
• Protection check: Verify fuse condition and inspect the input circuit for abnormal resistance, heating, or intermittent contact.
• Redundant-power test: Where the test rack supports two supplies, confirm correct primary/backup behavior and verify that removal of one supply does not interrupt rack operation. Bently Nevada documentation specifies this redundant arrangement for 3500/15 installations.
• Extended run test: Monitor the PIM and power-supply assembly for voltage drift, intermittent resets, connector heating, or power interruptions.
• Final QC: Record part number, serial number, test voltage, measured current, associated power-supply model, inspection findings, condition grade, and packaging approval.

Because 129478-01 is the input stage of the 3500/15 power path, a credible QA process must verify the complete DC input-to-power-supply path, not just continuity across the module.

Module 6: Procurement & Lifecycle FAQ

Is Bently Nevada 3500/15 129478-01 genuinely in stock, and what is the cutoff for emergency shipping?
Physical inventory should be confirmed against the exact 129478-01 marking before PO release. Current industrial listings show varying stock quantities and lead times, so emergency dispatch should be based on physically verified inventory rather than catalog availability.

How do you verify the condition and authenticity of this legacy PIM?
Require complete part-number and serial verification, OEM marking inspection, connector and terminal examination, controlled 88–140 VDC testing, power-transfer testing with the compatible 3500/15 supply, load testing, and documented final QC.

Can I replace 129478-01 with another 3500/15 input module?
Not automatically. 129478-01 is the legacy high-voltage DC PIM for 88–140 VDC. The 3500/15 family also includes low-voltage DC and AC input configurations, each with different part numbers.

Are there firmware compatibility issues I should warn my engineers about before issuing the PO?
Firmware is not normally the primary compatibility issue for the PIM itself. The critical checks are input voltage, DC polarity, rack configuration, connector arrangement, and compatibility with the installed 129486-01 high-voltage DC power-supply module.

What warranty and return terms should procurement require?
The quotation should specify the exact 129478-01 part number, condition grade, serial traceability, electrical test scope, warranty duration, DOA coverage, and return authorization procedure. For a mains-level DC input component, the acceptance record should also document the test voltage and associated power-supply configuration.
