Bently Nevada 3500/15 133292-01 | Low Voltage DC Power Supply

• Brand: Bently Nevada
• Full Model Number: 3500/15 133292-01
• Lifecycle Status: Legacy / Obsolete Support
• Core Function: Legacy Low Voltage DC Power Supply Module for 3500 System racks
• Top 3 Technical Specs: 20–30 VDC input; half-height rack power-supply module; primary or redundant supply position
• Stock & Condition: New Surplus / Tested Refurbished; Exact PIM pairing required; Emergency dispatch subject to stock confirmation

Bently Nevada’s 3500/15 documentation identifies 133292-01 specifically as the Legacy Low Voltage DC Power Supply Module. The corresponding legacy Low Voltage DC Power Input Module is 133300-01, and the documented low-voltage DC input class is 20–30 VDC.

Module 3: Obsolescence & Supply Chain Deep Dive

A failed 133292-01 can remove rack power from a Bently Nevada 3500 machinery-protection system, making replacement timing directly relevant to equipment availability. This is not a generic DC power supply: the 133292-01 is a legacy 3500/15 power-supply module designed for the rack’s low-voltage DC configuration. The associated rear 133300-01 PIM is a separate component, so both parts need to be identified before procurement. The manufacturer’s 3500/15 documentation specifies 20–30 VDC for the legacy low-voltage DC configuration.

From a TCO perspective, replacing the failed power-supply module is generally far less disruptive than changing the rack power architecture. The existing 3500 rack, monitoring modules, field wiring, and protection configuration can remain in service when the replacement is correctly matched. Dual-supply arrangements can also provide redundancy, with the 3500/15 designed to support primary and secondary power-supply positions. The critical procurement issue is generation matching: current 3500/15 DC supplies are not automatically interchangeable with legacy DC supplies and PIMs, so an apparently similar replacement can create avoidable commissioning risk.

Module 4: Compatibility & Replacement Matrix

Field Traps — Watch Out

• Legacy/current generation mismatch: Bently Nevada documentation distinguishes the 133292-01 legacy Low Voltage DC Power Supply Module from the later 114M5330-01 Low Voltage DC Power Supply. The current 3500/15 documentation also states that newer DC supplies and PIMs are not compatible with legacy DC supply/PIM combinations.
• PIM must match: The power supply works with a separate input module. For the legacy low-voltage DC arrangement, verify 133300-01 is installed or supplied as required. Do not assume the front power module alone completes the electrical replacement.

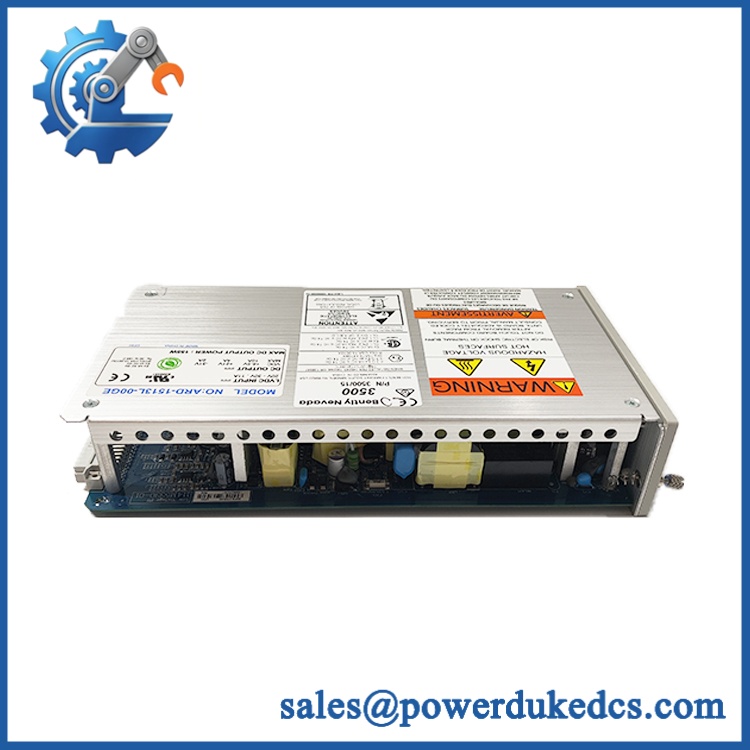

Bently Nevada 3500/15 133292-01

Module 5: Quality Assurance & Testing SOP

Because the 133292-01 sits directly in the rack power path, QA should include controlled electrical testing and verification of the legacy PIM interface.

• Incoming traceability: Record Bently Nevada markings, 3500/15 133292-01 part number, serial number, revision, and date-code information.
• OEM anti-counterfeit visual inspection: Inspect front-panel markings, PCB identification, connectors, enclosure, component condition, solder quality, and evidence of unauthorized repair.
• Mechanical inspection: Verify rack guides, retention hardware, connector alignment, module housing, and rear interface condition.
• Power-on self-test (POST): Install in an approved 3500/15 test rack and verify normal startup and Supply OK indication.
• Input-voltage test: Apply a controlled 20–30 VDC source through the appropriate legacy PIM arrangement.
• Output-rail verification: Measure the power-supply outputs under no-load and representative-load conditions.
• Load testing: Apply representative rack load and monitor voltage stability, current draw, and temperature rise.
• Protection test: Verify applicable fuse and input-protection behavior using an approved laboratory procedure.
• PIM interface test: Confirm correct electrical and mechanical interaction with the associated legacy 133300-01 PIM.
• Rack integration test: Power a representative 3500 rack and verify correct operation of installed monitoring modules.
• Redundancy test: Where a dual-supply configuration is available, verify primary/secondary supply behavior.
• Extended operation: Run the supply under representative load while monitoring output drift, thermal behavior, and diagnostic status.
• Final QC release: Record input voltage, output measurements, load-test results, status indication, serial number, inspection date, and technician approval.

Module 6: Procurement & Lifecycle FAQ

1. Is the Bently Nevada 3500/15 133292-01 genuinely in stock, and what is the cutoff for emergency shipping?

Current supplier listings show the 133292-01 as commercially available, with some listings reporting in-stock inventory. Stock status can change quickly, so emergency procurement should be based on physical warehouse verification, exact part-number confirmation, current condition, and the dispatch cutoff.

2. How do you verify the condition and authenticity of this obsolete power-supply module?

Verify the complete 133292-01 identification, serial information, front-panel markings, PCB condition, connectors, and housing. Controlled testing should then confirm the 20–30 VDC input arrangement, output rails, Supply OK indication, representative load performance, and rack integration. Maintain photographs and measured test results with the MRO record.

3. Are there any firmware compatibility issues I should warn my engineers about before issuing the PO?

There is no application firmware requirement for the 133292-01 itself. The major engineering concern is legacy electrical compatibility. Confirm the existing 3500/15 power configuration and the matching 133300-01 legacy Low Voltage DC PIM. Bently Nevada documentation distinguishes legacy DC power assemblies from newer DC supply/PIM combinations.

4. Can the 133292-01 replace the installed 3500/15 power supply without hardware modification?

Yes, when the installed unit is the same legacy low-voltage DC configuration and the associated PIM and rack arrangement match. The replacement should not be assumed compatible with a newer 3500/15 DC supply architecture. Verify the front supply and rear PIM as a complete pair before installation.

5. What warranty and return terms should procurement require?

The PO should specify Bently Nevada 3500/15 133292-01, exact condition, legacy configuration, associated PIM compatibility, test status, warranty period, and return procedure. Warranty coverage should address DOA and verified power-supply failure while excluding damage caused by incorrect DC input, polarity errors, rack faults, wiring mistakes, overload, or unauthorized modification.
