Bently Nevada 3500/42M | 4-Channel Rack Monitor Unit

1. Bently Nevada 3500/42M | 4-Channel Rack Monitor Unit

Unboxing & Physical Snapshot

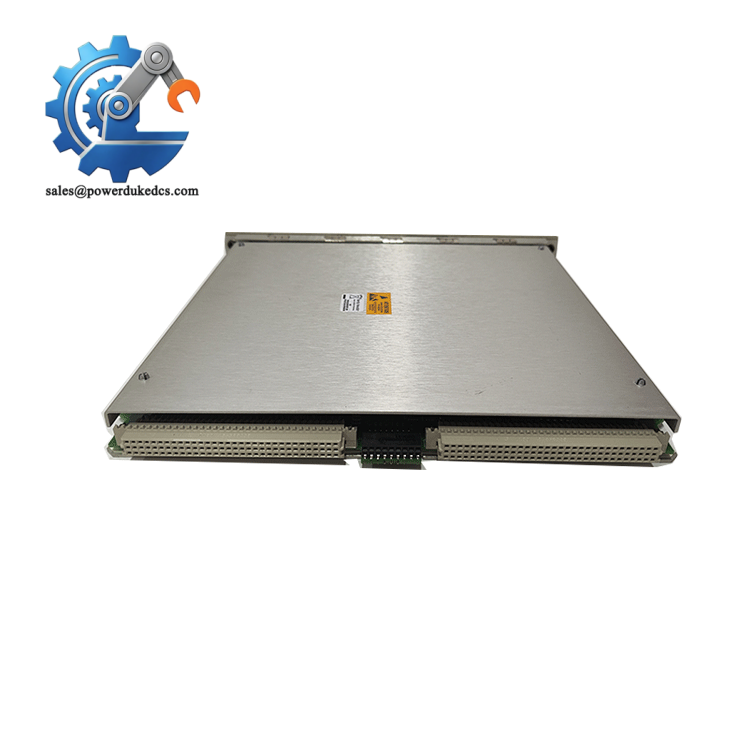

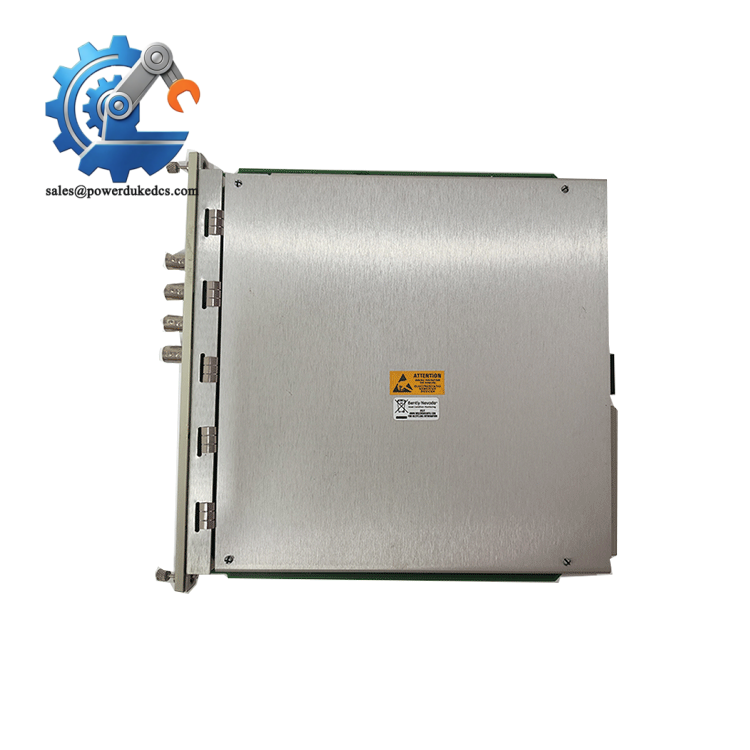

• Model & Brand: Bently Nevada 3500/42M Proximitor/Seismic Monitor Module for the 3500 Machinery Protection System. It processes proximity, velocity, and acceleration transducer signals for rotating equipment monitoring applications.
• Approximate Physical Dimensions:
  • Main monitor module: approximately 9.50 × 0.96 × 9.52 in. (241.3 × 24.4 × 241.8 mm)
  • Rear I/O module: approximately 9.50 × 0.96 × 3.90 in. (241.3 × 24.4 × 99.1 mm)
• Estimated Shipping Weight: Approximately 3 kg (6.6 lb) including protective packaging and accessories. The monitor module itself is approximately 0.91 kg (2.0 lb).
• What’s in the Box:
  • Bently Nevada 3500/42M monitor module
  • Compatible I/O module (configuration dependent)
  • Anti-static (ESD) packaging
  • Protective foam inserts
  • Identification label and serial documentation
  • Calibration/test documentation when supplied

Product Introduction

The 3500/42M installs directly into the Bently Nevada 3500 rack architecture, occupying a dedicated monitor position while receiving conditioned signals from proximity, velocity, or acceleration transducers. The front panel provides status indication and buffered transducer access, while the rear I/O assembly handles field wiring connections (which is critical during turbine outage replacements where incorrect slot placement can extend downtime).

This module is part of a machinery protection chain, not a standalone vibration sensor. The probe, extension cable, Proximitor circuit, I/O module, and monitor firmware must all match the installed system design. Inspect the rear connector pins, retaining hardware, and rack guides before installation because mechanical damage can produce misleading vibration alarms.

Core Technical Specifications

Bently Nevada 3500/42M

Global Compliance & Industry Certifications

Expected regulatory approvals and compliance considerations for the Bently Nevada 3500/42M include:

• CE Mark compliance for applicable 3500 system configurations
• UL/cUL recognition where applicable to the complete monitoring system
• IEC 61010-1 safety considerations through the approved system installation
• RoHS compliance depending on manufacturing revision
• ATEX/IECEx approvals when used with approved hazardous-area I/O modules and installation methods
• Marine approvals such as DNV GL only when specifically qualified for marine applications

ATEX/IECEx certification is particularly important for compressor, turbine, and process environments where explosive atmospheres may exist. The certification applies to the complete approved monitoring configuration, not simply the circuit board.

Verify specific lot certifications with OEM.

Long-Term Storage & Asset Preservation Guide

Keep the 3500/42M inside its original anti-static (ESD) shielding bag during warehouse storage. The rear connector pins and internal electronics should not be exposed to dust, moisture, or uncontrolled handling.

Maintain warehouse humidity below 60% RH. Avoid long-term storage near chemical processing areas, battery rooms, or environments containing corrosive vapors because connector oxidation can create intermittent signal problems.

Inspect before issuing the spare. Verify the part number, firmware compatibility records, rack configuration requirements, and physical condition of the retaining clips and connector surfaces (this simple inspection prevents many startup delays during emergency machinery repairs).

Physical Installation Prerequisites

• Install the 3500/42M only in a compatible Bently Nevada 3500 rack.
• Confirm the correct rack slot location before insertion.
• Use ESD protection during handling and installation.
• Ensure the front card guide and rear I/O alignment are properly seated.
• Maintain approximately 50 mm clearance around cabinet ventilation paths where practical.
• Verify rack grounding and protective earth connections before energizing.
• Confirm field wiring polarity and shield termination according to the approved installation drawings.


  Bently Nevada 3500/42M

Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly used for the Bently Nevada 3500/42M?

A: The 3500/42M is typically evaluated under HS classifications related to electrical measuring, monitoring, or control equipment. Many industrial monitoring modules fall within HS 9030 or related categories, but the final Harmonized System code depends on the importing country’s customs interpretation. Confirm the tariff classification with your customs broker before shipment.

Q: Why does Country of Origin matter when purchasing a 3500/42M spare?

A: COO affects import documentation, contractual requirements, and maintenance traceability. Verify that the Country of Origin listed on the commercial invoice matches supplier records and the module identification label.

Q: Should shipping insurance be added for this monitor module?

A: Recommended. The 3500/42M supports critical machinery protection systems, and replacement delays can affect outage schedules. Use insured freight, ESD packaging, and receiving inspection records for controlled asset management.

Q: Does the 3500/42M include the latest firmware pre-loaded?

A: Firmware status depends on the module revision, manufacturing date, and previous service history. The module must match the installed 3500 rack software configuration and approved firmware requirements before commissioning. Verify compatibility with the existing machinery protection database before installation.
