- B&R 5PC720-1505.01 | XGA Touchscreen HMI Hardware
2. Unboxing & Physical Snapshot
- Model & Brand: B&R Industrial Automation 5PC720-1505.01 (5PC720.1505-01)
- Product Type: Panel PC 700 Industrial HMI / Automation Computer
- Application: Industrial operator interface and machine control platform used with B&R automation systems. The unit combines a 15-inch resistive touchscreen display with industrial PC hardware, PCI expansion capability, serial interfaces, USB ports, and Ethernet communication.
- Display Size: 15-inch XGA TFT color display
- Touch Technology: Analog resistive touchscreen
- Approximate Physical Dimensions (W × H × D):
- 435 × 330 × 151.3 mm (with compatible heatsink configuration)
- Depth may increase to approximately 166.5 mm depending on heatsink option.
- Estimated Shipping Weight: Approximately 6.7 kg unit weight; export packaging typically increases freight weight.
- What’s in the Box:
- B&R Panel PC 720 5PC720-1505.01
- 15-inch XGA TFT touchscreen assembly
- Industrial PC enclosure
- Front panel gasket
- Documentation when supplied with controlled inventory
- Power connector must be ordered separately:
- 0TB103.9 screw clamp terminal
- 0TB103.91 cage clamp terminal
3. Product Introduction
The 5PC720-1505.01 mounts into the machine control cabinet as a combined visualization and computing platform. It provides the physical operator interface layer between production personnel and the automation controller, supporting HMI applications, machine diagnostics, and industrial visualization tasks. The front panel carries an IP65-rated protection design, while the rear enclosure remains a controlled cabinet component (which is important when planning cabinet ingress protection).
Handle this Panel PC as a complete automation computer, not only as a display. Inspect the touchscreen surface, aluminum frame, cooling area, CompactFlash access points, PCI slots, and rear connectors before installation. Storage media condition and CPU board compatibility must be verified before replacing an existing production unit.
4. Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | B&R Industrial Automation |
| Model Number | 5PC720-1505.01 |
| Product Family | Panel PC 700 |
| Product Type | Industrial Panel PC / HMI Computer |
| Display Type | TFT Color LCD |
| Display Size | 15 inch |
| Resolution | XGA 1024 × 768 pixels |
| Touchscreen Type | Analog resistive |
| Brightness | 350 cd/m² |
| Contrast Ratio | 1000:1 |
| Touch Controller | Elo serial 12-bit |
| CPU Compatibility | B&R 5PC600 CPU board series |
| Memory Support | SO-DIMM DDR2 options up to 2 GB |
| PCI Expansion Slots | 2 × PCI half-size slots |
| COM Ports | 2 × RS-232 |
| Ethernet Ports | 2 × 10/100 Mbps Ethernet |
| USB Ports | 3 × USB 2.0 Type A |
| Monitor Interface | DVI-I |
| CompactFlash Slots | Type I × 2 (configuration dependent) |
| Audio Interface | AC97 microphone/line input/output |
| Supply Voltage | 24 VDC ±25% |
| Nominal Current | 3.8 A |
| Galvanic Isolation | Yes |
| Inrush Current | Typical 10 A, maximum 40 A <300 μs |
| Front Protection Rating | IP65 / NEMA 250 Type 4X indoor |
| Cooling | Fan slot available |
| Battery | Renata 950 mAh lithium battery |
| Battery Service Life | Approximately 4 years |
| Firmware | System firmware dependent |
| Operating Altitude | Up to 3000 m |

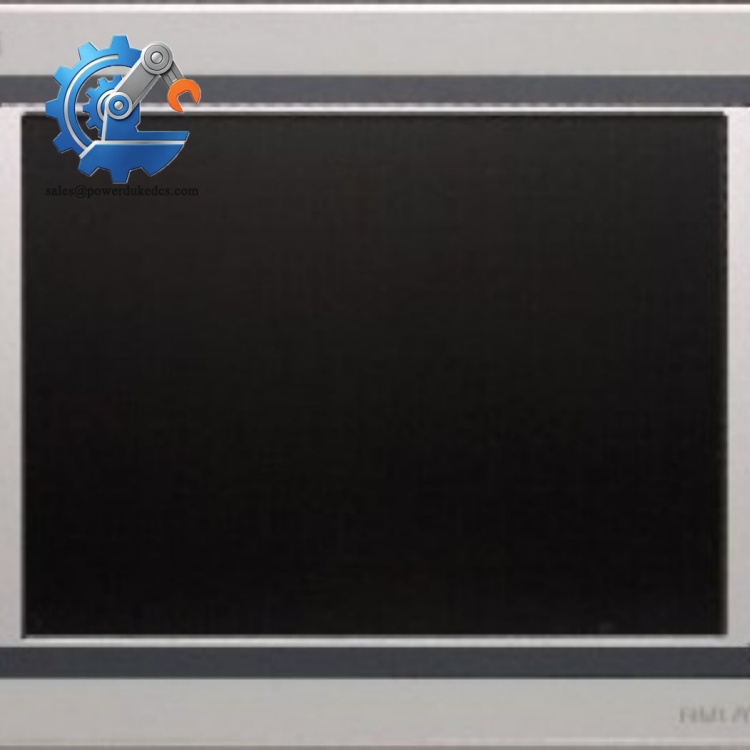

B&R 5PC720-1505.01
5. Global Compliance & Industry Certifications
Expected compliance considerations for the B&R 5PC720-1505.01 include:
- CE Mark
- UKCA Mark
- cULus E115267 Industrial Control Equipment certification
- Industrial EMC compliance
- RoHS compliance depending on production period and market requirements
- ATEX/IECEx: Not typically applicable for the standard Panel PC version unless installed within a certified hazardous-area system.
- Marine approvals (DNV GL): Not standard; application-specific approval would require the complete system certification.
The UL industrial control equipment approval is important because it verifies that the hardware has been evaluated for use within industrial control environments where electrical safety requirements are strictly controlled.
Verify specific lot certifications with OEM.
6. Long-Term Storage & Asset Preservation Guide
- Keep the 5PC720-1505.01 in its original protective packaging. Cover the touchscreen surface and protect rear connectors from dust accumulation.
- Maintain storage humidity below 60% RH to reduce oxidation risk on PCI contacts, connectors, and internal PCB assemblies.
- Check the internal lithium battery condition before installation after extended storage. Replace aging batteries to prevent leakage risk and preserve clock data.
Protect the touchscreen.
For warehouse-controlled assets, record the CPU board type, RAM size, storage media configuration, firmware revision, and serial number. Panel PCs are often customized with application-specific hardware, so the external model number alone may not identify the complete installed configuration.
7. Physical Installation Prerequisites
- Install the Panel PC into a suitable cabinet cutout according to B&R mechanical drawings.
- Ensure the front gasket is correctly seated to maintain IP65 protection.
- Provide rear cabinet airflow around the heatsink and ventilation areas.
- Leave approximately 50 mm clearance around the rear cooling area where cabinet design permits.
- Connect the 24 VDC supply using the approved B&R terminal connector.
- Connect protective earth grounding to the cabinet grounding system.
- Avoid routing high-current motor cables directly beside communication and display wiring.
- Verify PCI cards, RAM modules, CompactFlash devices, and CPU boards before powering the unit.
8. Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly reviewed for the B&R 5PC720-1505.01?
A: Industrial Panel PCs are commonly evaluated under HS 8471 categories for automatic data processing machines or HS 8537 categories depending on declared industrial control function. Final classification depends on customs interpretation.
Q: Why does Country of Origin (COO) documentation matter for this Panel PC?
A: COO supports customs clearance, industrial asset records, and regulated customer documentation. The COO should match the commercial invoice, packing list, and product identification label.
Q: Is shipping insurance recommended for the 5PC720-1505.01?
A: Yes. The touchscreen glass, LCD assembly, CPU board, and PCI interfaces require careful handling. Use shock protection, moisture barriers, and declared-value freight coverage.
Q: Does the 5PC720-1505.01 include the latest firmware pre-loaded?
A: The Panel PC contains factory system firmware, but the exact operating system, application software, CPU board configuration, and storage media depend on the delivered configuration. Verify the installed hardware revision before commissioning.
