Emerson 1C31181G01 | Ovation MAU PMOD Fiber Interface Module

Description

• Brand: Emerson
• Full Model Number: 1C31181G01
• Ovation System: Ovation DCS
• Product Type: Master Attachment Unit Personality Module PMOD
• Core Function: Optical interface for the Ovation MAU subsystem
• Lifecycle Status: Obsolete / legacy; manufacturer discontinuation reported
• Optical Wavelength: 850 nm
• Optical Link Distance: Up to 2 km / 6,560 ft
• Channel Configuration: 2-channel MAU configuration with 1C31179G01
• System Pairing: 1C31179G01 Electronic Module + 1C31181G01 Personality Module
• Stock & Condition: Supplier-held inventory subject to live quantity confirmation; New Surplus / Tested Refurbished subject to lot

Supply Chain & Technical Deep Dive

When a legacy Ovation MAU personality module fails, the real procurement problem is not the card alone. It is matching the exact optical variant to the installed MAU architecture before the replacement reaches site. Emerson identifies 1C31181G01 as a PMOD assembly for the Media Attachment Unit, while the Ovation I/O reference documentation pairs it with the 1C31179G01 electronics module. That documented pairing supports the standard 850 nm configuration with an optical link of up to 2 km.

For maintenance teams, the value comes from restoring an existing remote-I/O communication path without redesigning the cabinet architecture. The published MAU table specifies 850 nm optics and a maximum link distance of 2 km for the 1C31179G01 and 1C31181G01 combination; the same documentation notes that the MAU system must use the matching optical type across its connected remote nodes. That makes exact part-number matching more important than buying a visually similar Ovation module. (For critical shutdown spares, confirm the installed MAU electronics part number and fiber specification before releasing the PO.)

Migration, Compatibility & Field Traps

Replacement Matrix

Field Traps — Watch Out

Optical Variant Mismatch: Do not substitute the G01 PMOD based only on physical fit. The documented G01 configuration uses 850 nm optics and supports an optical link up to 2 km; G03 and G04 use different optical configurations and distances.

Module Pairing Error: Confirm that the installed electronic module is the correct 1C31179G01 configuration for the G01 personality module. The Ovation reference manual explicitly maps these components together.

Fiber Handling: Keep optical connectors clean and capped during installation. Contamination or incorrect fiber components can produce communication faults even when the replacement module itself is functional.

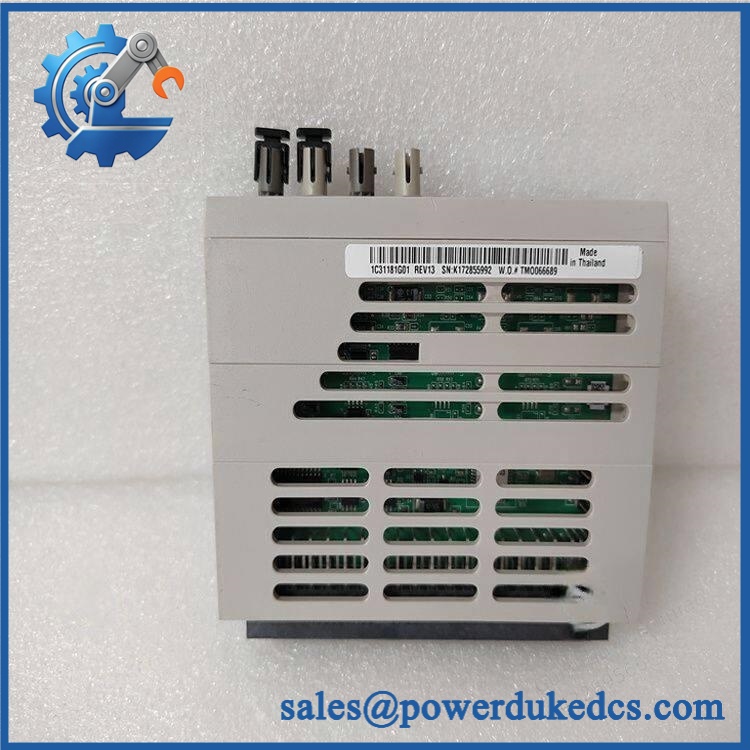

Emerson 1C31181G01

Quality Assurance & Testing SOP

Our pre-shipment QA process for stocked 1C31181G01 units should include:

• OEM anti-counterfeit visual inspection: Verify Emerson labeling, part number, revision markings, connector construction, PCB condition, and physical consistency against documented product characteristics.
• Part-number verification: Confirm 1C31181G01 against the purchase order and inspect the full module identification before packing.
• Optical interface inspection: Check fiber interface condition, connector integrity, contamination, scratches, and mechanical damage.
• Assembly verification: Confirm the unit is the correct PMOD variant and not an adjacent 1C31181G02/G03/G04 configuration.
• Power-on verification where test hardware permits: Install into the correct MAU test assembly and check expected status behavior and communication response.
• I/O and communication test: Validate the MAU communication path under a controlled test setup rather than relying only on a visual inspection.
• Burn-in observation: Monitor the unit during functional testing for intermittent faults, unstable communication, or abnormal thermal behavior.
• Final QC record: Record model number, visible revision markings, test result, cosmetic condition, packaging condition, and inspection date before shipment.

Because this is a legacy PMOD, cosmetic similarity alone is not an acceptable acceptance criterion.

Procurement-Driven FAQ

Is the Emerson 1C31181G01 genuinely in stock and what is the cutoff for overnight shipping?

Live quantity should be confirmed against the physical inventory before the purchase order is released. Overnight shipping cutoff depends on the shipping destination, carrier service, customs requirements, and the time the order is cleared for dispatch. A stock confirmation should state quantity, condition, packaging status, and earliest dispatch time.

How do you guarantee the condition of obsolete or surplus 1C31181G01 units?

Condition should be documented at the individual-unit level. For New Surplus units, inspect factory packaging and identification; for tested units, record visual inspection, functional testing, communication verification, and final QC status before shipment. Avoid accepting a generic “new” description without part-number and condition checks.

What warranty and return terms should I require?

For procurement, the quotation should state the exact warranty period, the warranty start point, DOA handling procedure, return authorization process, and responsibility for return freight on verified defects. These terms should appear on the commercial quotation or sales order rather than being assumed from the product listing.

Are there firmware compatibility issues my engineers should check?

The primary documented compatibility issue is the MAU hardware and optical configuration rather than a standalone PMOD firmware version. The G01 pairing uses 1C31179G01 with 850 nm optics and an optical link up to 2 km. Engineering should verify the existing MAU electronics, base assembly, fiber type, and Ovation system configuration before installation.

What is the main procurement risk with this part?

The main risk is ordering the correct-looking Ovation personality module with the wrong optical variant or incompatible MAU electronics. Emerson’s documentation differentiates the G01 through G04 variants by channel configuration, wavelength, and link distance.
