Description
- Brand: Emerson
- Full Model Number: 5X00500G01
- Lifecycle Status: Legacy / Obsolete Status to Be Verified
- Core Function: Ovation 32-Channel Digital Output EMOD
- Top 3 Technical Specs: 32 Channels | 500 mA Max. Per Channel | 2 A Max. Total
- Output Type: IEC 61131-2 Protected Current-Sourcing DC Output
- Field Supply: 24 VDC Auxiliary Cabinet Power
- Isolation: ±1,000 VDC Field-to-Logic
- Required Base: 5X00497G01 Four-Module I/O Base
- Stock & Condition: New Surplus / Tested Refurbished Subject to Availability
- Shipping: Expedited Dispatch Available by Order Cutoff and Destination
- Warranty: 12-Month Supplier Warranty, Subject to Quoted Terms
Supply Chain & Technical Deep Dive
When a legacy Ovation cabinet loses a digital output module, the repair schedule can stall around one discontinued component. Emerson 5X00500G01 addresses that spare-parts gap with a 32-channel digital output configuration for Ovation systems. Each output is designed as a protected current-sourcing DC channel with a maximum individual rating of 500 mA. The module also provides channel indication, diagnostic information, field-power monitoring, and protection against inductive kickback. For the documented 32-channel arrangement, the 5X00497G01 four-module I/O base is part of the required hardware architecture.
Channel density is the main economic advantage. One 5X00500G01 supplies 32 discrete outputs while maintaining a specified 2 A maximum total output current, so engineers must evaluate the combined load rather than multiply the single-channel rating across all points. Maximum module power dissipation is approximately 4.05 W, while the field-to-logic isolation rating is ±1,000 VDC. The published operating range is 0°C to 60°C. These specifications can support replacement planning where maintaining the existing Ovation architecture costs less than redesigning an installed I/O section.
Migration, Compatibility & Field Traps
Replacement Matrix
| Replacement Type | Assessment | Engineering Requirement |
|---|---|---|
| Drop-in Replacement | Conditional | Verify the existing Ovation I/O architecture, module revision, base hardware, and termination arrangement |
| Software Compatible | Verify Before Installation | Confirm the installed Ovation configuration recognizes the specific module revision |
| Hardware Modification | Normally Not Required for Like-for-Like Replacement | Hardware changes may be necessary when changing module families or I/O architectures |
The 5X00500G01 is an Ovation-specific 32-channel digital output module. Before approving a replacement, confirm that the existing cabinet uses the required four-module I/O base and that the replacement revision matches the installed configuration.
Field Traps — Watch Out
Total Current Limit: A 500 mA channel rating does not mean 32 channels can each operate at 500 mA simultaneously. The documented total module output limit is 2 A. Calculate the combined field load before installation.
24 VDC Field Supply: A missing or low auxiliary field supply can produce external-fault indications and may be mistaken for a failed output module. Check the cabinet power source, fuse condition, and field wiring before replacing the EMOD.
ESD Handling: Use appropriate ESD controls when removing the module from its packaging and cabinet. Do not handle exposed circuit-board areas unnecessarily.

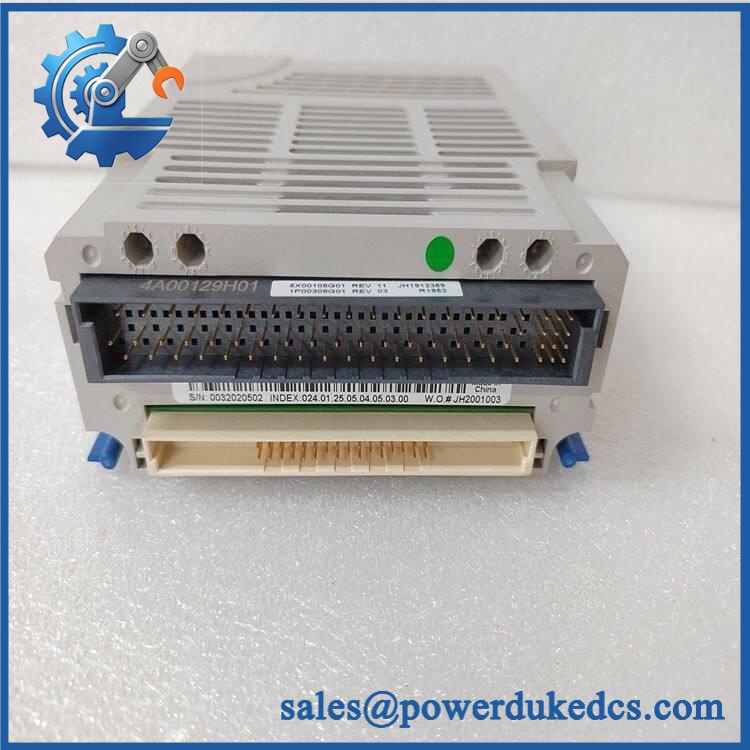

Emerson 5X00500G01
Quality Assurance & Testing SOP
Every unit should pass a controlled inspection sequence before shipment. The process begins with an OEM anti-counterfeit visual inspection covering manufacturer markings, label consistency, connector condition, housing integrity, board identification, revision information, and signs of unauthorized rework. Serial and revision data are recorded where accessible.
Electrical verification follows controlled power application. The technician checks startup behavior, module status indicators, communication status, external-fault indication, internal-fault indication, and channel-level output indications. The goal is to identify abnormal LED states or diagnostic conditions before the unit is packed.
I/O load testing is then performed with representative test loads. Individual output channels are commanded through repeated switching cycles, and the technician checks output response, channel indication, stability, and fault behavior. Field-power detection is also verified where the test setup permits. Power is removed and reapplied during the test sequence to identify intermittent startup problems.
Final QA documentation should record the exact model number, visible revision information, inspection result, functional test result, packaging condition, and shipment identification. For surplus inventory, physical condition and electrical test status are documented separately so procurement teams know exactly what is being purchased.
Procurement-Driven FAQ
Is this Emerson 5X00500G01 genuinely in stock, and what is the cutoff for overnight shipping?
Stock should be confirmed against the exact quantity, condition, and revision before purchase-order release. Overnight shipment depends on order cutoff time, warehouse dispatch capacity, carrier service, and destination. The applicable shipping cutoff should be stated on the quotation.
How do you guarantee the condition of obsolete or surplus parts?
Condition is identified clearly before shipment. New Surplus refers to unused inventory, while Tested Refurbished refers to previously used equipment that has completed inspection and functional testing. Buyers should receive the stated condition together with the applicable QA record or test summary.
What are the warranty terms and return policies for defective units?
Warranty coverage should be defined on the quotation and sales confirmation before payment. A standard supplier warranty may cover verified product defects or dead-on-arrival failures, while incorrect wiring, overcurrent, field surges, unauthorized modification, physical damage, or improper installation may be excluded.
Are there firmware compatibility issues my engineers should check?
The exact firmware requirement depends on the installed Ovation system configuration and module revision. Engineering teams should verify the existing controller configuration, recognized module type, revision information, and software database before installation rather than assuming every 5X00500G01 revision is interchangeable.
Can the 5X00500G01 handle 500 mA on all 32 outputs?
No. The documented rating is up to 500 mA per individual channel, with a 2 A maximum total output current for the module. The actual field-load calculation must account for simultaneous operation across the complete output group.
