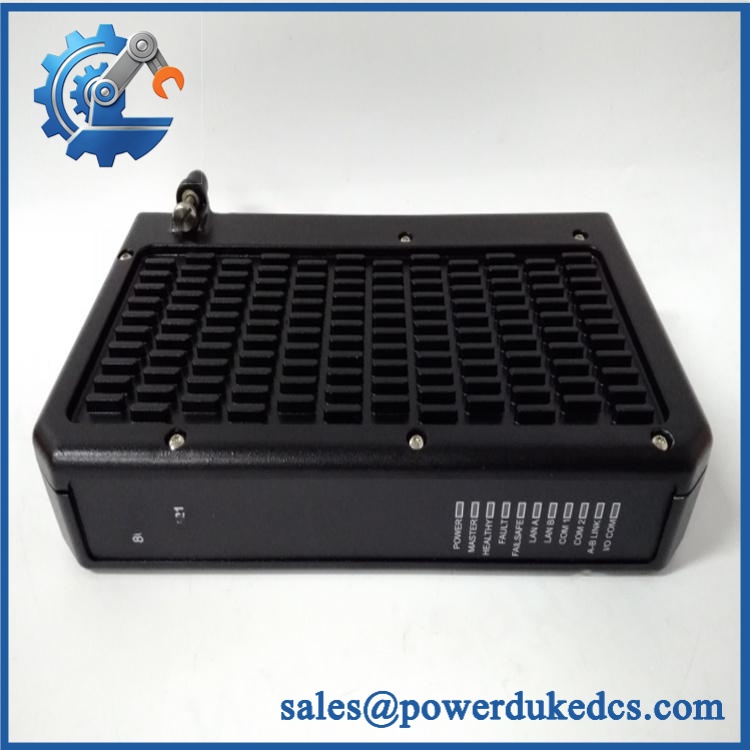

Emerson 8521-LC-MT | PAC8000 Logic Controller Module

Description

• Brand: Emerson
• Full Model Number: 8521-LC-MT
• System: PAC8000 Control Platform
• Product Type: Logic Controller
• Lifecycle Status: Obsolete / Discontinued
• Core Function: PAC8000 logic control execution and I/O management
• Programming: IEC 61131-3
• LAN: 2 × RJ45, 100BaseTX / 10BaseT Ethernet, 10–100 Mb/s
• Serial: RS485 half-duplex, 1.2–115 kb/s
• Controller Power: 12 VDC, 10.9–12.6 VDC, 0.4 A typical / 0.5 A maximum
• I/O Capacity: Up to 64 I/O modules per controller
• Response: Control output within 100 ms
• Dimensions: 232 × 69 × 138 mm
• Weight: Approximately 1.35 kg
• Stock & Condition: Supplier inventory; New Surplus / Tested Refurbished subject to physical stock confirmation

The 8521-LC-MT was originally documented by GE Intelligent Platforms as the Logic Controller. Emerson subsequently acquired GE Intelligent Platforms in 2019, which explains the Emerson attribution now associated with this legacy part. Current distribution records identify the exact 8521-LC-MT as discontinued.

Supply Chain & Technical Deep Dive

When an installed node loses its controller, replacing the complete control architecture can introduce unnecessary engineering work, configuration effort, and plant downtime. The 8521-LC-MT is the dedicated Logic Controller version of the platform and includes the Logic control software. Its documented role is to execute control strategies, manage I/O activity, and handle communications across the control network. The controller supports IEC 61131-3 programming, with the Workbench used for configuration, download, simulation, debugging, and monitoring.

For TCO analysis, the important figures are system capacity and electrical requirements rather than a newer processor specification that is not verified for this exact part. One 8521-LC-MT controller can address up to 64 I/O modules, while the LAN interface supports 100BaseTX or 10BaseT Ethernet at 10–100 Mb/s. Controller power is 12 VDC with a permitted range of 10.9–12.6 VDC, at 0.4 A typical and 0.5 A maximum; published documentation also gives a control response figure of within 100 ms. Mechanical dimensions are 232 × 69 × 138 mm, with an approximate weight of 1.35 kg.

Emerson 8521-LC-MT

Migration, Compatibility & Field Traps

Replacement Matrix

Field Traps — Watch Out

Controller Power Range: The specified direct controller supply is 10.9–12.6 VDC, with 0.4 A typical and 0.5 A maximum consumption. Do not treat a generic 24 VDC supply as a direct controller input without confirming the actual power architecture.

Carrier and Configuration Mismatch: The controller interfaces with the carrier and internal Railbus architecture. Before installation, verify the carrier arrangement, LAN connections, controller addresses, project backup, and installed I/O configuration. Incorrect network parameters can prevent the replacement from joining the operating control system.

Quality Assurance & Testing SOP

For supplier-held 8521-LC-MT inventory, pre-shipment inspection should follow a documented acceptance procedure:

• OEM anti-counterfeit visual inspection: Verify manufacturer markings, model number, revision identifiers, enclosure construction, connectors, and PCB condition against known characteristics.
• Part-number verification: Confirm 8521-LC-MT at the unit level and reconcile the marking with the purchase order.
• Mechanical inspection: Check the carrier interface, connector pins, housing, fasteners, labels, and enclosure for damage or unauthorized modification.
• Power-on test: Apply the specified controller supply within the 10.9–12.6 VDC range and observe normal startup behavior and diagnostic indicators.
• POST / diagnostic check: Check controller startup status, fault indications, and expected communications behavior rather than relying solely on cosmetic inspection.
• Ethernet communication test: Validate the Ethernet interface and controller network response under a compatible test setup.
• RS485 communication test: Where the test fixture permits, verify serial communication response across the specified RS485 interface.
• I/O load testing: Exercise representative I/O configurations and confirm controller response to simulated input and output activity.
• Configuration test: Where authorized test software is available, load a controlled Logic test project and verify execution, monitoring, and communication.
• Extended run observation: Monitor the controller under powered operation for intermittent communication faults, unexpected resets, abnormal heating, or diagnostic alarms.
• Final QC record: Record model, revision, condition, inspection date, electrical test result, communication result, and packaging status before shipment.

A used or surplus controller should not be accepted solely because it powers on. For legacy equipment, controller configuration and communications behavior are material acceptance criteria.

Procurement-Driven FAQ

Is the Emerson 8521-LC-MT genuinely in stock, and what is the cutoff for overnight shipping?

Physical inventory should be confirmed before the PO is released. The quotation should state the available quantity, condition, packaging status, and earliest dispatch time. Overnight delivery depends on destination, carrier cutoff, and customs clearance.

How do you guarantee the condition of an obsolete 8521-LC-MT?

Condition should be recorded against the actual serial or unit identification where available. New Surplus units should undergo packaging and label inspection, while tested units should receive power, diagnostic, communication, and controlled I/O testing before shipment.

What warranty and return terms should apply to a defective unit?

The commercial quotation should specify the warranty period, warranty start date, DOA procedure, return authorization process, and responsibility for verified-defect return freight. These terms should be agreed before shipment.

Are there firmware compatibility issues my engineers should check?

The major engineering concern is the software and configuration environment, not an assumed generic firmware version. The 8521-LC-MT is configured through the Workbench environment, and the selected control package must correspond to the controller type. Preserve the existing project configuration before replacement.

What should procurement verify before ordering a 8521-LC-MT?

Confirm the exact 8521-LC-MT part number, system generation, controller revision, carrier configuration, power arrangement, network setup, and required software package. Do not substitute an 8521-PC-MT, 8521-HC-MT, or 8521-EB-MT solely because the hardware format appears similar; these are different controller configurations.
