Emerson 8750-CA-NS | PAC8000 Controller Carrier Assembly

Description

• Brand: Emerson
• Full Model Number: 8750-CA-NS
• Lifecycle Status: Legacy / Discontinued by manufacturer
• Core Function: PAC8000 controller carrier with power monitoring for simplex or redundant controller configurations
• Top 3 Technical Specs: Up to 2 controllers or EBIMs; 8410-NS-PS power supply monitor support; 7 power-fail input channels
• Stock & Condition: New Surplus — current quantity and exact condition to be confirmed before PO

Emerson documentation identifies the 8750-CA-NS as the PAC8000 controller carrier for a single or redundant controller arrangement. The carrier accommodates up to two controllers or EBIMs and provides serial connections plus manually operated change-state controls. It also accepts the 8410-NS-PS power supply monitor, which monitors system power-fail signals.

The published carrier specification gives an operating ambient range of -40°C to +70°C, storage from -40°C to +85°C, and a footprint of approximately 200 × 253 × 68 mm. Current industrial parts references classify the 8750-CA-NS as discontinued, which makes verified spare inventory materially relevant for plants keeping PAC8000 systems in service.

Supply Chain & Technical Deep Dive

Sourcing a discontinued PAC8000 carrier can create a longer maintenance window even when the controller and I/O electronics themselves are still serviceable. The Emerson 8750-CA-NS is the physical carrier that holds and interconnects up to two PAC8000 controllers or EBIMs while also providing the associated serial interfaces and power-fail monitoring connections. For a replacement project, the carrier matters because a controller cannot simply be treated as an isolated board when the existing cabinet depends on the original carrier architecture.

From a TCO standpoint, preserving the installed PAC8000 architecture can avoid unnecessary cabinet redesign, field rewiring, and controller migration work. The carrier’s environmental specification extends to -40°C to +70°C during operation, while the documented footprint is about 200 mm wide, 253 mm deep, and 68 mm high. One important procurement distinction: 8750-CA-NS is the standard controller carrier; 8751-CA-NS is the related carrier with earth-leakage fault detection for applicable SafetyNet installations. That difference should be checked against the existing cabinet design before release of a purchase order.

Migration, Compatibility & Field Traps

Replacement Matrix

Field Traps — Watch Out

Standard versus earth-leakage carrier: Do not substitute 8750-CA-NS for 8751-CA-NS in an installation requiring earth-leakage fault detection. Emerson’s SafetyNet documentation specifically distinguishes the two carrier types.

Power-fail wiring: The carrier accepts signals from the node’s power supplies through a rear screw-terminal connection. The documented design provides up to seven power-fail inputs on the carrier. Before removal, photograph and label those connections; an incorrect retermination can create false power alarms even when the controller itself starts normally.

Redundancy trap: The carrier supports two controllers or EBIMs. In redundant installations, verify the existing A/B arrangement and the associated manual change-state controls before commissioning. The carrier is not interchangeable by appearance alone with unrelated carrier types.

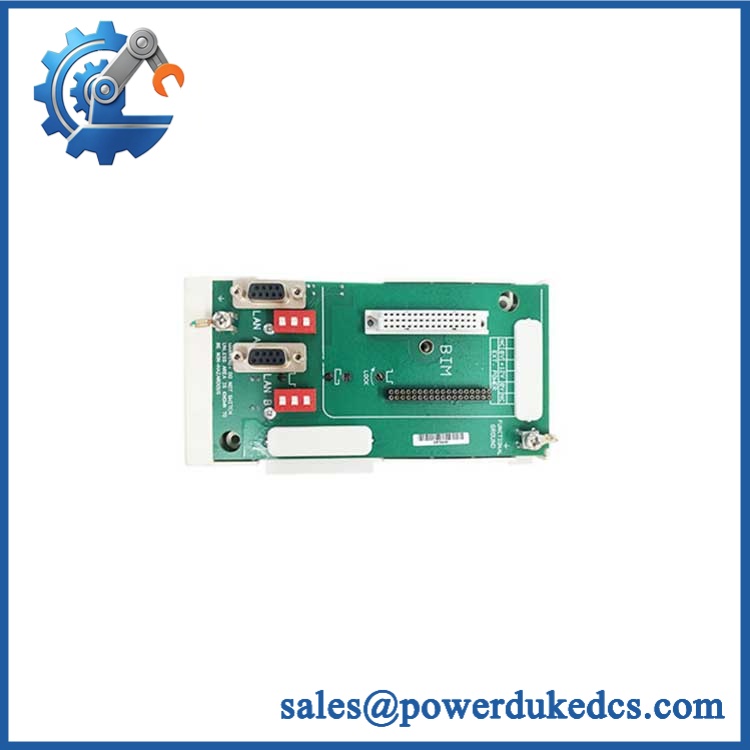

Emerson 8750-CA-NS

Quality Assurance & Testing SOP

For a surplus 8750-CA-NS, the QA process should concentrate on part identity, mechanical integrity, connector condition, and system-level carrier functions.

• OEM anti-counterfeit visual inspection: Verify Emerson/GE/MTL identification markings, complete 8750-CA-NS part number, labels, carrier construction, connectors, and visible revision information.
• Mechanical inspection: Check the chassis for cracks, deformation, corrosion, damaged mounting points, missing hardware, or signs of unauthorized modification.
• Carrier configuration verification: Confirm that the unit is the standard 8750-CA-NS and not the earth-leakage 8751-CA-NS variant.
• Power-up inspection: Install the carrier in a controlled test assembly and verify normal power distribution behavior and absence of abnormal fault indications.
• Controller fit and retention test: Install representative compatible controller hardware and verify proper mechanical engagement, retention, and connector alignment.
• Serial interface verification: Check the carrier-mounted serial connections for continuity and correct physical termination.
• Power-fail input verification: Test the applicable power-fail input paths using controlled signals and verify expected alarm-state behavior.
• Redundancy/change-state test: Where a two-controller test setup is available, verify the manually operated change-state function and associated controller connections.
• Thermal observation: Run the carrier under representative cabinet conditions while checking for abnormal heating, intermittent connections, or mechanical instability.
• Final traceability: Record exact part number, visible serial information where available, test results, photographs, inspection date, and packaging condition.

Procurement-Driven FAQ

Is the Emerson 8750-CA-NS genuinely available, and what is the cutoff for overnight shipping?
Availability should be confirmed against the physical warehouse unit before a PO is released. For urgent shipment requests, the cutoff should be established from the actual destination, carrier service, and completed inspection status rather than from a fixed promise.

How do you verify the condition of a discontinued 8750-CA-NS?
Each unit should undergo part-number verification, OEM visual inspection, mechanical inspection, connector checks, carrier functional testing, and documentation review. Surplus status should never be treated as proof of operating condition.

What warranty terms should apply to this replacement carrier?
The commercial warranty should be stated on the quotation or pro forma invoice before purchase. It should identify the warranty period, covered functional defects, return authorization process, and exclusions for installation damage, wiring errors, or unauthorized modification.

Are there firmware compatibility issues with the 8750-CA-NS?
The 8750-CA-NS is a carrier, not the application processor itself, so firmware concerns primarily relate to the controller or EBIM installed on the carrier. The more immediate hardware checks are controller type, redundancy arrangement, power-monitor configuration, and carrier wiring.

Can 8750-CA-NS replace 8751-CA-NS?
Not as a blanket substitution. The 8751-CA-NS is specifically associated with earth-leakage fault detection for SafetyNet applications, while the standard 8750-CA-NS is the conventional controller carrier. The installed system specification should determine which carrier is required.
