Emerson A6500-CC | AMS 6500 ATG System Communication Card

Description

• Brand: Emerson
• Full Model Number: A6500-CC
• Lifecycle Status: Active / currently documented
• Core Function: System communication and rack-interface card for AMS 6500 ATG machinery protection systems
• Top 3 Technical Specs: 3U 1-slot plug-in module; Modbus TCP/IP and Modbus RTU; OPC UA support
• Stock & Condition: New Surplus; functional testing available before shipment

Supply Chain & Technical Deep Dive

Sourcing a communication card for an installed AMS 6500 ATG rack is different from sourcing a generic industrial network module. The Emerson A6500-CC is a system communication card and rack-interface module used with the AMS 6500 ATG system. It communicates with A6500 monitoring cards and makes their parameters available through Modbus TCP/IP, Modbus RTU, and OPC UA. Emerson specifies the card as a 3U, 1-slot plug-in module, designed for A6500-xR system racks. It is also used for system configuration and communication with the measurement, temperature/process, and relay cards.

The procurement value comes from preserving the installed rack architecture rather than replacing an entire machinery protection system because of one failed communication card. Emerson specifies up to 2,000 freely assignable Modbus registers, Ethernet at 10/100 Mbit/s, and an RS485 interface supporting Modbus RTU. The Ethernet connection uses an RJ45 interface with a maximum cable length of 100 m; the card also provides a USB Type-B interface for local configuration. Two A6500-CC cards can be installed in supported redundant rack configurations, providing a second communication path when the application requires redundancy.

Migration, Compatibility & Field Traps

Replacement Matrix

Rack-slot trap: The -CC is specifically designed for the communication slots of the -xR System Racks. Emerson documentation identifies communication positions CD13 and CD14 and specifies a 30-pole DIN 41612 / IEC 60603-2 connector. Do not approve the replacement solely because the card dimensions appear correct. Confirm the rack model and slot assignment first.

Firmware mismatch trap: Emerson’s operating manual documents a redundancy firmware version mismatch event. If cards operate as a redundant pair, verify their firmware compatibility before commissioning. A replacement with a different firmware revision may require configuration review rather than immediate insertion into the live rack.

Communication-interface trap: Ethernet, USB, and Modbus RTU interfaces have different physical and electrical characteristics. Emerson specifies galvanic isolation for the Ethernet, USB, and Modbus RTU interfaces. Confirm which interface is being replaced and preserve the existing network addressing, serial settings, and communication mapping.

MicroSD note: includes a microSD slot. Emerson states that authorized microSD media should be used and recommends replacement after five years of operation. This becomes important when transferring an existing card or restoring event and data-collection functions.

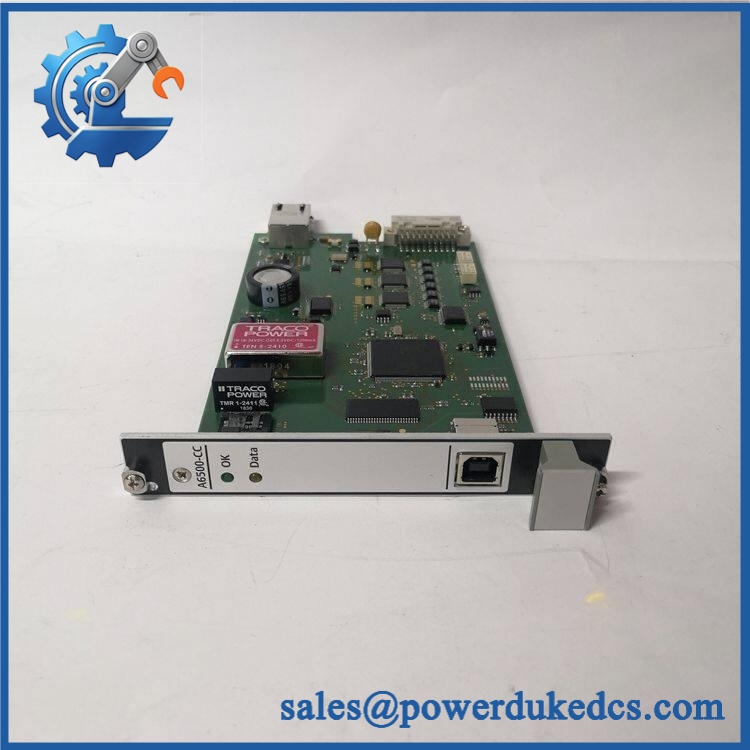

Emerson A6500-CC

Quality Assurance & Testing SOP

Each available Eme should pass a controlled inspection sequence before shipment:

• OEM anti-counterfeit visual inspection: Verify Emerson identificat model marking, PCB labels, connector configuration, front panel, and manufacturing identifiers.
• Part-number verification: Match the physical card marking against and the purchase documentation.
• Mechanical inspection: Check the 30-pin connector, front-panel assembly, PCB edges, mounting features, RJ45 port, USB Type-B interface, and visible components.
• Power-on self-test (POST): Install the card in an appropriate test rack and verify startup behavior and available status indications.
• Card detection test: Confirm that the system identifies the communication card with the expected rack position, card type, and serial information.
• Ethernet test: Establish a controlled 10/100 Mbit Ethernet connection and verify stable network communication.
• Modbus RTU test: Verify RS485 communication using the applicable baud-rate configuration and controlled test equipment.
• Modbus TCP test: Confirm register access through the Ethernet interface using an approved test configuration.
• OPC UA verification: Where the test environment supports it, confirm that the card exposes the configured data interface correctly.
• Communication handshake verification: Confirm successful data exchange between and representative monitoring modules.
• Redundancy test: For units intended for redundant service, verify pairing behavior and check for firmware mismatch or redundancy-related diagnostic events.
• Temperature and hardware diagnostics: Verify that the card reports normal hardware and temperature status during the test period.
• Final inspection: Record model number, serial information, firmware version, test results, physical condition, and shipment photographs.

Emerson’s current specification identifies the as the System Communication Card for Modbus RTU/TCP and OPC UA, while the operating manual states that it is required for communication with the -UM, -TP, and -RC cards and supports configuration of the protection cards.

Procurement-Driven FAQ

Is the Eme genuinely in stock, and what is the cutoff for overnight shipping?
Stock should be confirmed against the physical warehouse inventory before order release. For urgent maintenance requirements, request same-day stock confirmation, test status, packing completion time, and carrier cutoff before placing the shipping order.

How do you verify the condition of an obsolete or sur?
The unit should undergo OEM visual inspection, part-number verification, mechanical inspection, controlled power-up, card-detection testing, Ethernet testing, Modbus testing, and communication handshake verification. For redundant applications, firmware compatibility should also be checked.

What warranty applies if arrives defective?
The applicable warranty period and return conditions should be stated on the quotation or commercial documentation before purchase. For tested surplus inventory, the agreed coverage should address hardware defects attributable to the supplied card while excluding damage caused by incorrect installation, wiring, external power faults, or unauthorized modification.

Are there firmware compatibility issues engineers should check?
Yes. Firmware should be checked when is used in a redundant pair because Emerson documents a redundancy firmware-version mismatch diagnostic. The installed AMS Machine Studio configuration should also be reviewed before commissioning.

Can be installed in any AMS 6500 rack?
No. The card is designed for -xR System Racks, with specified communication-slot positions and a dedicated 30-pole connector. Verify the exact rack model, slot assignment, and existing communication architecture before approving the replacement.
