Emerson CE4003S2B6 | DeltaV 16-Channel Analog Input Terminal Block

Description

• Brand: Emerson
• Full Model Number: CE4003S2B6
• Lifecycle Status: Legacy DeltaV M-series Traditional I/O
• Core Function: Standard I/O termination block for 16-channel 4–20 mA HART analog input
• Top 3 Technical Specs: 16 analog input channels; 4–20 mA signal; HART support
• System Family: DeltaV M-series Traditional I/O
• Stock & Condition: New Surplus; physical condition, labeling, and packaging to be verified before shipment

Supply Chain & Technical Deep Dive

The Emerson CE4003S2B6 is a termination component used with the DeltaV M-series Traditional I/O architecture. Emerson’s official product data identifies it specifically as the Standard I/O Termination Block associated with the 16-channel, 4–20 mA HART analog input card. That distinction matters during procurement: CE4003S2B6 should not automatically be treated as the electronic analog input card itself. The termination block provides the field-side connection point for the corresponding M-series AI arrangement.

For maintenance teams supporting legacy DeltaV cabinets, replacing the exact termination-block variant can avoid unnecessary cabinet rewiring and configuration work. CE4003S2B6 is specified for 16-channel 4–20 mA HART analog input applications, while Emerson also lists different M-series termination variants for other wiring arrangements. The S-series equivalent uses the different part number SE4003S2B6, and Emerson’s documentation states that M-series Traditional I/O cards are not physically compatible with S-series controller carriers. Treat the series designation as a hardware-selection parameter, not simply a catalog naming difference.

Migration, Compatibility & Field Traps

Field Trap — M-Series vs. S-Series

Do not substitute SE4003S2B6 simply because the model number appears similar. Emerson identifies SE4003S2B6 within the S-series Traditional I/O family, while belongs to M-series Traditional I/O. The physical architecture and carrier compatibility must be checked before any cross-series replacement.

Field Trap — Wiring Variant

is one of several termination-block configurations in the M-series family. Emerson separately lists CE4003S2B7 for a 4-wire arrangement and other variants for fused, mass-I/O, simplex, and redundant applications. Confirm the existing termination-block part number against cabinet drawings and the installed AI card before releasing a replacement order.

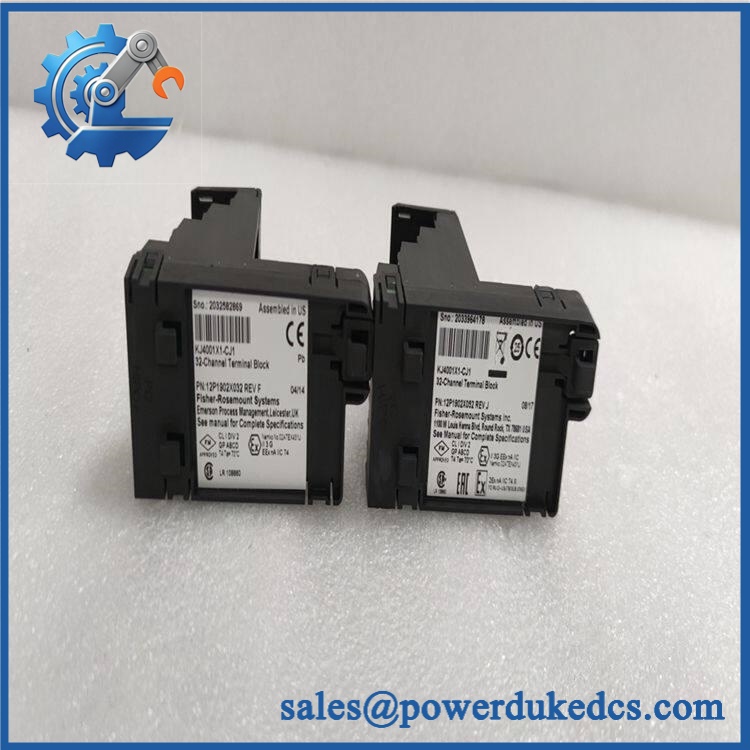

Emerson CE4003S2B6

Quality Assurance & Testing SOP

OEM Identification Check

• Inspect Emerson branding, model marking, labels, connectors, terminal positions, and manufacturing markings.
• Compare the physical part number against .
• Check label quality, mounting features, connector condition, and signs of rework or unauthorized modification.
• Photograph the identification label before shipment for the procurement record.

Mechanical Inspection

• Inspect the terminal block housing for cracks, deformation, corrosion, contamination, or damaged mounting points.
• Check terminal positions and connector interfaces for bent, loose, or damaged contacts.
• Verify that the mechanical configuration matches the customer’s existing M-series installation.

Electrical Continuity Check

• Perform controlled continuity checks across the applicable terminal paths.
• Verify that no unintended short exists between adjacent signal paths.
• Check terminal integrity under controlled test conditions without exceeding the component’s documented electrical limits.

System-Level I/O Test

• Install the with a compatible M-series 16-channel 4–20 mA HART AI configuration.
• Apply calibrated 4–20 mA test signals through the applicable channels.
• Confirm signal routing and channel identification at the DeltaV system level.
• Where the test fixture supports HART, perform communication verification with a compatible HART instrument.
• Run representative I/O load testing across multiple channels rather than validating only one terminal position.

Final QC

• Recheck model number and quantity.
• Record test results and inspection photographs.
• Protect connectors and terminal interfaces against ESD and mechanical damage during packing.
• Verify packaging condition before dispatch.

Procurement-Driven FAQ

Is Emerson currently available for replacement projects?

Availability depends on current warehouse stock and condition. For urgent maintenance requirements, provide the required quantity and delivery destination so stock condition and dispatch timing can be confirmed before purchase order release.

Is the analog input card itself?

No. Emerson’s M-series documentation identifies as the Standard I/O Termination Block associated with the 16-channel 4–20 mA HART analog input card. This distinction should be checked when matching a replacement against the customer’s BOM.

Can be replaced with SE4003S2B6?

Do not assume interchangeability. SE4003S2B6 belongs to the S-series Traditional I/O family, while is an M-series component. Emerson states that M-series Traditional I/O cards are not physically compatible with S-series controller carriers.

Does require firmware configuration?

The termination block itself does not function as a standalone firmware-bearing controller. Firmware and system compatibility should instead be checked on the associated DeltaV I/O electronics and controller architecture.

What should be confirmed before ordering?

Provide the complete part number, required quantity, existing DeltaV I/O series, associated AI card model, wiring arrangement, condition requirement, and delivery deadline. For a legacy cabinet, a photograph of the existing termination block label and cabinet connection area can also reduce the risk of ordering the wrong M-series variant.
