Description
- Brand — Emerson
- Full Model Number — KJ2003X1-BA2
- Lifecycle Status — Legacy / lifecycle status to be verified
- Core Function — DeltaV M-Series controller module
- Top 3 Technical Specs — KJ2003X1 controller family; DeltaV M-Series architecture; controller-level process control and I/O management
- Stock & Condition — New Surplus; exact hardware revision, label, and physical availability to be verified
Supply Chain & Technical Deep Dive
A failed Emerson KJ2003X1-BA2 can interrupt controller-level operation in an installed DeltaV system, making exact spare identification important during an outage. The complete part number should be matched against the existing controller before procurement. For legacy installations, replacing the controller with an incorrectly specified variant can create additional configuration work, commissioning delays, or an unexpected need to modify the existing DeltaV architecture.
The KJ2003X1-BA2 belongs to the Emerson DeltaV M-Series controller hardware family and should be evaluated together with the installed I/O architecture, controller configuration, firmware, and associated system components. From a TCO perspective, maintaining a correctly matched spare can reduce the cost of emergency engineering, controller reconfiguration, cabinet work, and extended production downtime. Hardware revision and firmware compatibility should be verified before installation rather than assumed from the KJ2003X1 designation alone.
Migration, Compatibility & Field Traps
| Replacement Case | Classification | Engineering Guidance |
|---|---|---|
| Exact KJ2003X1-BA2 with matching DeltaV configuration | Drop-in Replacement | Appropriate when controller hardware, firmware, I/O architecture, and configuration are confirmed. |
| Related variant with different suffix or revision | Software Compatible | Verify firmware, controller configuration, database, and associated I/O before commissioning. |
| Different DeltaV controller architecture | Hardware Modification Required | May require controller replacement engineering, configuration changes, wiring changes, or associated hardware modifications. |
⚠️ Field Traps — Watch Out
Controller configuration mismatch: A replacement controller should not be commissioned solely because the model family appears identical. Verify the existing DeltaV configuration, firmware requirements, controller settings, and associated I/O before placing the unit into service.
Cold-start and configuration recovery: Before removing an operating controller, confirm that the current DeltaV configuration and required controller data are backed up according to the site’s change-control procedure. This is especially important when replacing hardware in a legacy installation.

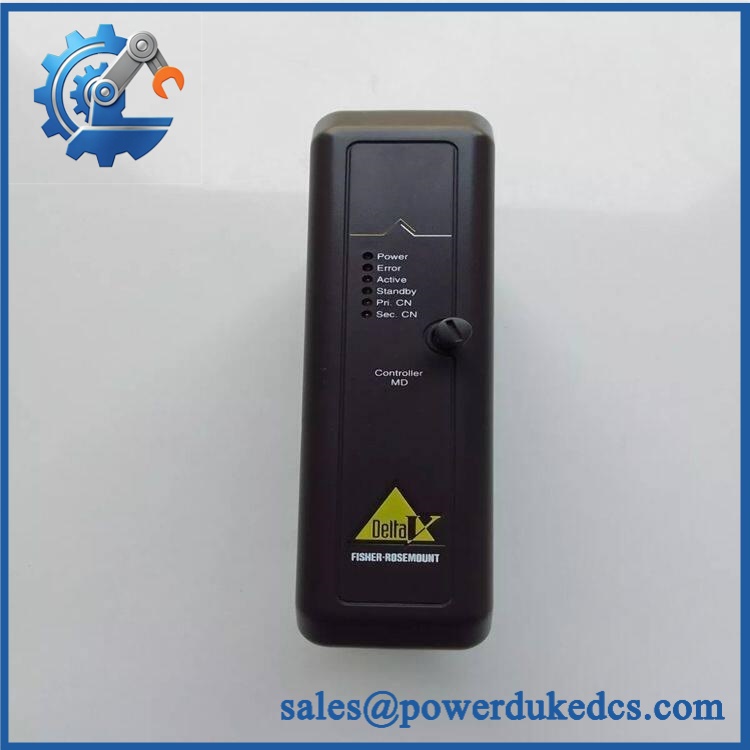

Emerson KJ2003X1-BA2
Quality Assurance & Testing SOP
For New Surplus Emerson -BA2 inventory, the pre-shipment QA process should include:
- OEM anti-counterfeit visual inspection — Verify Emerson identification, complete -BA2 marking, labels, connectors, PCB condition, mounting features, and evidence of relabeling or unauthorized rework.
- Part-number and revision verification — Record model, serial, hardware revision, and visible manufacturing information and photograph the nameplate.
- Power-on self-test (POST) — Install the controller in an approved compatible DeltaV test arrangement and check startup behavior and available status indicators.
- Controller communication test — Verify communication between the controller and compatible DeltaV test infrastructure where available.
- I/O communication verification — Confirm representative communication with the associated I/O architecture using an approved test configuration.
- Configuration recognition check — Verify that the test environment recognizes the controller hardware correctly and that no unexpected hardware faults are reported.
- Connector inspection — Check mating interfaces for bent pins, contamination, oxidation, or mechanical damage.
- Final ESD inspection — Handle the controller under ESD controls, protect exposed electronics, photograph the final condition, and secure the unit for shipment.
Procurement-Driven FAQ
Is Emerson -BA2 genuinely in stock?
Physical inventory should be confirmed before order acceptance. For an urgent replacement, provide the required quantity and destination so available stock and shipping cutoff can be checked.
How do you verify the condition of a New ?
The controller should undergo complete part-number verification, visual inspection, connector inspection, and functional testing in a compatible DeltaV environment where available. Actual unit photographs and test records can be supplied for procurement review.
What warranty applies?
The applicable warranty period should be stated on the quotation or order confirmation. Coverage depends on the stock condition and functional test results.
Could firmware compatibility affect the replacement?
Yes. Controller compatibility depends on the installed DeltaV architecture, controller configuration, firmware requirements, and associated I/O hardware. Engineering should verify these parameters before commissioning.
What information should I provide when requesting this controller?
Provide the complete part number, quantity, existing controller photographs, nameplate information, hardware revision, and relevant DeltaV system details when available. This gives the supplier enough information to verify the replacement against the installed system.
