Description
- Brand: Emerson
- Full Model Number: KJ4006X1-BD1
- Alternate Part Number: 12P4722X052
- System/Series Family: DeltaV S-Series I/O
- Core Function: Interface terminal block connecting field wiring to compatible S-Series I/O cards
- Top 3 Hardcore Specs: 35 VDC; 1 A/channel; two 3×7 DIN connector interfaces
- Terminal Architecture: Six screw terminal assemblies with five field-device connectivity channels
- Operating Temperature: -40°C to +70°C
- Stock Status: New Surplus — current availability requires confirmation
Emerson identifies KJ4006X1-BD1 as an S-Series Interface Terminal Block in its S-Series hardware reference documentation. Certification documentation also identifies the 35 VDC, 1 A/channel rating and the two 3×7 DIN connector interface.
Commercial-Technical Deep Dive
When an S-Series terminal interface is damaged, the real problem is usually wiring continuity, not controller logic. KJ4006X1-BD1 provides the physical interface between field devices and compatible DeltaV S-Series I/O cards. It mounts on the S-Series carrier and mates with supported I/O hardware through two 3×7 DIN connectors. Six screw-terminal assemblies provide five separate field-device connectivity paths (the exact circuit usage depends on the connected card).
The electrical margin is clear: the interface is rated at 35 VDC and 1 A per channel, with an environmental operating range of -40°C to +70°C. That rating matters during cabinet replacement because the terminal interface must match the field-side electrical arrangement, not merely the carrier slot. The documented product family also distinguishes this interface block from 8-channel, fused, thermocouple, RTD, and other S-Series terminal variants.
Compatibility & Installation Traps
Migration/Compatibility
KJ4006X1-BD1 is an Interface Terminal Block, not an independent I/O signal-processing card. Emerson’s S-Series hardware reference lists it under the S-Series terminal-block family, while certification documentation specifies connection to an S-Series carrier and compatible S-Series I/O cards.
For a same-part replacement, no control-logic rewrite should normally be expected because the terminal block does not execute the control application. The critical check is hardware matching: carrier type, companion I/O card, keying arrangement, field wiring, and the installed project documentation.
Do not substitute KJ4006X1-BD1 merely because another terminal block has the same physical footprint. Emerson documents separate terminal blocks for 8-channel I/O, fused I/O, thermocouple/mV, RTD/resistance, and other signal types.
⚠️ Field Traps (Watch Out)
Keying errors can create a preventable mismatch. The S-Series architecture uses keyed terminal interfaces matched to the associated I/O card. Verify the installed key position before inserting the card.
Field power must be isolated before disturbing the wiring. Documented installation guidance calls for power and field energy isolation before disconnection. Record every conductor, terminal, and shield position first; then verify the replacement assembly before re-energizing.

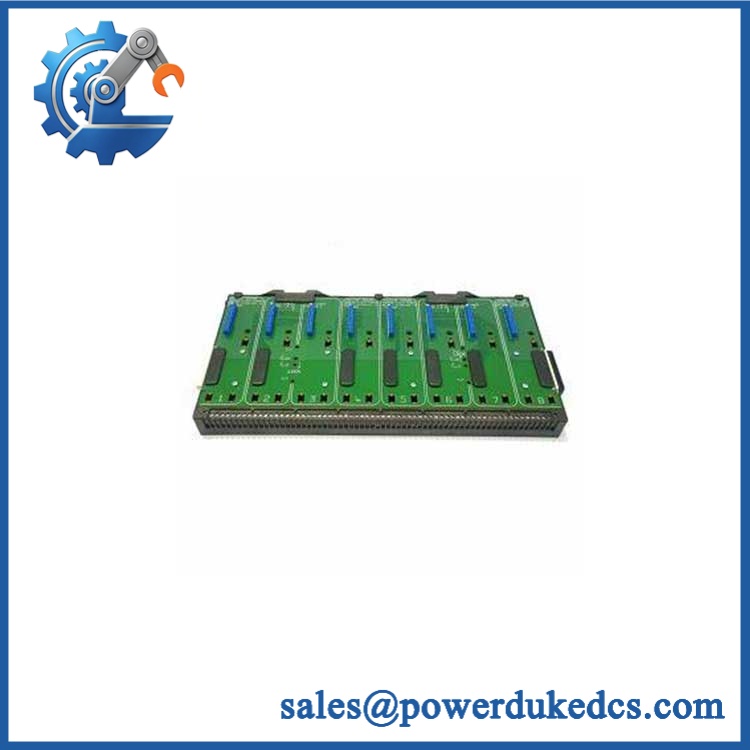

Emerson KJ4006X1-BD1
Quality Assurance SOP
Each KJ4006X1-BD1 can be processed through a documented pre-shipment inspection:
- OEM anti-counterfeit visual inspection: model marking, label format, connector geometry, housing condition, and board-independent identification features checked against known Emerson hardware references.
- Mechanical inspection: DIN interfaces, screw terminals, keyed mechanism, mounting surfaces, and exposed contacts checked for cracks, deformation, corrosion, or contamination.
- Terminal continuity inspection: representative terminal paths checked for continuity and unintended open circuits.
- Companion-card POST verification: where the terminal block is supplied with a compatible test assembly, the connected I/O card is powered and its ERR/RUN LEDs are checked during POST.
- Communication handshake verification: the companion S-Series I/O card is checked for carrier-level recognition and controller communication.
- Interface fit verification: connector engagement, keying position, and carrier mounting checked without forcing mechanical interfaces.
- Final traceability: part-number photos, condition records, test results, and packaging photographs retained before shipment.
Because is a passive interface terminal block, POST and communication checks apply to the connected DeltaV I/O test assembly, not to the terminal block as an active processor.
CRO-Driven Buyer FAQ
Is Emerson still a usable DeltaV spare?
remains identified in Emerson’s May 2024 S-Series hardware reference as the Interface Terminal Block. The document also lists the broader S-Series terminal-block family and associated I/O hardware. Exact lifecycle status should be checked against the revision installed at your site.
What is the alternate part number for ?
A documented cross-reference identifies 12P4722X052 as an alternate part number for . Verify the complete marking before placing a replacement order.
Can be hot-swapped?
Do not assume unrestricted hot swapping. Installation guidance calls for isolating applicable power and field energy before disconnecting the terminal interface. The safe procedure depends on the complete S-Series hardware arrangement and plant maintenance rules.
What I/O cards are compatible with this interface block?
The documented certification information states that mates with the S-Series Actuator-Sensor Interface Card or Serial Card through two 3×7 DIN connectors. The correct combination should still be confirmed against the installed project configuration and hardware revision.
What warranty and technical support are provided?
A 12-month hardware warranty can be offered under standard sales terms. Support covers product identification, shipment documentation, and hardware-related troubleshooting. Plant-specific control logic changes, field wiring errors, commissioning work, and process engineering remain the customer’s responsibility.
