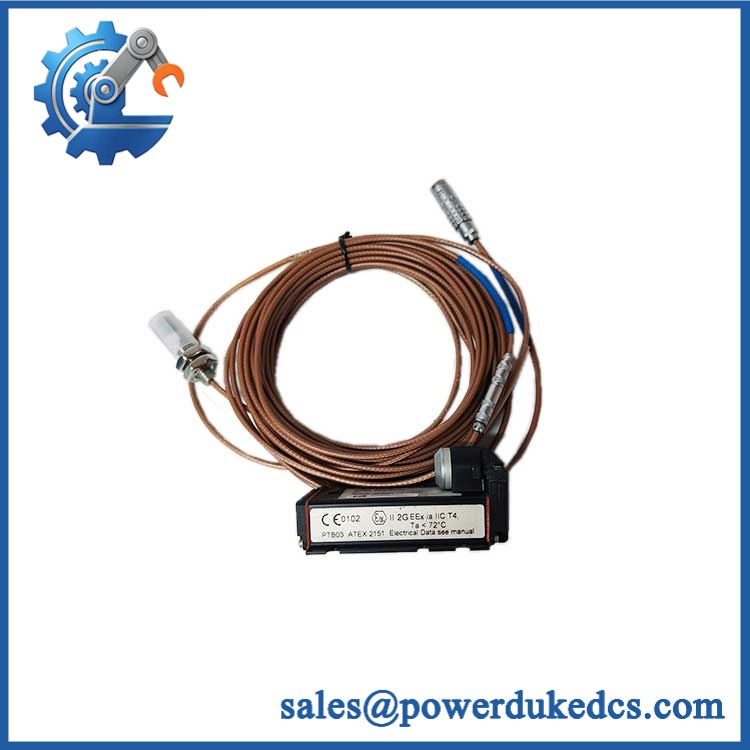

Emerson PR6423/002-041 | 8mm Eddy Current Sensor

Description

• Brand: Emerson EPRO
• Full Model Number: PR6423/002-041
• System/Series Family: EPRO PR6423 8mm Eddy Current Sensor
• Core Function: Non-contact measurement of shaft displacement and vibration
• Top 3 Hardcore Specs: 8 mm sensing diameter; 2 mm linear measurement range; 0.5 mm nominal initial air gap
• Configuration: 45 mm case thread; adapter plug fitted; 10 m cable; open cable end
• Sensor Construction: PEEK tip; stainless steel case; PTFE cable
• Stock Status: New Surplus subject to physical stock confirmation

Commercial-Technical Deep Dive

A turbomachinery probe failure can force an otherwise healthy monitoring channel offline. PR6423/002-041 is an 8 mm non-contact eddy-current sensor for shaft displacement and vibration measurement. The PR6423 family is specified for steam turbines, gas turbines, hydro turbines, compressors, pumps, gearboxes, and fans. The sensor works with compatible EPRO converters such as CON 011, CON 021, or CON 041 rather than functioning as a standalone 4–20 mA transmitter. Emerson’s current documentation identifies shaft vibration, shaft displacement, and speed as supported mechanical measurements.

For this exact suffix, published configuration data identifies a 45 mm case thread, fitted adapter plug, 10.0 m cable, and open cable termination. The PR6423 platform provides a 2 mm linear measurement range with a 0.5 mm initial air gap. Emerson specifies 8 V/mm incremental scale factor, IP66 protection, and sensor operation from -35°C to +180°C; the cable and connector are rated separately to +150°C. These figures matter during replacement because probe geometry, cable routing, and installation gap directly affect measurement accuracy (actual results depend on target material and mounting conditions).

Compatibility & Installation Traps

Migration/Compatibility

PR6423/002-041 is a sensor, not a programmable module. No firmware flash or logic rewrite applies to the probe itself. Replacement work should focus on the complete measurement chain: probe, cable, compatible converter, monitoring channel, mechanical mounting, and target shaft geometry.

The family requires a compatible eddy-current converter. Emerson documents use with CON 011, CON 021, and CON 041. The sensor therefore should not be purchased as a universal substitute for every variant without checking the existing converter and connection arrangement.

For /002-041 specifically, published configuration data lists a 45 mm case thread and 10 m cable with open termination. Verify those details against the installed probe before ordering.

⚠️ Field Traps (Watch Out)

Trap 1 — Incorrect probe gap: The specification uses a 0.5 mm initial air gap and a 2 mm linear measurement range. A mechanically convenient mounting position is not necessarily an electrically correct one. Set the gap according to the applicable Emerson installation procedure and target geometry.

Trap 2 — Cable temperature exposure: The sensor assembly is rated to +180°C, but Emerson separately specifies -35°C to +150°C for cable and connector. Routing the cable through a hotter zone can invalidate the installation even when the probe body remains within its rating.

Trap 3 — Machine protection during service: Emerson states that sensor replacement or testing can affect machine protection. Machine protection should be deactivated as required before service and restored afterward by trained personnel.

Emerson PR6423/002-041

Quality Assurance SOP

Each /002-041 unit should pass a controlled pre-shipment inspection.

• OEM anti-counterfeit visual inspection: Check Emerson/EPRO markings, model identification, label consistency, connector construction, and probe geometry.
• Mechanical inspection: Inspect the sensing tip, threaded case, adapter plug, cable sheath, and cable termination for cracks, deformation, corrosion, or contamination.
• Part-number verification: Confirm the complete suffix against the purchase requirement.
• Configuration check: Verify the 45 mm case thread, 10 m cable arrangement, and open cable end where this configuration is required.
• Electrical inspection: Check cable continuity and insulation condition with test limits appropriate to the sensor assembly.
• Signal-chain validation: Connect the probe to a compatible EPRO converter and verify the expected sensor response under controlled conditions.
• Power-on self-test: Inspect the ERR/RUN LEDs on the associated converter or monitoring rack, not on the passive sensor itself.
• Communication handshake verification: Confirm normal converter-to-monitor communication where the installed architecture includes a digital monitoring interface.
• ESD handling: Use grounded handling procedures during inspection, testing, and packing.
• Photo record: Record the probe tip, label, cable, connector, and final packaging condition before shipment.

Emerson’s installation guide requires trained personnel for commissioning and service. It also identifies visible damage or malfunction as conditions requiring the device to be removed from service.

CRO-Driven Buyer FAQ

Is Emerson /002-041 an obsolete sensor?

The family is a legacy EPRO measurement platform that remains documented by Emerson. Current Emerson documentation still covers the sensor family, while specific inventory status depends on available production and surplus stock. For an exact replacement, verify the complete suffix and connected converter before purchase.

Can /002-041 be replaced while the machine is running?

Do not assume live replacement is permitted. Emerson warns that sensor testing, replacement, or decommissioning can impair machine protection and may cause a shutdown. Follow the site’s isolation procedure and the applicable Emerson service instructions.

Does /002-041 need a firmware update?

No firmware update is normally performed on the sensor itself. The probe is part of an analog measurement chain. Any configuration or software requirements belong to the associated converter and monitoring system.

What converter is required?

Emerson documents sensors for use with CON 011, CON 021, and CON 041 converters, depending on the connection arrangement. Verify the converter model already installed before ordering a replacement probe.

What warranty and technical support are provided?

Warranty: 12 months from shipment for the supplied unit, subject to the quoted product condition and sales terms. Technical support covers model verification, documentation review, connection checks, and replacement guidance. Site commissioning, machinery alignment, protection-system validation, and application-specific engineering remain outside standard product support.
