Description

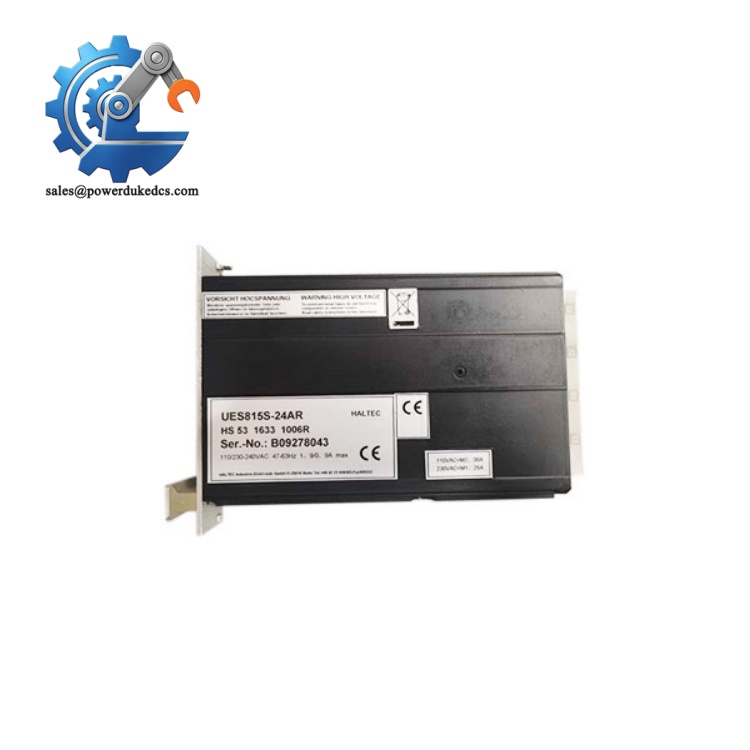

EPRO UES815S-24A/24V | Industrial DC Supply Asset

2. Unboxing & Physical Snapshot

Brand & Model: EPRO UES815S-24A/24V
Product Type: 24 VDC industrial power supply module designed for automation control systems, DCS cabinets, and electronic instrumentation power distribution. The unit is commonly identified as a DIN-rail mounted DC power supply module.
Physical Dimensions (Approximate W × H × D):
- Approximately 35 × 125 × 110 mm
- DIN-rail mounting housing design
- Compact enclosure with front terminal access and status indication.
Estimated Shipping Weight: Approximately 0.45–0.85 kg including protective packaging.
What’s in the Box:
- EPRO UES815S-24A/24V power supply module
- DIN-rail mounting clip
- Input/output terminal connections
- Status indicator interface
- Protective ESD packaging
- OEM documentation when supplied

3. Product Introduction

Structure B — Architecture Hook

The EPRO UES815S-24A/24V mounts into the control cabinet power distribution layer, providing regulated 24 VDC supply for automation electronics, I/O assemblies, and instrumentation circuits. Its position upstream of sensitive control hardware makes installation quality important; unstable DC power can create communication faults, unexpected resets, or diagnostic alarms across connected modules.

This DIN-rail power module is maintained as a critical cabinet spare rather than a simple electrical accessory. Verify terminal polarity, mounting condition, and load requirements before replacement (—especially in systems where redundant power arrangements support continuous process operation). The front terminals, enclosure vents, and mounting clips should be inspected before energizing the unit.

4. Core Technical Specifications

Parameter	Value
Manufacturer	EPRO
Model Number	UES815S-24A/24V
Product Type	DIN-Rail 24 VDC Power Supply Module
Output Voltage	24 VDC
Output Current	Approximately 8 A continuous
Mounting Method	DIN rail EN 60715
Dimensions	Approximately 125 × 35 × 110 mm
Weight	Approximately 0.45 kg
Input Type	AC industrial supply input
Status Monitoring	DC OK / alarm relay indication
Protection Functions	Overcurrent, short circuit protection
Cooling Method	Natural convection
Operating Temperature	Approximately -20°C to +60°C
Protection Rating	IP20
Communication Interface	Status relay / diagnostic contacts
Power Dissipation	Load dependent
Memory	No user-accessible memory

EPRO UES815S-24A/24V

Specifications should be verified against the installed revision and cabinet power design before replacement approval.

5. ? Global Compliance & Industry Certifications

Expected regulatory approvals and compliance considerations for the EPRO UES815S-24A/24V include:

CE Mark — applicable for electrical safety and electromagnetic compatibility requirements.
RoHS Compliance — dependent on manufacturing revision.
IEC 61000 EMC Compliance — relevant for industrial electromagnetic environments.
UL/cUL Recognition — may apply depending on the specific production revision and regional approval package.
ATEX/IECEx Compatibility — generally dependent on the complete cabinet installation and hazardous-area enclosure certification.
Marine approvals (DNV GL) — applicable only when included in a certified marine automation package.

CE and EMC compliance are important because cabinet power supplies operate continuously beside processors, communication modules, and analog measurement circuits. Poor power quality can affect system availability and create difficult troubleshooting conditions.

Verify specific lot certifications with OEM.

6. ? Long-Term Storage & Asset Preservation Guide

Keep the UES815S-24A/24V inside the original anti-static (ESD) packaging during warehouse storage. Protect the screw terminals, DIN clips, and ventilation openings from dust contamination.

Maintain storage humidity below 60% RH. Moisture exposure can accelerate terminal oxidation and reduce electrical contact reliability after years on the shelf.

Inspect stored power modules every 12–24 months. Check the enclosure, terminal screws, mounting latch, and status indicators before installation. For long-stored switching power supplies, controlled power-up testing is recommended to verify output stability before connecting expensive control hardware.

7. Physical Installation Prerequisites

Install on a compatible 35 mm DIN rail.
Verify cabinet depth and terminal access clearance before mounting.
Leave approximately 50 mm clearance above and below the module for convection cooling.
Ensure unrestricted airflow around ventilation openings.
Connect protective earth according to cabinet grounding standards.
Confirm AC input voltage before energizing.
Verify 24 VDC polarity before connecting downstream devices.
Tighten all screw terminals to the approved torque specification.

Do not install directly beside high-temperature equipment such as braking resistors or large drives without thermal review.

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q1. What HS Tariff Code is commonly used for the EPRO UES815S-24A/24V?

A: The final Harmonized System classification depends on the importing country’s customs interpretation and the declared function of the equipment. Industrial DC power supplies are generally reviewed under electrical power supply equipment categories. Confirm the final HS code with your customs broker before export.

Q2. Does Country of Origin affect this EPRO power module?

A: Yes. COO documentation can influence import duties, customer qualification requirements, and audit traceability. Maintain the original label, supplier documentation, serial records, and receiving inspection reports.

Q3. Should shipping insurance be included for this spare power module?

A: Recommended. Although compact, the unit contains switching electronics and terminal assemblies that can be damaged by impact or moisture exposure. Use protective packaging and insure the shipment for replacement value.

Q4. Does the UES815S-24A/24V include firmware pre-loaded?

A: No. This is a power supply module and does not contain operational firmware. Verify output voltage, current capacity, terminal arrangement, and cabinet compatibility before installation.
