GE 04220FL11232A | New Surplus Mark VI RXI Controller

Description

• Brand: GE
• Full Model Number: 04220FL11232A
• Product Type: RXI Controller Module
• System/Series Family: GE Mark VI / Intelligent Platforms RXI
• Core Function: Industrial computer/controller module used for distributed control and data communication within compatible turbine control architectures
• Top 3 Hardcore Specs: 24 VDC input | 3.4 A maximum current | RXI controller architecture
• Processor Reference: Intel Core i7-3555LE / Intel Celeron configuration reported for associated RXI-042 IPC
• Memory Reference: 4 GB reported for associated RXI-042 IPC
• Operating Temperature: 0 to 60°C reported for associated RXI-042 IPC
• Stock Status: New surplus / condition to be confirmed per available unit

The 04220FL11232A is identified in multiple technical references as a GE Intelligent Platforms RXI controller associated with the Mark VI control environment. A GE-related inventory catalog specifically describes it as an Intelligent Platforms RXI Controller. Another technical listing identifies 24 VDC input and 3.4 A maximum current, while an NSN record associated with the part identifies the RXI-042 IPC with 4 GB memory, an Intel Core i7-3555LE processor, and a 0–60°C operating range.

Module 3: Technical Product Introduction

When an RXI controller fails in a legacy turbine-control installation, the problem is not simply a missing PLC scan. The controller provides computing and communication functions within the control architecture, so a failed unit can interrupt the exchange of operational data between control nodes and supervisory systems. GE 04220FL11232A is identified as an RXI Controller Module for the GE Mark VI environment and is also cataloged under GE Intelligent Platforms.

The available specifications point to a 24 VDC supply with 3.4 A maximum input current. Associated RXI-042 IPC data specifies an Intel Core i7-3555LE processor, 4 GB memory, and a 0–60°C operating range. These figures are useful when evaluating the computing platform, but they should not be treated as a complete 04220FL11232A datasheet without confirming the exact hardware revision. —For a replacement, the installed RXI version, connector configuration, storage device, and software image deserve as much attention as the processor specification.

Module 4: Application Scenarios & Field Realities

• In GE Mark VI turbine-control cabinets, the RXI controller can serve as part of the computing and communication layer supporting turbine control operations. A replacement should therefore be checked against the existing system architecture rather than treated as an ordinary PLC CPU.
• During a controller failure, verify the 24 VDC supply before condemning the RXI unit. The documented input specification is 24 VDC, with a reported maximum current of 3.4 A. A collapsing auxiliary supply can produce controller symptoms that resemble a failed computer module.
• For legacy turbine systems still using RXI-based computing hardware, replacement planning should include the operating image and installed application environment. Swapping hardware without preserving the required software configuration can leave a physically functional controller unable to rejoin the control system.
• Where the existing installation operates in a controlled equipment room, the reported 0–60°C operating range provides a useful reference for environmental assessment. Do not use that number as permission to ignore cabinet airflow; actual thermal conditions should be measured at the installed equipment.

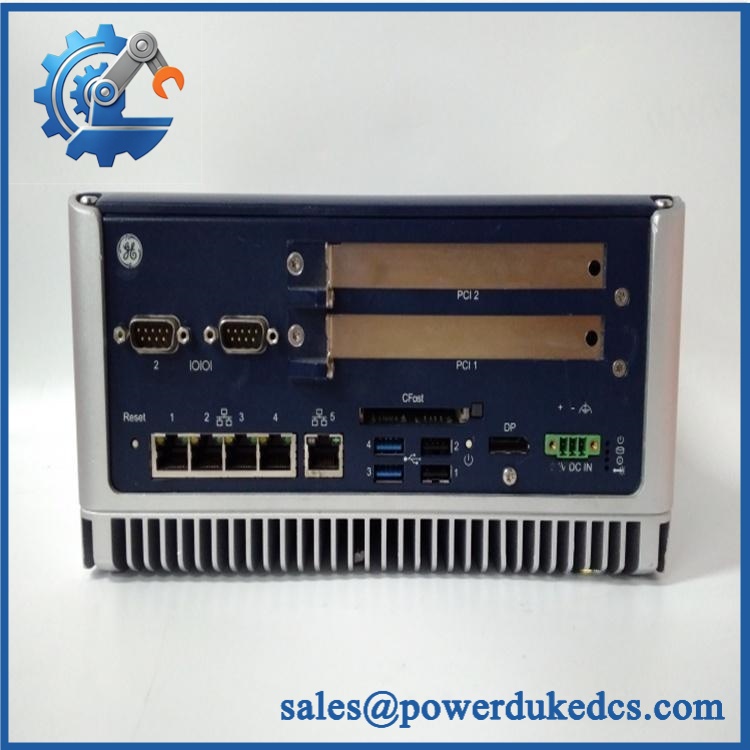

GE 04220FL11232A

Module 5: Migration, Compatibility & Installation Traps

Replacement Matrix

Field Traps — Watch Out

1. Hardware revision is critical.
Some available references specifically identify 04220FL11232A V2.2 and describe the unit as an RXI controller with multiple Ethernet ports, 24 VDC input, and 3.4 A current. Do not assume that every 04220FL11232A revision has an identical internal configuration.

2. Do not confuse RXI with a conventional PLC CPU.
Several current listings misclassify this part as a generic PLC CPU or Ethernet module. More specific technical references identify it as an RXI Controller Module / Intelligent Platforms RXI Controller. For procurement, the exact part number and existing system documentation should take precedence over a seller’s generic category.

3. Check the 24 VDC supply under load.
The controller’s documented maximum current is 3.4 A. Measure the supply at the controller during startup rather than checking only the unloaded cabinet voltage.

4. Preserve the software environment.
An exact hardware replacement does not necessarily mean an immediate operational replacement. Before removing the original unit, document its software version, configuration, storage media, network settings, and application image where site procedures permit.

Module 6: Quality Assurance SOP

Before shipment, each available GE 04220FL11232A should pass a documented laboratory-style inspection:

1. OEM identification inspection — Verify GE / GE Intelligent Platforms markings, complete 04220FL11232A part number, hardware revision, serial information, and front-panel labeling.
2. OEM anti-counterfeit visual inspection — Examine PCB workmanship, component markings, connector construction, labels, fasteners, and evidence of unauthorized rework.
3. Physical inspection — Check the enclosure, mounting points, Ethernet/communication connectors, power terminals, ventilation openings, and PCB assembly for damage or contamination.
4. Part-number verification — Confirm the physical unit against the customer’s requested 04220FL11232A designation before testing and packing.
5. 24 VDC power-on test — Apply controlled DC power and verify startup behavior while monitoring input current for abnormal consumption.
6. Processor and memory verification — Where the appropriate diagnostic environment is available, verify the installed computing hardware against the expected RXI configuration. Associated RXI-042 documentation identifies an Intel Core i7-3555LE processor and 4 GB memory.
7. Ethernet/interface verification — Test the applicable communication ports and confirm link establishment, interface recognition, and expected data exchange.
8. Controller diagnostic verification — Check startup diagnostics and operating status for hardware faults or unexpected system errors.
9. Communication handshake verification — Connect the controller to a compatible test environment and confirm communication with the expected network/control components.
10. Thermal and stability test — Run the controller under controlled conditions long enough to identify abnormal heating, intermittent resets, or communication loss.
11. Final visual inspection — Recheck connectors, labels, enclosure condition, and mounting hardware after testing.
12. Test record and packaging — Record the part number, revision, serial information, test results, inspection date, and packaging condition before dispatch.

QA note: For this RXI controller, a generic PLC-style RUN/ERR LED POST statement should not be invented unless the exact hardware revision provides those indicators. Power-up diagnostics, processor/memory recognition, Ethernet testing, communication handshake, and sustained operation provide more meaningful acceptance evidence for this computer-based controller.
