GE 136C2511-1 | 600 V Auxiliary Contact Block

Description

• Model: 136C2511-1
• Brand: General Electric (GE)
• Series/System: GE contactor and starter / electrical interlock hardware
• Part Type: Auxiliary Contact Block
• Core Function: Adds one normally open and one normally closed auxiliary contact to the associated GE switching assembly for control, indication, and interlock circuits.
• Key Specs: 600 V rating, 1NO + 1NC contact arrangement, approximately 0.25 lb / 0.11 kg listed weight, and cross-reference to GE Fanuc IC2956A205 in industrial parts records.

Product Introduction

A failed auxiliary contact can leave the main power circuit apparently healthy while the control logic reports an unexpected state. On older GE contactor and starter equipment, the 136C2511-1 provides the auxiliary switching path used for status indication, permissive logic, electrical interlocking, or downstream control circuitry. Commercial records identify it as a 600 V, 1NO/1NC auxiliary contact block.

The part is also cross-referenced to IC2956A205, which GE documentation identifies as an Electrical Interlock Block. That relationship is important during legacy migration because the two identifiers can appear in different maintenance records for related hardware. GE’s historical parts documentation also places IC2956A205 within its electrical interlock hardware family.

Core Technical Specifications

The most consistently documented electrical identity is 600 V with one normally open and one normally closed contact. The public records reviewed do not provide enough authoritative information to assign a detailed contact-current rating or exact mechanical envelope, so those values should be confirmed from the original GE equipment documentation before engineering release.

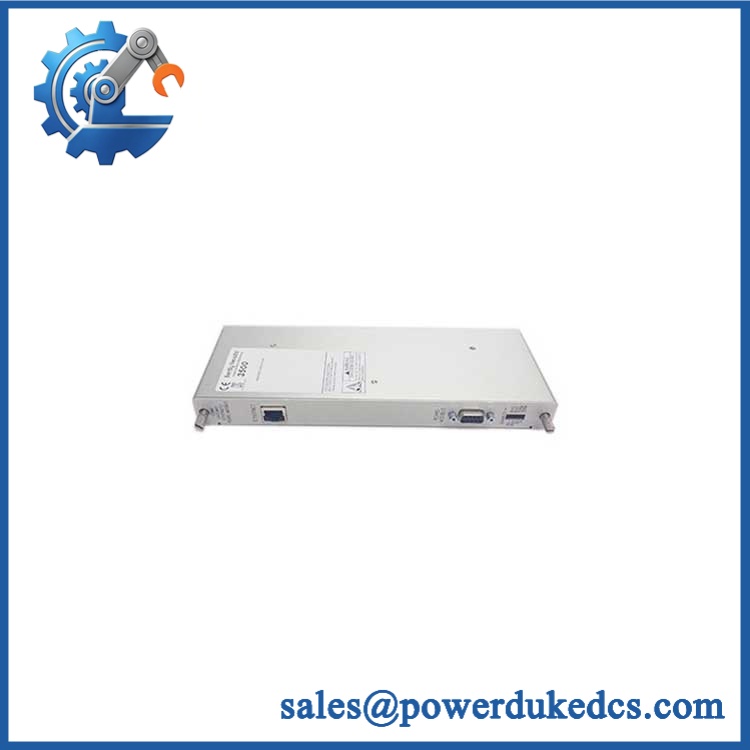

GE 136C2511-1

Application Scenarios & Pain Points

In a motor-control cabinet, an auxiliary contact may be used to confirm that a contactor has physically changed state rather than merely accepting a command from the PLC. If the contact block develops high resistance or fails mechanically, the control sequence can show a false “not running” condition even though the main contactor appears to energize.

For electrical interlocking, the NC portion of the 1NO/1NC arrangement can participate in a permissive chain that prevents conflicting switching states. A single welded or open auxiliary contact can therefore interrupt a sequence that otherwise has no obvious PLC fault.

Across legacy plant equipment, spare identification becomes more difficult when old documentation uses IC2956A205 while purchasing records use 136C2511-1. The historical GE reference confirms IC2956A205 as an electrical interlock block, so both identifiers should be retained in the asset record.

At high-cycle installations, contact wear should be considered. Frequent motor starts, repeated interlock operations, and electrically noisy coils can accelerate degradation of the auxiliary switching path, even when the main power contacts remain serviceable.

🚨 Common Error Codes & Diagnostic Symptoms

This is a passive electromechanical contact accessory, so there is no standardized firmware fault-code set. Troubleshooting relies on measured contact state, continuity, insulation condition, and system behavior.

Symptom/Code: NO contact remains open after contactor energization → Diagnosis: Mechanical actuation may be incomplete, the auxiliary contact elements may be worn, or the attachment mechanism may not be reaching the required travel. → Action: Verify actuator movement and continuity under the energized/de-energized states; replace the contact block when the contact path is defective.

Symptom/Code: NC contact remains closed when the contactor is energized → Diagnosis: The auxiliary switching mechanism is not transferring correctly, potentially because of contact welding, mechanical damage, contamination, or incorrect mounting. → Action: Isolate the circuit, verify the contact state with a meter, and replace the module when the transition is not within specification.

Symptom/Code: Interlock circuit drops out intermittently → Diagnosis: A worn contact surface, loose mechanical attachment, vibration, or marginal termination can create an intermittent control path. → Action: Check terminal torque, mechanical engagement, continuity under vibration-free operation, and contact resistance; replace the auxiliary block when the fault follows the part.

🚨 Cross-Reference & Lifecycle Migration

Cross-Reference

The clearest documented alternate identification is:

GE 136C2511-1 ↔ GE Fanuc

Industrial product records explicitly list as an alternate part number for 136C2511-1, while GE’s historical parts guide identifies as an Electrical Interlock Block.

That does not mean every GE auxiliary-contact assembly using an IC2956-series reference is automatically interchangeable. Confirm the mechanical interface, contact arrangement, actuator geometry, and host contactor/starter family before approving the substitution.

Firmware Requirement

No firmware flashing is required. This is an electromechanical auxiliary-contact component with no programmable processor, application memory, or field firmware.

Lifecycle Status

Status: Discontinued / Legacy

Current commercial records explicitly identify 136C2511-1 as discontinued by the manufacturer.

For plants still carrying the associated GE switching equipment, this status supports a controlled spare strategy. Store the part under the exact GE number and retain as a searchable alternate identifier. A critical spare should be mechanically verified before being released to maintenance rather than selected solely from a text-based cross-reference.

Field Engineer’s Tech Notes

Warning 1 — Do not test it in-circuit with the control voltage still present.
An auxiliary contact may sit inside a live control path tied to a higher-voltage circuit. Isolate the relevant supply, prove zero energy, then check continuity. A continuity measurement taken across a live circuit is not a troubleshooting shortcut.

Warning 2 — Check the mechanical actuator, not only the terminals.
A good contact block will still produce a false state if it is mounted incorrectly or the host contactor does not provide the correct mechanical travel. Verify the contact transition while manually observing the actuator movement (this is especially important on older assemblies where mounting hardware may have accumulated wear).

Strict QA & Testing SOP

Step 1 — Part identity check
Confirm 136C2511-1 on the physical label or component marking where available. Record the alternate identification when it appears in the supplied documentation.

Step 2 — Visual inspection
Check the molded housing, contact interface, mounting features, actuator surfaces, screws, terminals, and insulation barriers for cracking, discoloration, deformation, corrosion, or contamination.

Step 3 — Mechanical inspection
Operate the contact actuator through its intended travel without forcing it. Confirm that the mechanism returns cleanly and does not bind.

Step 4 — Continuity test
With the device isolated, verify the NO and NC contact states in the corresponding mechanical positions. Record the measured continuity and transition behavior.

Step 5 — Contact-resistance check
Where suitable test equipment is available, measure closed-contact resistance using the plant’s approved low-resistance test method. Compare the result with the applicable GE equipment specification rather than applying an arbitrary acceptance limit.

Step 6 — Insulation inspection
Check insulation condition and terminal-to-body clearance for visible tracking, carbonization, or contamination before the part is released.

Step 7 — Assembly verification
Where a compatible GE contactor/interlock test fixture is available, install the contact block and confirm both auxiliary channels change state correctly as the associated mechanism operates.

Step 8 — Documentation
Record part number, alternate identifier, physical condition, electrical test results, serial/lot information where available, and inspector/date information.

Step 9 — Packaging
Use protective packaging that prevents actuator movement and terminal damage during transport. Keep the item dry and protected from conductive contamination.

Step 10 — Test evidence
Test videos are available for applicable tested units, together with inspection photographs and recorded electrical results.

Buyer’s FAQ

Can I hot-swap the 136C2511-1?

No blanket hot-swap rule should be applied. This component is installed within an electrical switching assembly and may be associated with hazardous voltage. Follow the host GE contactor/starter maintenance procedure, isolate energy, and verify zero voltage before removal unless the approved system procedure explicitly permits another method.

How do I verify a New Original 136C2511-1?

Ask for photographs of the actual part, not a generic catalog image. Verify the 136C2511-1 marking, contact arrangement, housing geometry, mounting interface, and packaging condition. Since the part is discontinued, documenting the physical identity before shipment is particularly useful when the buyer requires legacy OEM traceability.

Is a direct replacement for 136C2511-1?

The available records identify as an alternate part number for 136C2511-1. GE’s historical parts guide describes as an electrical interlock block. Even with that cross-reference, verify the actual mechanical and electrical application before treating the two identifiers as a universal drop-in substitution.

What warranty should I expect?

Warranty depends on the seller’s written commercial terms. Because the manufacturer has discontinued the part, obtain the warranty period, covered failure modes, and return requirements before purchase. Keep the pre-shipment photographs and QA test record with the serial or lot information where available.
