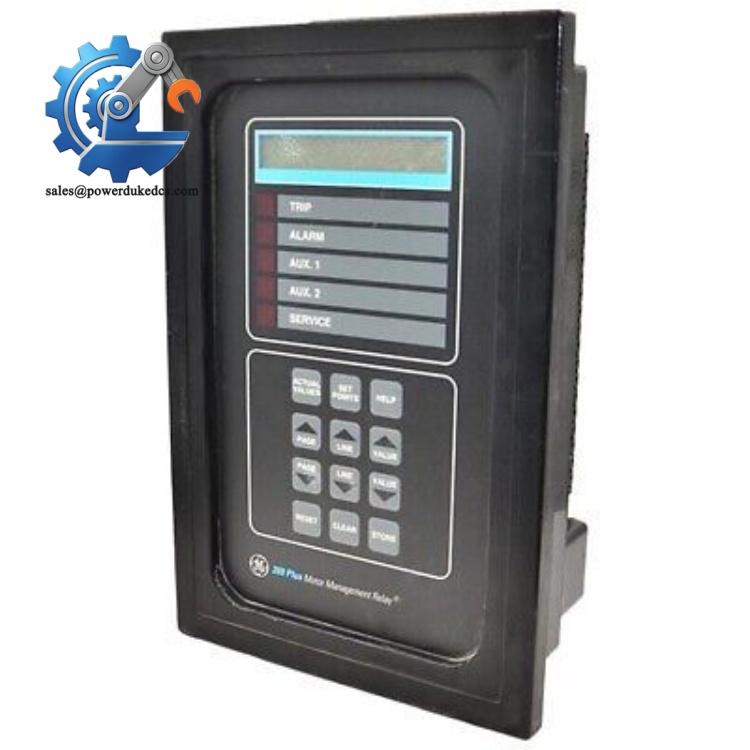

GE 269PLUS-100P-HI | 80-265VAC Motor Management Unit

Description

1. GE 269PLUS-100P-HI | 80-265VAC Motor Management Unit

Unboxing & Physical Snapshot

• Model & Brand: GE Multilin 269PLUS-100P-HI
• Product Type: Microprocessor-based motor management and protection relay for three-phase AC motor applications. The 269 Plus provides protection functions including overload, thermal monitoring, phase loss, ground fault, and RTD-based temperature monitoring.
• Approximate Physical Dimensions (W × H × D): Approximately 140 × 190 × 300 mm (panel housing dimensions vary by mounting configuration)
• Estimated Shipping Weight: Approximately 3.6 kg (8 lb) including protective packaging.
• What’s in the Box:
  • GE Multilin 269PLUS-100P-HI motor management relay
  • Front display/keypad assembly
  • Terminal block hardware (configuration dependent)
  • Mounting clips or brackets when supplied
  • Protective packaging
  • Product identification label with serial number and revision information
  • Technical documentation when available

Product Introduction

The GE Multilin 269PLUS-100P-HI is built around a motor protection architecture where accurate sensing, thermal modeling, and reliable trip logic protect critical rotating equipment. Installed in a protective relay panel, the unit monitors electrical and mechanical conditions through current inputs, RTD temperature inputs, and programmable protection settings. (Correct CT wiring and terminal identification are essential because incorrect input scaling can produce nuisance trips or missed protection events.)

This relay belongs to the legacy GE 269 Plus motor management family, which has been discontinued by GE as a current production product line. Existing installations remain common in industrial plants because these relays are embedded in validated motor control schemes where replacement requires careful matching of hardware options, settings files, and protection philosophy.

Core Technical Specifications

GE 269PLUS-100P-HI

? Global Compliance & Industry Certifications

Expected regulatory considerations for the GE Multilin 269PLUS-100P-HI include:

• CE Mark: Applicable for supported configurations meeting electromagnetic compatibility requirements.
• UL/cUL Recognition: May apply to the relay product family or installed control assembly.
• IEC 255 / IEC protection relay standards: Relevant for insulation, disturbance testing, and environmental qualification.
• ANSI C37.90 testing considerations: Applicable to protective relay transient immunity requirements.
• ATEX/IECEx: Not normally a standalone certification for this relay; hazardous-area approval depends on the complete motor control enclosure and system certification.
• Marine approvals (DNV GL): Only applicable for specially certified equipment packages.

For motor protection applications, compliance is not limited to the relay label. The complete protection circuit—including CTs, wiring, enclosure, and grounding—must maintain the approved design basis.

Verify specific lot certifications with OEM.

? Long-Term Storage & Asset Preservation Guide

Keep the 269PLUS-100P-HI in its original anti-static packaging during storage. The front display assembly, terminal contacts, and internal PCB components can degrade when exposed to uncontrolled humidity or industrial contaminants.

Maintain warehouse humidity below 60% relative humidity and avoid storage near battery charging areas or chemical processing zones. Corrosive vapors can damage terminal plating and internal connectors over time.

Inspect stored relays every 12-24 months. Check the terminal screws, display window, enclosure seals, and internal condition if inspection is permitted. For units stored for extended periods, verify electrolytic capacitor condition before applying full operating voltage (controlled power-up testing is recommended).

Physical Installation Prerequisites

• Install the GE 269PLUS-100P-HI inside a suitable protective relay or motor control cabinet.
• Maintain adequate cabinet airflow and leave approximately 50 mm clearance around ventilation paths where enclosure design allows.
• Mount the relay securely using the approved panel cutout and retaining hardware.
• Verify protective earth grounding through the metal enclosure structure.
• Use correctly rated CT wiring and maintain proper polarity orientation.
• Confirm terminal torque values before energization.
• Separate RTD wiring from high-current motor conductors to reduce electrical noise interference.

Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code should be used when exporting a GE 269PLUS-100P-HI?

A: Motor protection relays are commonly reviewed under HS classifications related to electrical control and protective apparatus, such as 8536 or related headings depending on the customs authority and declared function. Confirm the final Harmonized System classification with your customs broker.

Q: Does Country of Origin affect acceptance of this GE Multilin relay?

A: Yes. COO affects import documentation, customer audit records, and traceability requirements. Legacy GE Multilin products may have different manufacturing locations depending on production period, so verify the nameplate information before receiving.

Q: Should this relay ship with insurance coverage?

A: Recommended. The 269PLUS-100P-HI contains precision electronics, display components, and specialized motor protection circuitry. Damage during transport can be difficult to repair, especially for discontinued equipment.

Q: Does the relay include the latest firmware already installed?

A: Firmware depends on the hardware revision and previous service history. The relay may arrive with an earlier firmware version or stored configuration settings. Verify firmware revision, protection parameters, and motor application settings before returning the unit to service.
