GE 531X303MCPBBG1 | AC Power Supply Board | OEM

• Model & Brand: GE General Electric 531X303MCPBBG1
• Series: 531X / DC300
• Part Type: MCPB Power Supply Board, commonly identified as Supply Board 4463
• Physical Dimensions: Approximately 144 × 144 × 72 mm based on aftermarket dimensional records; verify the actual board before final cabinet or freight documentation.
• Estimated Shipping Weight: Approximately 1.5–1.6 kg including a protected board assembly; use the actual packed weight for freight calculation.
• What’s in the Box: 531X303MCPBBG1 power-supply board, ESD shielding protection, rigid PCB protection, and applicable QC documentation. Mounting screws, mating cables, external power supplies, and other DC300 hardware are not assumed unless specifically included.

Product Introduction

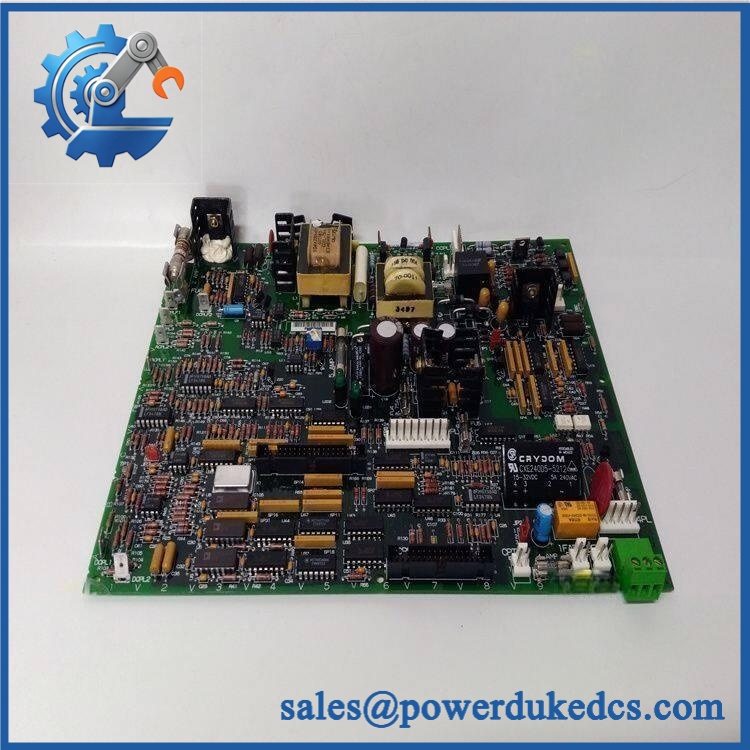

Inside a legacy GE 531X/DC300 drive or control system, the 531X303MCPBBG1 serves as a power-supply circuit board rather than a programmable processor or conventional I/O module. Its physical construction includes a substantial transformer, multiple fuses, adjustable components, LEDs, and numerous passive components, so the board should be handled as a power-conversion assembly rather than a low-energy signal card.

The exact electrical configuration deserves verification before procurement. Public industrial records consistently identify the part as a GE supply board / power supply board, while some aftermarket listings publish conflicting input and output ratings that are not sufficiently supported for this exact revision. Treat those figures as unverified (especially for high-energy applications) and use the original DC300 schematic or board markings as the engineering authority.

Core Technical Specifications

Power-stage identification

The MCPB designation and the 4463 identifier strongly indicate a power-supply function within the 531X hardware family. The presence of the transformer and multiple fuse positions also confirms that this is materially different from the MCP control/logic boards found elsewhere in the same equipment family.

One important procurement rule: do not use an internet-listed 380–525 VAC / 24 VDC / 30 A / 720 W specification as a certified value for this exact board without checking the OEM drawing. That combination appears in some aftermarket descriptions, but the available evidence is not strong enough to present it as an exact MCPBBG1 rating.

GE 531X303MCPBBG1

🚨 Global Compliance & Industry Certifications

The 531X303MCPBBG1 is legacy power electronics, so regulatory status should be evaluated against the complete GE /531X equipment configuration.

• CE Mark: Verify against the applicable historical GE/ system documentation.
• UL/cUL: Confirm the complete drive/control equipment certification and the specific board revision.
• ATEX / IECEx: Do not assume standalone hazardous-area approval for this power-supply PCB.
• Marine / DNV GL: No standalone marine approval should be assumed without project-specific documentation.
• Electrical Safety: The presence of a transformer and high-energy capacitors makes proper isolation and discharge procedures essential during service.
• Country of Origin: Establish from manufacturing traceability or supplier documentation.
• HS Classification: Confirm the final Harmonized System classification with the importing-country customs broker.

For plant safety, a power-supply board must be treated differently from low-voltage signal electronics. Incorrect isolation, fuse selection, or application of the wrong input voltage can create an electrical hazard even before any control-system malfunction occurs.

Verify specific lot certifications with OEM.

🚨 Long-Term Storage & Asset Preservation Guide

Keep the 531X303MCPBBG1 in an ESD shielding bag with the transformer, fuse area, and connector terminals physically protected. The board is relatively heavy and contains components that can be damaged by impact, so avoid stacking unprotected boards directly on top of one another.

Maintain a dry, clean storage environment without condensation. For long-term warehouse preservation, a practical target is below approximately 60% RH; avoid corrosive atmospheres and large temperature swings that can create moisture around high-voltage surfaces.

This board contains substantial power-supply circuitry and many capacitors. GE’s exact storage/reforming procedure should govern any capacitor reconditioning; do not apply arbitrary high voltage to a long-stored board merely to “wake it up.” First perform visual inspection, resistance checks, fuse verification, and controlled bench testing using the correct procedure.

Record the board’s complete 531X303MCPBBG1 identity and visible revision/date-code information. For long-term asset management, retain photographs showing the transformer, fuse population, potentiometer positions, and connector layout before the board is stored.

Physical Installation Prerequisites

Install the MCPBBG1 only in the specified GE 531X/ assembly and confirm the original mounting position before removal. The eight mounting points and ten male connection terminals should be checked against the existing board.

Verify the system’s power-distribution schematic before energizing. Because reliable public documentation does not establish one universal input/output rating for every MCPBBG1 record, do not select a replacement supply voltage from a reseller listing alone.

Preserve the original fuse ratings and potentiometer settings. Never replace a fuse with a higher-current type simply because it repeatedly opens; repeated fuse operation can indicate a downstream short, capacitor fault, transformer problem, or incorrect load.

Maintain the cabinet’s designed cooling and service access. There is insufficient evidence for a universal 50 mm clearance rule on this exact board, so the original GE cabinet drawing should control.

Use appropriate protective grounding and isolation procedures when servicing the board. Allow stored energy to discharge through the approved circuit before handling the PCB, particularly around the transformer, rectifier, and large capacitor area.

Buyer’s FAQ — Logistics & Compliance Focus

Q: What HS Tariff Code should be used for 531X303MCPBBG1?
A: It is a specialized industrial power-supply PCB, but the final Harmonized System classification depends on the importing country’s tariff schedule and customs interpretation. Have the importer or customs broker confirm the code before preparing the commercial invoice.

Q: Does the shipment location establish Country of Origin?
A: No. COO should come from manufacturing or traceability documentation for the actual 531X303MCPBBG1 or its production lot. Warehouse location and export port do not establish manufacturing origin.

Q: Does this board include the latest firmware pre-loaded?
A: No. The MCPBBG1 is a power-supply board, not a programmable CPU or communication controller. There is no conventional application firmware to load; electrical configuration, fuse selection, jumper or potentiometer settings, and system wiring are the relevant commissioning controls.

Q: How should shipping insurance and physical handling be managed?
A: Insure the board for its documented commercial replacement value and retain photographs of the part number, transformer, fuses, connector terminals, and packaging before dispatch. Use an ESD shielding bag, rigid support around the PCB, cushioning beneath the transformer area, and moisture protection so the approximately 1.5–1.6 kg assembly cannot shift or flex during transportation.
