Description
Technical Specifications
| Specification | Details |
|---|---|
| Brand | GE / General Electric |
| Part Number | 531X303MCPBDG1 |
| Series | 531X |
| Product Type | Motion Control Processor (MCP) Board |
| Primary Function | Motor motion-control / feedback processing |
| Typical Platform | GE DC-300 / AC-300 drive systems |
| Processor | Motorola MC68000, 16 MHz — reported by a current technical listing; verify against the board revision before engineering use. |
| Feedback / Control | Resolver and digital motion-control functions are reported for this configuration. |
| Digital I/O | 16 configurable 24 VDC I/O points — secondary-source specification; verify against OEM documentation. |
| Analog Inputs | 2 channels, reported as 0–10 VDC, 12-bit — verify exact board revision. |
| Communication / Interface | 50-pin ribbon-cable interface to the associated regulator/control hardware. |
| Operating Temperature | 0 to +55 °C, according to secondary technical data. |
| Board Dimensions | Approximately 12.7 × 6.0 in (322.6 × 152.4 mm), secondary-source value. |
| Power Supply | Board-level supply is provided by the host drive system; exact required rails should be verified from the applicable GE drive manual |
| Mounting | Internal drive/control cabinet PCB assembly |
| Lifecycle | Legacy / discontinued |
| Weight | Not reliably verified for the exact board |
| Country of Origin | To be verified for the actual unit |

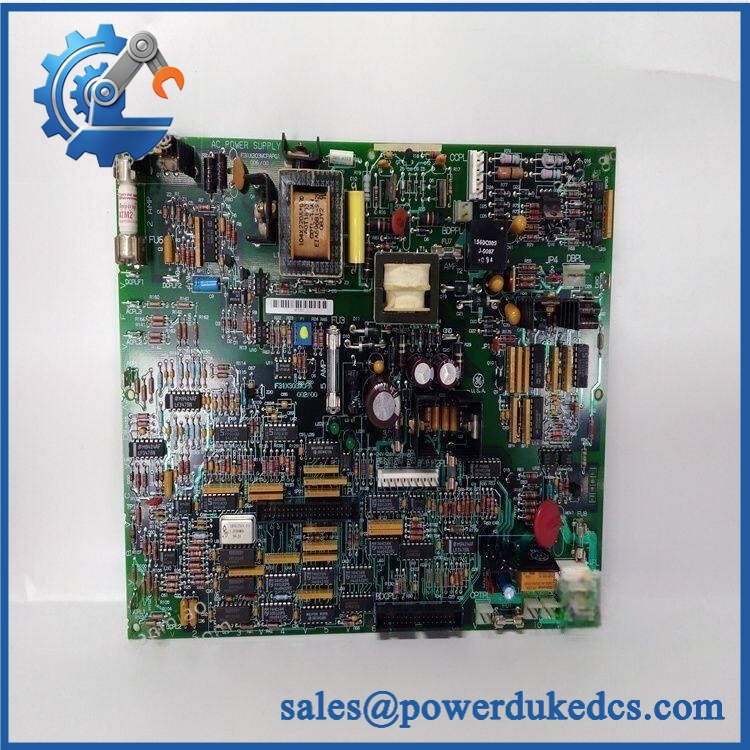

GE 531X303MCPBDG1
Product Overview
The 531X303MCPBDG1 is part of GE’s 531X family of printed-circuit boards used in older drive and motion-control equipment. A current technical listing identifies this exact part as a Motion Control Processor (MCP) board, while a separate legacy GE inventory list also identifies 531X303MCPBDG1 as a “POWER SUPPLY BD.”
That discrepancy is important. The MCP designation is strongly supported by current part-specific documentation, but some legacy inventory catalogs use generic or inconsistent functional labels for 531X boards. For a product page, I would use “Motion Control Processor Board” as the primary description and avoid calling it a standalone power-supply board without an OEM drawing.
Functional Role
The MCP board operates within the host GE drive architecture rather than functioning as a standalone PLC. Its reported functions include processing motor-control information and handling feedback/control signals associated with the drive. The available technical description reports resolver-related circuitry, digital I/O, and a ribbon-cable connection to the main regulator hardware.
The BDG1 suffix is therefore significant when sourcing a replacement. Similar-looking 531X MCP boards exist with different suffixes, and the available GE inventory list shows several variants, including:
- 531X303MCPBAG1
- 531X303MCPBBG1
- 531X303MCPBDG1
- 531X303MCPARG1
- 531X303MCPAMG1
These should not be treated as automatically interchangeable.
Compatible Equipment Considerations
The 531X family is associated with older GE drive platforms, including DC-300 and AC-300 equipment.
Before ordering a replacement, verify:
| Verification Item | Why It Matters |
|---|---|
| 531X303MCPBDG1 | Confirms the exact board |
| Board revision / artwork number | Different revisions may change components or firmware |
| Host drive model | Establishes the intended system architecture |
| Connector arrangement | Prevents incorrect physical/electrical substitution |
| Feedback type | Important for resolver/encoder-based applications |
| Digital I/O configuration | Must match the original installation |
| Firmware / EPROM markings | Relevant to legacy motion-control systems |
| Existing board photos | Useful for confirming layout and connector identification |
Lifecycle and Spare-Parts Risk
The 531X series is legacy GE drive hardware, and current availability is primarily through specialist industrial automation inventory. A current listing explicitly describes the exact 531X303MCPBDG1 as a discontinued product, while secondary suppliers continue to list the part for replacement and repair.
For plants operating older GE drives, the main procurement issue is usually not only availability but also configuration matching. An alternative 531X MCP board may have a similar physical format but different feedback, I/O, or control functionality.
Important Specification Note
The processor, I/O, resolver, and dimensional figures above come from secondary technical sources, not a GE OEM datasheet located for this exact part number. I would therefore use them for product identification and preliminary procurement, but not as installation-critical values without checking the applicable GE drive documentation.
FAQ
What is GE 531X303MCPBDG1?
It is a GE 531X Series Motion Control Processor (MCP) board used in legacy GE drive systems.
Which drives use this board?
The 531X family is associated with GE DC-300, AC-300, and related drive platforms.
Is 531X303MCPBDG1 a PLC CPU?
No. It is a drive motion-control PCB, not a general-purpose PLC CPU.
Is it interchangeable with other 531X303 MCP boards?
Not automatically. Different suffixes represent different board variants, so the complete part number and host-drive configuration should be matched.
Is the part discontinued?
Current secondary-market sources describe the exact part as discontinued, although replacement inventory remains available through specialist suppliers.
