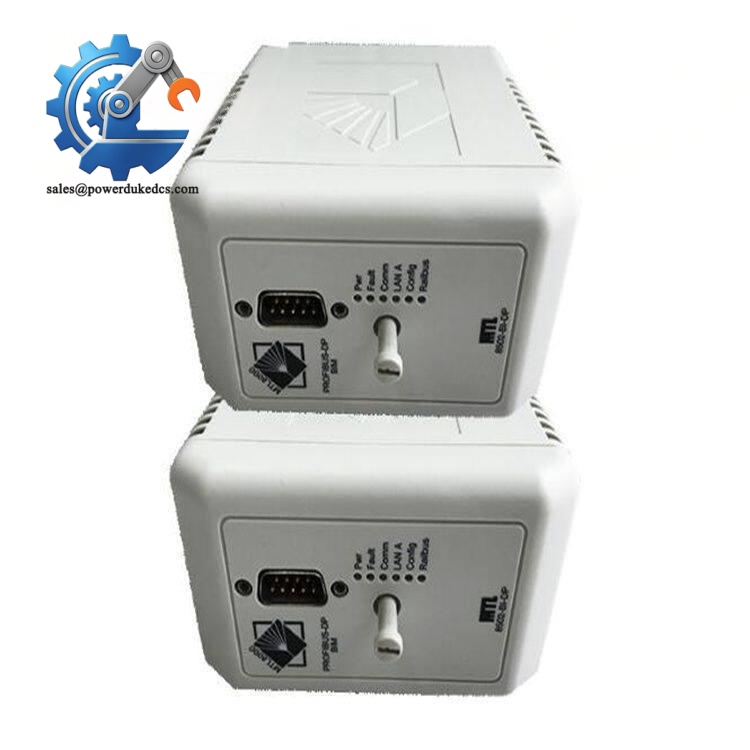

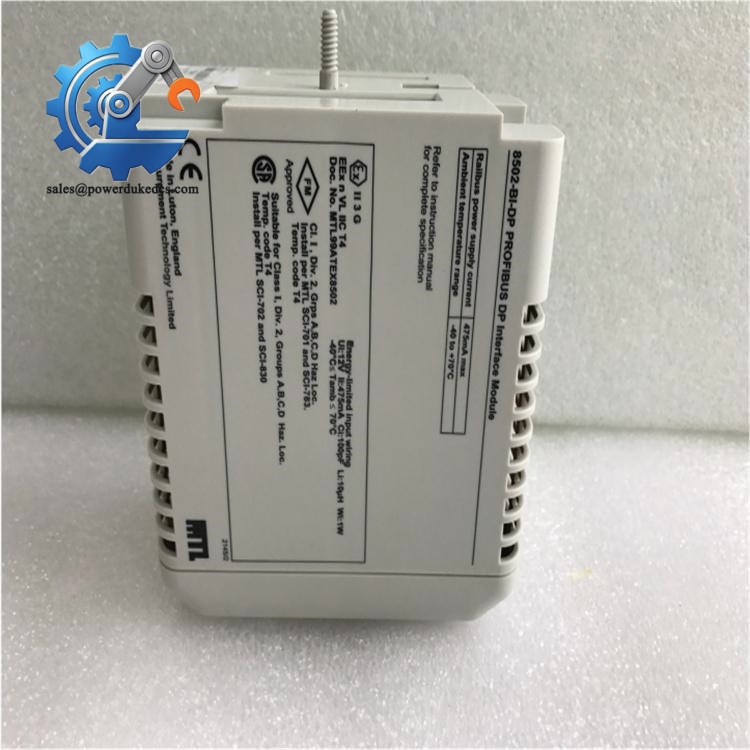

GE 8502-BI-DP | 8000 Series PROFIBUS Controller Spare

Description

1. GE 8502-BI-DP | 8000 Series PROFIBUS Controller Spare

Unboxing & Physical Snapshot

• Model & Brand: GE 8502-BI-DP Bus Interface Module (BIM) for GE/MTL 8000 Series I/O systems.
• Approximate Physical Dimensions: Approximately 4.0 × 2.5 × 1.6 in. (102 × 63 × 40 mm), depending on carrier configuration.
• Estimated Shipping Weight: Approximately 0.8 lb (0.35 kg) for the module; packaged shipment weight may approach 4.4 lb (2 kg) with protective materials.
• What’s in the Box:
  • GE 8502-BI-DP PROFIBUS-DP Bus Interface Module
  • Protective anti-static (ESD) packaging
  • Identification label and serial information
  • Installation documentation when supplied
  • Carrier hardware only if ordered as a complete assembly

Product Introduction

The GE 8502-BI-DP sits at the communication layer between GE/MTL 8000 Series I/O modules and a PROFIBUS-DP host network. Installed on the appropriate carrier assembly, the module manages field I/O data exchange through the internal rail bus while presenting process information to the external control network. Correct carrier seating and terminal alignment are critical because communication faults can appear identical to field device failures.

This module is frequently found in process applications where diagnostic visibility and reliable field communication are required. The enclosure environment matters. Keep the connector surfaces clean, protect the DIN-rail assembly from excessive vibration, and verify PROFIBUS termination settings before commissioning (a small configuration error can interrupt an entire node segment).

Core Technical Specifications

GE 8502-BI-DP

Global Compliance & Industry Certifications

Expected regulatory approvals and compliance considerations for the GE 8502-BI-DP include:

• CE Mark compliance for applicable European industrial installations
• RoHS environmental compliance depending on production revision
• ATEX/IECEx suitability when installed within an approved hazardous-area system configuration
• UL/cUL recognition where applicable to the complete control assembly
• Marine approvals such as DNV GL only when specifically certified as part of a marine-rated installation

The ATEX/IECEx classification is especially important for process facilities handling combustible materials. A certified installation helps ensure that electrical equipment installed in hazardous zones does not create an unacceptable ignition risk.

Verify specific lot certifications with OEM.

Long-Term Storage & Asset Preservation Guide

Keep the 8502-BI-DP inside its original ESD shielding bag. The PROFIBUS interface circuitry and connector contacts are sensitive to electrostatic discharge and contamination during extended storage.

Store the module in a controlled warehouse environment below 60% relative humidity. Avoid storage near chemical vapors, battery rooms, or areas where corrosive contaminants may attack connector plating.

Inspect stored inventory annually. Confirm the module label, firmware records, and configuration history match the asset database before issuing it to maintenance (legacy communication modules often fail audits because traceability records were neglected).

Physical Installation Prerequisites

• Install the 8502-BI-DP only on the approved GE/MTL 8000 Series carrier assembly.
• Mount on a properly grounded DIN rail or approved panel mounting system.
• Maintain approximately 50 mm clearance above and below the cabinet assembly for airflow where cabinet design permits.
• Verify PROFIBUS cable shielding and grounding practices before startup.
• Confirm RS-485 termination settings match the network topology.
• Ensure the retaining clips and module locking features are fully engaged before energizing the system.

GE 8502-BI-DP

Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is normally used for the GE 8502-BI-DP during export?

A: This type of industrial communication module is commonly evaluated under HS categories covering electrical control equipment or data communication apparatus. Classification varies by destination country and declared function. Confirm the final Harmonized System code with your customs broker before shipment.

Q: Why should the Country of Origin be verified before purchasing?

A: COO affects import documentation, duty calculations, and contractual compliance requirements. For automation spares, confirm that the country listed on the commercial invoice matches available manufacturer records and product labeling.

Q: Does this module require shipping insurance?

A: Recommended. Although the enclosure is compact, internal communication electronics and connector assemblies can be damaged by impact, moisture exposure, or poor packaging. Use ESD protection, shock-resistant packaging, and documented receiving inspection.

Q: Does the GE 8502-BI-DP include the latest firmware pre-loaded?

A: Firmware and configuration status depend on manufacturing revision and previous service history. The module may retain configuration data through non-volatile memory, but verify compatibility with the PROFIBUS master configuration, GSD files, and installed I/O modules before commissioning.
