Description
- Model & Brand: GE Intelligent Platforms / GE Fanuc 8811-IO-DC / 8811-IO-DC-01
- Series: PAC8000 SafetyNet
- Part Type: 8-channel non-isolated discrete input/output safety module
- Physical Dimensions: Approximately 42 mm module width; use the complete carrier/field-terminal assembly dimensions for cabinet layout.
- Estimated Shipping Weight: Approximately 200 g net per module.
- What’s in the Box: 8811-IO-DC-01 module, ESD protective packaging, and applicable QC documentation. The SafetyNet carrier, field terminal, and 8914-PS-AC power supply are separate system components unless expressly included.
Product Introduction
The GE 8811-IO-DC / 8811-IO-DC-01 is a SafetyNet discrete I/O module within the PAC8000 platform, designed for safety-related applications where each of its eight channels can be assigned independently as an input or output. The module is certified for use in SIL 2 safety applications, using a 1oo1D architecture, while the actual safety function depends on the complete SafetyNet configuration and application logic.
Physically, the module mounts onto a SafetyNet carrier that provides the mechanical support, internal communications bus, and power connections. Field wiring terminates through the dedicated field terminal rather than directly onto the electronic module. This separation is important during spare-parts control (the module alone is not a complete field I/O assembly).
Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | GE Intelligent Platforms / GE Fanuc |
| Model | 8811-IO-DC |
| Alternate Identifier | 8811-IO-DC-01 |
| Series | PAC8000 SafetyNet |
| Product Type | Discrete Input/Output Safety Module |
| Number of Channels | 8 |
| Channel Configuration | Each channel independently configurable as input or output |
| Input Type | Discrete input |
| Output Type | Pulse or discrete output; application-dependent modes |
| Input Logic | Dry-contact input supported |
| Typical Input ON/OFF Threshold | 0.9 mA typical |
| Typical Open-Circuit Voltage | 24 VDC, dependent on bussed field power |
| Typical Wetting Current | 1.2 mA |
| Minimum Pulse Width Detected | 5 ms |
| Pulse Counting Frequency | Up to approximately 30 Hz without debounce |
| Input Filter | Configurable from 0 to 8 s in 1 ms steps |
| Line Fault Detection | Open/short circuit detection supported |
| Open-Circuit Threshold | <0.5 mA |
| Short-Circuit Threshold | >23.5 mA |
| Output Current per Channel | Up to 2 A |
| Continuous Module Output Current | 6 A |
| Non-continuous Module Output Current | 8 A for <10 s |
| Output Modes | Discrete, pulsed, and pattern modes |
| Pulse Width | Approximately 1 ms to 60 s |
| Channel-to-Channel Isolation | No |
| Module-to-Railbus Isolation | 250 VAC |
| Field Circuit Classification | Non-incendive |
| System Power | 100 mA typical / 150 mA maximum at 12 V |
| Field Power | 24 VDC ±10% bussed field power |
| 2-Wire Field Supply | Up to 300 mA |
| 4-Wire Field Supply | Up to 60 mA |
| Module Width | 42 mm |
| Module Weight | Approximately 200 g |
| Status Indicators | Power, fault, and individual channel LEDs |
| Module Key Code | A1 |
| Compatible Field Terminals | 8602-FT-ST, 8604-FT-FU, 8615-FT-FU; non-incendive variants include 8601-FT-ST, 8603-FT-FU, 8615-FT-4W |
| Safety Architecture | 1oo1D |
| Safety Qualification | SIL 2 |
| Firmware | Nonvolatile configuration retained without battery |
| Hot Replacement | Do not assume live replacement |
| Lifecycle Status | Active |
Input and output behavior
The important specification is the eight-channel mixed-I/O architecture. A channel can be configured as an input or output, rather than requiring a fixed input/output allocation across the entire module.
As an input, the module supports dry contacts and diagnostic line monitoring. As an output, a channel can drive loads up to 2 A, with the overall module limited to 6 A continuously and up to 8 A for less than 10 seconds.
The module also supports configurable filtering from 0 to 8 seconds in 1 ms increments. That setting should be retained in the control-system configuration because changing it can alter the observed response of field contacts.

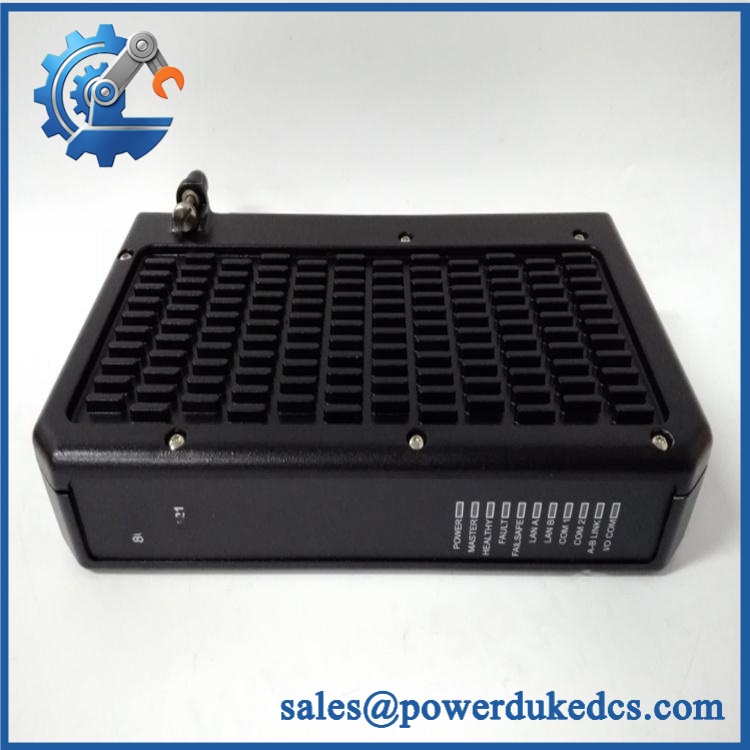

GE 8811-IO-DC 8811-IO-DC-01
🚨 Global Compliance & Industry Certifications
The 8811-IO-DC is specifically designed for SafetyNet safety-related applications, and current documentation identifies the module as suitable for SIL 2 use with a 1oo1D architecture.
- SIL 2: The module is certified for safety-related use up to SIL 2. The safety claim applies to the defined SafetyNet architecture and safety application, not merely to a loose module on a warehouse shelf.
- CE Mark: Verify the applicable PAC8000/SafetyNet conformity documentation for the exact production revision.
- UL/cUL: Confirm the complete SafetyNet installation and applicable carrier/power configuration.
- ATEX / IECEx: Do not assume hazardous-area certification for the standalone module. The field terminal and carrier configuration must match the applicable certified arrangement.
- Marine / DNV GL: No standalone marine approval should be assumed without project-specific documentation.
- Non-incendive circuits: The module documentation specifies non-incendive field-circuit characteristics for applicable installations.
- Country of Origin: Establish from actual manufacturing traceability.
- HS Tariff Classification: Confirm the final classification with the destination-country customs broker.
For plant safety, the SIL 2 / 1oo1D designation is significant because it defines a specific functional-safety capability supported by diagnostic coverage and system architecture. It should never be used as a blanket statement that every installation automatically achieves SIL 2.
Verify specific lot certifications with OEM.
🚨 Long-Term Storage & Asset Preservation Guide
Keep the 8811-IO-DC-01 inside its original ESD shielding protection until installation. Protect the field-terminal mating surfaces and module contacts from dust and oxidation; poor contact quality can create multiple apparent channel faults simultaneously.
The module stores configuration data in nonvolatile memory, so no internal battery is required to preserve its configuration through a power cycle. That simplifies shelf storage compared with battery-backed controllers, but it does not eliminate ESD or humidity-control requirements.
Maintain a dry, condensation-free warehouse. A practical long-term target below approximately 60% RH is preferable, even though the broader system environment permits higher non-condensing humidity.
Before issue, inspect the module housing, retaining clips, connector interfaces, LED window, and terminal mating surfaces. Do not reform capacitors or remove batteries as routine preservation actions; neither procedure is identified as a normal storage requirement for this module.
Physical Installation Prerequisites
Install the 8811-IO-DC only on the approved PAC8000 SafetyNet carrier with the correct field terminal. The carrier provides the internal railbus, mechanical support, and field-power interface.
The module requires 24 VDC ±10% bussed field power from the specified SafetyNet power architecture. The documentation identifies 8914-PS-AC as the source for the required bussed field power arrangement.
Pay attention to the power separation. The module’s system power is specified at 12 V, while field power is a separate 24 VDC circuit. Do not combine those supplies unless the approved SafetyNet architecture explicitly provides that connection.
Because the module is only 42 mm wide, cabinet space can appear generous, but terminal wiring and adjacent carrier connections still require service access. Follow the carrier manufacturer’s actual DIN-rail spacing and cabinet layout rather than imposing a generic 50 mm clearance.
Before replacement, record the channel-by-channel configuration, including input/output assignment, filter settings, line-fault detection, output pulse mode, and field-terminal type. Those details are part of the functional installation.
Buyer’s FAQ — Logistics & Compliance Focus
Q: What HS Tariff Code should be used for 8811-IO-DC-01?
A: The module is a safety-related industrial digital I/O component, but the final Harmonized System classification depends on the importing country’s tariff schedule and customs interpretation. Have the importer or customs broker confirm the final code before preparing the commercial invoice.
Q: Does Country of Origin come from the shipment location?
A: No. COO should be supported by manufacturing or traceability documentation for the actual 8811-IO-DC-01 or its production lot. Warehouse location and export port do not independently establish manufacturing origin.
Q: Does the 8811-IO-DC-01 include the latest firmware pre-loaded?
A: This module does not operate like a conventional programmable CPU. Configuration data is stored in nonvolatile memory, so it is retained through power cycles without an internal battery. The installed channel configuration, filter settings, and SafetyNet controller configuration should still be verified before commissioning.
Q: How should I insure and pack this small safety module?
A: Insure it for the documented commercial replacement value and photograph the model marking, connector condition, module housing, and packaging before shipment. Use ESD shielding, rigid protection around the connector and retaining surfaces, moisture protection, and internal cushioning so the approximately 200 g module cannot move freely inside the carton.
