- GE D20 EME 10BASE-T | Original Utility Automation Asset
2. Unboxing & Physical Snapshot

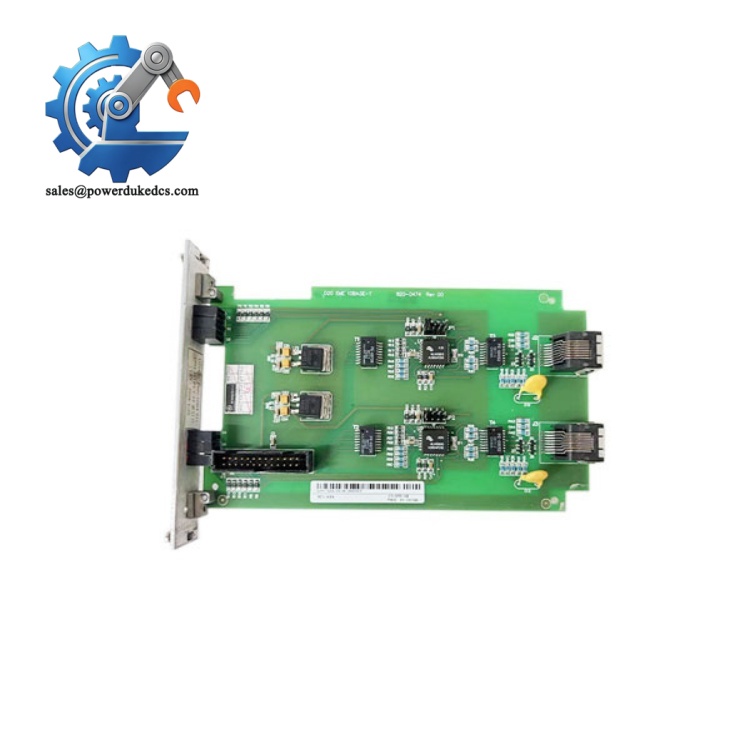

- Model & Brand: GE D20 EME 10BASE-T Ethernet/Memory Expansion Module for GE D20/D200 RTU platforms. The D20EME provides Ethernet connectivity and memory expansion capability for D20/D200 systems.
- Approximate Physical Dimensions: Approximately 19 × 5.25 × 2.5 in. (483 × 133 × 64 mm) for the D20 rack assembly format; individual Ethernet interface components may vary by configuration.
- Estimated Shipping Weight: Approximately 3–5 lb (1.4–2.3 kg), depending on installed interface cards, cabling, and protective packaging.
- What’s in the Box:
- GE D20 EME Ethernet/Memory Expansion assembly
- 10BASE-T Ethernet Media Interface Card (MIC), if configured
- Internal interconnect cable, if supplied
- Anti-static (ESD) packaging
- Product identification label
- Installation documentation when available
3. Product Introduction
The GE D20 EME 10BASE-T module installs within the D20/D200 VME-based RTU architecture, providing Ethernet communication capability between the substation controller and external network systems. The module interfaces through the D20 backplane ecosystem and uses a dedicated Media Interface Card for the physical Ethernet connection (which is important when maintaining legacy SCADA communication paths).
This hardware remains common in long-life utility automation environments where replacement compatibility matters more than platform modernization. Inspect the VME connectors, mounting hardware, and Ethernet interface card before installation. Aging communication modules can fail due to connector oxidation, memory faults, or configuration mismatches rather than obvious board damage.
4. Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | GE Digital Energy |
| Model | D20 EME 10BASE-T |
| Product Type | Ethernet/Memory Expansion Module |
| System Compatibility | GE D20/D200 RTU Systems |
| Bus Architecture | VME-based expansion module |
| Ethernet Interface | 10BASE-T Ethernet |
| Ethernet Speed | 10 Mbps |
| Ethernet Media | Twisted-pair Ethernet |
| Ethernet Channels | Two independent 10 Mbps Ethernet channels (configuration dependent) |
| Memory Expansion | 8 MB battery-backed SRAM standard configurations; expandable options available |
| Maximum Memory Expansion | Up to approximately 16 MB with additional memory module |
| Storage Memory | Battery-backed static RAM |
| Power Supply | D20/D200 chassis supplied |
| Typical Power Dissipation | Approximately 5–10 W depending on installed configuration |
| Cooling Method | Forced-air or cabinet airflow cooling |
| Mounting Method | VME rack/backplane installation |
| Operating Temperature | Approximately -20°C to +70°C (configuration dependent) |
GE D20 EME 10BASE-T
5. Global Compliance & Industry Certifications
Expected regulatory approvals and compliance considerations for the GE D20 EME 10BASE-T include:
- CE Mark compliance when installed within an approved system configuration
- UL/cUL recognition may apply to the complete RTU cabinet assembly
- RoHS compliance depends on manufacturing date and hardware revision
- IEC electrical safety compliance through the complete substation automation installation
- ATEX/IECEx certification is generally not applicable to the standalone module unless installed as part of a certified hazardous-area system
- Marine approvals such as DNV GL require project-specific qualification
For utility and substation applications, system-level certification is the key consideration. A properly grounded cabinet, approved enclosure, and documented installation method help maintain the intended safety classification.
Verify specific lot certifications with OEM.
6. Long-Term Storage & Asset Preservation Guide
Keep the D20 EME module inside its original anti-static (ESD) shielding bag during storage. The VME edge connectors and Ethernet interface electronics should not be exposed to uncontrolled warehouse environments.
Maintain humidity below 60% RH and avoid storage areas with corrosive vapors. Long-term oxidation on connector contacts can create intermittent communication failures that are difficult to diagnose in a live SCADA environment.
Inspect battery-backed memory components before deployment. Check the module date code, verify stored firmware/configuration records, and document any battery replacement activity (critical for legacy RTU assets that may have remained on shelves for extended periods).
7. Physical Installation Prerequisites
- Install the D20 EME only in a compatible GE D20/D200 VME chassis.
- Verify correct VME slot assignment before insertion.
- Ensure the backplane connector is fully seated and retaining screws are secured.
- Maintain approximately 50 mm clearance around cabinet ventilation paths where practical.
- Confirm chassis grounding and shield termination requirements before network connection.
- Use approved Ethernet cabling practices for the 10BASE-T interface.
- Inspect the Media Interface Card connector and retaining hardware before energizing the system.
8. Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is typically used for the GE D20 EME 10BASE-T?
A: This module is generally evaluated under HS categories covering electrical control equipment, communication modules, or electronic assemblies. Classification depends on the declared function and importing country’s customs interpretation. Confirm the final Harmonized System code with your customs broker before export.
Q: Why does Country of Origin documentation matter for this SCADA module?
A: Country of Origin affects customs clearance, utility procurement records, and contractual compliance requirements. Verify that the COO shown on the commercial invoice matches supplier records and available hardware labeling.
Q: Should shipping insurance be purchased for a D20 EME spare module?
A: Recommended. Legacy SCADA communication boards may have limited replacement availability, and transportation damage can occur even with intact external packaging. Use ESD protection, shock-resistant packing, and documented receiving inspection.
Q: Does the D20 EME 10BASE-T arrive with the latest firmware loaded?
A: Not necessarily. Firmware revision, memory contents, and configuration files depend on the module history and previous system use. Verify compatibility with the existing D20/D200 database, RTU software version, and SCADA network configuration before commissioning.
