• Brand: GE
• Full Model Number: DS3800HIOC
• System / Series Family: GE Mark IV
• Core Function: High-level input/output interface board for GE Mark IV control systems
• Top 3 Hardcore Specs: Mark IV architecture / High-level I/O interface / DS3800 board family
• Board Type: HIOC High Level Input/Output Board
• System Generation: Mark IV
• Board Family: DS3800
• Application: Turbine and industrial control systems
• Stock Status: New Surplus / Factory Sealed — exact physical condition to be confirmed before quotation

Module 3: Technical Product Introduction

A failed high-level I/O board can interrupt signal exchange between a legacy GE control system and the equipment it monitors or controls. The GE DS3800HIOC is identified as a High Level Input/Output Board within the GE Mark IV control platform. The DS3800 family belongs to GE’s earlier control hardware architecture, so replacement is fundamentally an interface-matching exercise: the board must correspond to the correct rack position, signal architecture, wiring arrangement, and Mark IV system configuration. Available references identify the HIOC designation as the board’s high-level I/O function. (artisantg.com)

Unlike newer GE control platforms with extensively software-defined I/O, the DS3800HIOC is a hardware-specific interface assembly. That distinction matters during maintenance. Detailed electrical ratings, channel counts, connector assignments, and signal thresholds should be taken from the equipment-specific GE documentation rather than inferred from the HIOC acronym. For an existing Mark IV installation, an exact replacement can preserve the established cabinet wiring and control architecture without forcing a broader control-system conversion.

Module 4: Application Scenarios & Field Realities

• In legacy GE Mark IV turbine control cabinets, the DS3800HIOC can form part of the signal interface between the control electronics and external equipment. Confirm the actual board location before removal because Mark IV racks can contain several visually related DS3800 assemblies.
• During a forced outage, technicians should photograph the board label, rack position, cable routing, and connector orientation. Older installations may contain field modifications that are absent from the original GE drawings.
• For turbine instrumentation circuits, investigate the upstream and downstream devices when an HIOC board fails. A damaged input/output interface can be the result of an external wiring fault, transient, ground issue, or failed field device rather than the original cause of the outage.
• When maintaining an aging Mark IV system, retaining an exact DS3800HIOC spare can reduce the immediate scope of maintenance. A modernization project should be engineered separately; do not combine an emergency board replacement with an unplanned control-system conversion.

Module 5: Migration, Compatibility & Installation Traps

Replacement Matrix

Replacement Case	Classification	Engineering Requirement
DS3800HIOC replacing the identical DS3800HIOC	Drop-in Replacement	Verify board identity, rack position, connectors, wiring, and system configuration
Related DS3800 HIOC revision	Software Compatible — Verify First	Confirm hardware revision, signal configuration, and Mark IV documentation
Different DS3800 I/O board	Hardware Modification Required	Recheck signal type, terminal assignments, connector arrangement, and control logic
Modern GE I/O platform replacing DS3800HIOC	Hardware Modification Required	Engineer signal conversion, wiring, rack interfaces, software, and commissioning

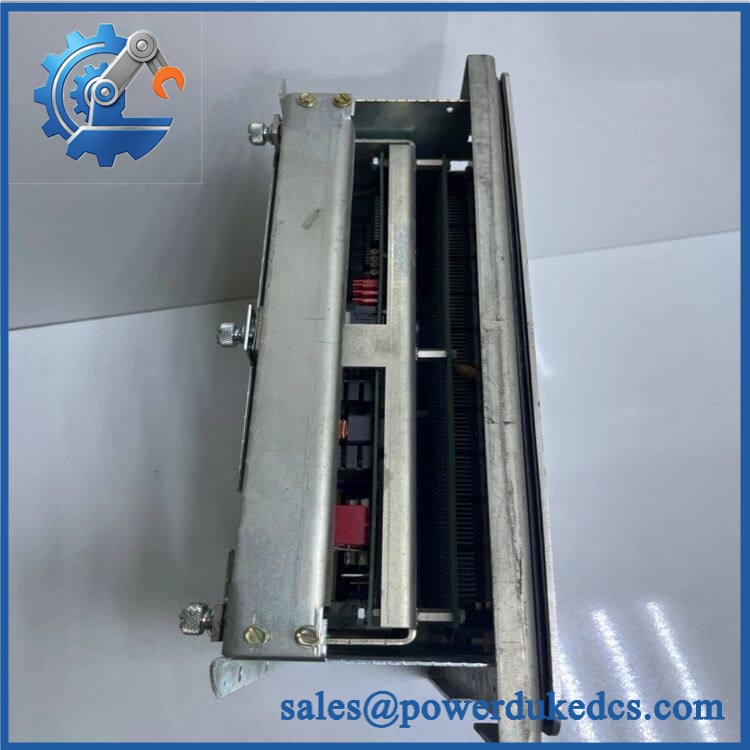

GE DS3800HIOC

Field Traps — Watch Out

Do not infer channel specifications: The HIOC designation identifies a high-level I/O function, but it does not by itself establish the number of channels, voltage range, current range, or signal threshold. Use the exact Mark IV drawing or board documentation for the installed system.

Rack-position verification: Record the original rack slot before removal. A physically similar DS3800 board installed in the wrong position can produce system faults even when the connectors fit.

Field-wiring damage: Inspect external wiring before installing the replacement. If an input/output circuit is shorted, overvoltage-exposed, or incorrectly grounded, a replacement board can be damaged immediately after energization.

Revision matching: Preserve the complete DS3800HIOC identification and any additional board-level revision information. Do not substitute another DS3800 interface board solely because its dimensions and connector arrangement appear similar.

Legacy documentation: Mark IV systems frequently have site-specific modifications accumulated over years of service. Compare the physical cabinet with the latest available wiring drawings before reconnecting field cables.

Module 6: Quality Assurance SOP

The pre-shipment inspection for a GE DS3800HIOC should focus on board identity, I/O interface integrity, connector condition, and controlled Mark IV functional screening:

1. Part-number verification — Confirm the physical identification as DS3800HIOC and record all visible GE markings, serial information, revision codes, and PCB identifiers.
2. OEM anti-counterfeit visual inspection — Examine labels, PCB artwork, component markings, connector construction, solder joints, and manufacturing identifiers for inconsistent printing, altered labels, or unauthorized rework.
3. Mechanical inspection — Check the PCB substrate, mounting points, connectors, terminal interfaces, edge contacts, and accessible components for cracks, deformation, corrosion, contamination, or impact damage.
4. Connector inspection — Examine every applicable I/O connector for bent contacts, damaged housings, contamination, loose hardware, or signs of arcing. Connector condition should be recorded separately in the QA report.
5. PCB component inspection — Check resistors, capacitors, ICs, relays, transformers, and other visible components for discoloration, swelling, cracked packages, overheated areas, or evidence of previous repair.
6. Power-on self-test (POST) — Where an approved GE Mark IV test setup is available, energize the board under controlled conditions and check applicable status and diagnostic indications.
7. I/O continuity verification — Using an approved test fixture, verify applicable signal paths and connector continuity against the correct DS3800HIOC documentation.
8. Input/output functional screening — Apply controlled test signals within the documented electrical limits and verify the corresponding response. Do not apply assumed voltage or current levels when the exact board specification has not been established.
9. System handshake verification — Install the board in a compatible Mark IV test environment where available and verify expected rack-level recognition and signal exchange.
10. Configuration cross-check — Compare the tested board’s identification and connector arrangement against the customer’s supplied cabinet information before dispatch.
11. Final inspection and packaging — Photograph the exact DS3800HIOC identification, record test results, protect connectors and exposed contacts, use appropriate ESD precautions, and package the board against mechanical shock and moisture.

The final QA record should connect the DS3800HIOC identification, revision information, PCB condition, connector inspection, I/O screening, Mark IV system test, and packing record to the exact unit shipped. For this legacy GE board, verified signal compatibility is more important than relying on generic DS3800-series specifications.
