GE HYDRAN M2-X | Transformer Online DGA Monitor

Description

• Brand: GE / GE Vernova Grid Solutions
• Full Model Number: HYDRAN M2-X
• Lifecycle Status: Active / Current Product
• Core Function: Online transformer dissolved-gas and moisture condition monitor
• Top 3 Technical Specs: 25–2,000 ppm H₂-equivalent range; ±10% of reading ±25 ppm accuracy; -40°C to +55°C ambient operating range
• Communications: Modbus, DNP 3.0; optional IEC 61850 over TCP/IP
• Mechanical Interface: 1.5 in NPT male thread
• Moisture Measurement: 0–100% RH; ±2% RH accuracy
• Stock & Condition: Stock confirmation required; New OEM / New Surplus subject to availability; Emergency dispatch subject to cutoff
• Shipping Weight: 9.0 kg / 20 lb

Module 3: Obsolescence & Supply Chain Deep Dive

Transformer monitoring failures become expensive when the replacement path is treated as a full monitoring-system project. GE HYDRAN M2-X is an online transformer condition monitor designed to continuously measure fault gas and moisture in insulating oil. The composite-gas configuration measures hydrogen with a stated range of 25–2,000 ppm H₂ equivalent, while the moisture sensor covers 0–100% RH. Standard communications include Modbus and DNP 3.0, with IEC 61850 over TCP/IP available as an option.

For a transformer fleet already using compatible Hydran architecture, replacing the failed monitoring unit can preserve the existing transformer valve connection, SCADA integration, alarm philosophy, and condition-monitoring workflow. That matters to TCO: a targeted monitor replacement can avoid unnecessary cabinet changes, new communications engineering, field rewiring, and extended outage coordination. The M2-X uses a 1.5 in NPT male process connection and is designed for installation on an existing transformer valve, often without requiring a transformer outage. (Lead time should still be checked against the exact configuration, sensor option, and communication package.)

Module 4: Compatibility & Replacement Matrix

The M2-X is mechanically specified with a 1.5 in NPT male thread and can mount on a 1.5 in NPT valve or larger valve using appropriate adapters. GE also states that the unit can often be installed on an existing transformer valve without an outage.

⚠️ Field Traps — Watch Out

• Communications Configuration Mismatch: Modbus and DNP 3.0 are standard, while IEC 61850 over TCP/IP is optional. Confirm the exact communications option before approving a substitute; otherwise, the monitor may power up correctly but fail to integrate with the existing SCADA architecture.
• Sensor / Transformer Compatibility: The M2-X can be configured with a composite-gas sensor or a discrete H₂ sensor, and the moisture function is separate. Verify the required sensor configuration, transformer oil type, valve adapter, and optional accessories before shipment.

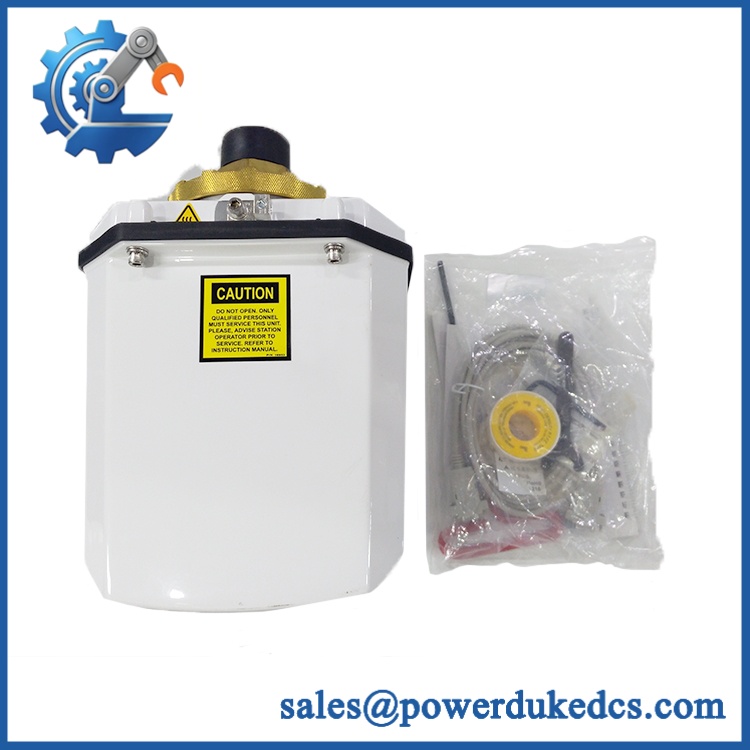

GE HYDRAN M2-X

Module 5: Quality Assurance & Testing SOP

1. OEM anti-counterfeit visual inspection — verify GE/GE Vernova identification, model marking, enclosure condition, labels, connectors, keypad/display assembly, and manufacturing traceability.
2. Model and configuration verification — record HYDRAN M2-X, serial number, sensor type, communication options, supply configuration, and process-connection accessories.
3. Mechanical inspection — inspect the 1.5 in NPT interface, enclosure, seals, mounting points, terminal connections, and external oil-sampling arrangement for damage or contamination.
4. Electrical pre-screening — check supply wiring, insulation, grounding, connector integrity, and abnormal resistance conditions before energization.
5. Power-on self-test (POST) — energize the unit and verify expected startup behavior, LCD/keypad operation, alarm/status indications, and any ERR/RUN indicators fitted to the specific hardware revision.
6. Gas-measurement verification — perform a controlled sensor response check against the applicable gas-monitor test procedure and confirm readings remain within the specified measurement range and accuracy criteria.
7. Moisture-channel testing — verify the moisture sensor response and confirm the measurement channel operates correctly across the applicable test points.
8. Communications testing — establish RS-485/RS-232 communication as applicable and verify Modbus or DNP 3.0 data exchange; test optional Ethernet/IEC 61850 functions when fitted.
9. Alarm and relay testing — verify high/high-high gas and moisture alarm logic and test the available dry-contact relay outputs under controlled conditions.
10. Extended operating test — monitor the unit for intermittent communication faults, abnormal temperature rise, display instability, sensor anomalies, or nuisance alarms.
11. Final QC release — photograph the identification label, record all test results, apply QC status, package with appropriate environmental protection, and retain traceability with the shipment.

GE specifies five dry-contact relays, RS-232 and isolated RS-485 communications, optional Ethernet, a 128 × 64 back-lit LCD, and configurable gas/moisture alarms. These functions make communication and alarm verification important parts of pre-shipment testing rather than relying only on power-up inspection.

Module 6: Procurement & Lifecycle FAQ

Q1. Is HYDRAN M2-X genuinely in stock, and what is the cutoff for emergency shipping?
Stock should be confirmed against the exact M2-X configuration, quantity, sensor option, and destination before the PO is released. For emergency requirements, provide the required ship date and destination early enough to verify warehouse allocation and same-day carrier availability.

Q2. How do you verify the condition and authenticity of an M2-X supplied from inventory?
Use model and serial-number verification, OEM marking inspection, enclosure and connector examination, electrical screening, powered functional testing, sensor verification, communications testing, and alarm/relay checks. Keep photographs and the QC record with the shipment for traceability.

Q3. Are there firmware or communications compatibility issues engineers should check before issuing the PO?
Yes. The critical review point is the complete configuration, not simply the M2-X model name. Confirm the installed communications method, Modbus/DNP requirements, optional IEC 61850 capability, SCADA register expectations, alarm configuration, and sensor selection. GE lists Modbus and DNP 3.0 as standard protocols and IEC 61850 over TCP/IP as an option.

Q4. What are the warranty and return terms?
The quotation should state the warranty period, return-authorization process, DOA criteria, and exclusions for installation damage or incorrect field configuration. Serial-number traceability should link the supplied unit to its inspection and test record.

Q5. Why replace the monitor instead of redesigning the transformer monitoring system?
When the transformer, valve interface, SCADA architecture, and monitoring strategy remain serviceable, a compatible M2-X replacement can avoid unnecessary system-level engineering. The unit supports existing industrial communication architectures, provides continuous gas and moisture monitoring, and is designed for installation on an existing transformer valve, which can substantially reduce field modification and outage exposure.
