- GE HYDRAN M2 | Industrial Transformer Monitor, Export Ready
Unboxing & Physical Snapshot

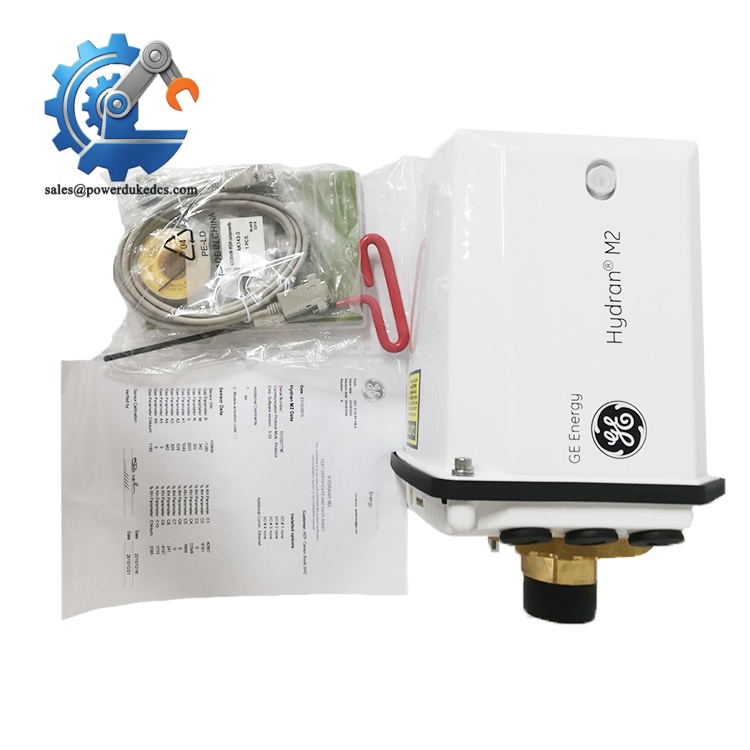

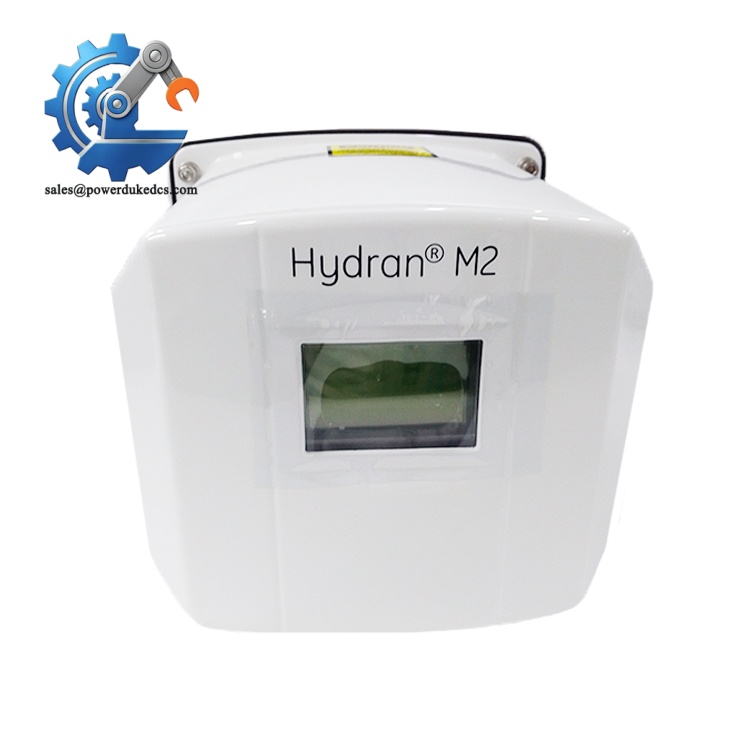

- Model & Brand: GE HYDRAN M2 Transformer Monitoring System
- Approximate Physical Dimensions: 10.5 × 7.5 × 5.0 in. (267 × 191 × 127 mm) for the monitoring enclosure (sensor configuration may vary)
- Estimated Shipping Weight: Approximately 8–12 lb (3.6–5.4 kg), depending on probe and accessory package
- What’s in the Box:
- GE HYDRAN M2 monitoring unit
- Transformer gas and moisture monitoring assembly
- Mounting hardware
- Wiring terminals/connectors
- Installation documentation
- Factory identification labels and test documentation (when supplied)
Product Introduction
The HYDRAN M2 is installed as part of the transformer protection and condition-monitoring architecture, typically mounted near the transformer tank with connections routed through dedicated control wiring. Its enclosure, terminal points, and sensor interfaces must remain protected from moisture ingress, vibration, and mechanical impact during installation (especially in outdoor substations where environmental exposure is continuous).
This monitor is used to track dissolved gas and moisture conditions that can indicate developing transformer insulation problems. Correct installation matters. Poor cable routing, inadequate grounding, or improper sealing at the transformer connection point can compromise measurement quality and create unnecessary maintenance alarms.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | GE |
| Model | HYDRAN M2 |
| Product Type | Transformer Dissolved Gas Analysis (DGA) Monitor |
| Primary Application | Online transformer condition monitoring |
| Measurement Functions | Hydrogen concentration and moisture monitoring |
| Hydrogen Measurement Range | Approximately 0–2,000 ppm H₂ |
| Moisture Measurement | Relative saturation / moisture-in-oil monitoring |
| Power Supply | Typically 24 VDC (configuration dependent) |
| Estimated Power Consumption | Approximately 5–15 W |
| Operating Temperature | Approximately -40°C to +85°C (application dependent) |
| Communication Interfaces | Ethernet / serial communications depending on configuration |
| Mounting Style | Transformer-mounted enclosure assembly |
| Enclosure Protection | Industrial weather-resistant housing |
| Data Storage | Internal event and measurement logging capability |
| Cooling Method | Passive enclosure heat dissipation |
GE HYDRAN M2
Global Compliance & Industry Certifications
Expected regulatory approvals for this class of transformer monitoring equipment may include:
- CE Mark for European electrical equipment requirements
- UL/cUL Listed components where applicable
- RoHS environmental compliance depending on manufacturing revision
- IEC electrical safety conformity through the complete installed system
- ATEX/IECEx approvals only where the specific configuration is rated for hazardous locations
- Marine approvals, including DNV GL, may apply for offshore or marine transformer applications when specifically ordered
The importance of enclosure and hazardous-area certification cannot be overlooked. In locations containing combustible gases, an appropriately certified installation helps prevent electrical equipment from becoming an ignition source.
Verify specific lot certifications with OEM.
Long-Term Storage & Asset Preservation Guide
Keep the HYDRAN M2 sealed in its original packaging until installation. Moisture monitoring equipment contains precision sensing elements that can be affected by uncontrolled humidity exposure during extended storage.
Store the unit in a climate-controlled warehouse with humidity maintained below 60% RH. Avoid placing the package directly on concrete floors because temperature cycling can introduce condensation risk.
Inspect stored units annually. Confirm enclosure seals remain flexible, verify that cable glands and terminal covers are undamaged, and check the product label against the asset management database (a simple serial-number mismatch can create major commissioning delays).
Physical Installation Prerequisites
- Mount the HYDRAN M2 on a stable transformer structure or approved mounting bracket.
- Provide adequate airflow around the enclosure; maintain approximately 50 mm minimum clearance around the housing where practical.
- Install grounding conductors according to site electrical standards and transformer protection requirements.
- Use shielded communication wiring where required by the installation design.
- Confirm cable glands are correctly tightened to maintain environmental protection.
- Protect the sensor connection area from mechanical stress and vibration transmitted from transformer structures.
GE HYDRAN M2
Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is normally used for shipping the HYDRAN M2 internationally?
A: Transformer monitoring equipment is often classified under HS categories covering electrical measuring, checking, or monitoring instruments, commonly within HS 9030 or related headings depending on the exact configuration and importing country. Confirm the final classification with your customs broker before export.
Q: Does Country of Origin affect acceptance during a transformer project audit?
A: Yes. The Country of Origin affects customs documentation, contractual requirements, and sometimes utility qualification records. Ensure the COO listed on the commercial invoice matches the equipment label and manufacturer documentation.
Q: Is shipping insurance necessary for a HYDRAN M2 shipment?
A: Recommended. The enclosure may appear rugged, but internal sensing electronics and communication boards can be damaged by shock, improper stacking, or uncontrolled transport conditions. Use insured freight with documented packaging condition at shipment and receipt.
Q: Does the HYDRAN M2 arrive with the latest firmware installed?
A: Firmware revision depends on production date and supplier configuration. A factory-new unit may not contain the firmware revision required for an existing transformer monitoring network. Verify firmware compatibility before field installation and commissioning.
