GE IC200PWB001A | VersaMax Power Supply Booster Carrier

Description

• Brand: GE Fanuc / GE
• Full Model Number: IC200PWB001A
• System/Series Family: VersaMax Modular I/O
• One-Sentence Core Function: Power supply booster carrier that mounts an additional VersaMax power supply and distributes power to downstream I/O carriers
• Top 3 Hardcore Specs: 24 VDC supply architecture; 2.5 W carrier dissipation; 35 mm DIN-rail mounting
• Status Indicators: PWR and OK LEDs
• Terminal Interface: 10 spring-clamp terminals
• Isolation: 1500 VAC
• Enclosure Rating: IP20
• Stock Status: New Surplus / Fully Tested Refurbished subject to actual inventory inspection

Module 3: Commercial-Technical Deep Dive

Long VersaMax I/O chains can reach the point where the primary CPU or NIU power source is no longer sufficient for downstream modules. The GE IC200PWB001A is the Power Supply Booster Carrier for the VersaMax platform. It provides the mechanical and electrical interface for mounting an additional power supply, allowing that supply to feed I/O modules located to the right of the booster carrier until another booster source is encountered. The carrier uses 35 mm DIN-rail mounting, includes PWR and OK status LEDs, and uses side-mounted mating connectors to extend the VersaMax backplane.

The commercial benefit is simple: expand the usable I/O architecture without replacing the CPU or NIU power arrangement. Current technical references specify a 24 VDC input architecture, approximately 2.5 W carrier dissipation, 10 spring-clamp terminals, and 1500 VAC isolation for the IC200PWB001 family. The carrier itself does not create the additional power; it provides the mounting and distribution path for the separate VersaMax power supply installed on it. That distinction matters during troubleshooting. If downstream modules are losing power, verify the booster supply, carrier connections, and power distribution path rather than assuming the IC200PWB001A itself is the complete power source.

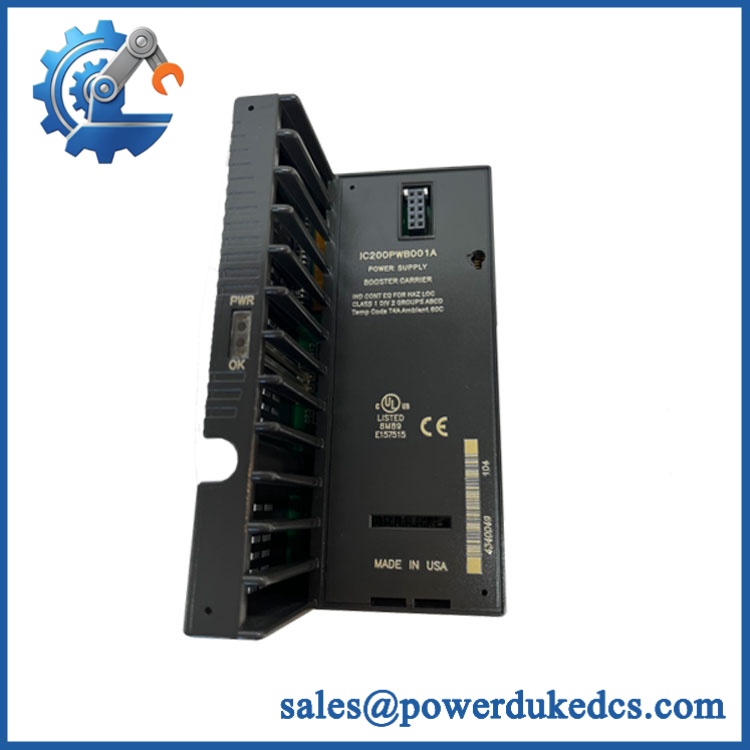

GE IC200PWB001A

Module 4: Compatibility & Installation Traps

Migration/Compatibility

• Replacement status: GE Fanuc VersaMax Power Supply Booster Carrier
• Logic rewrite: Not required. The carrier is passive power-distribution hardware.
• Firmware flash: Not applicable.
• Drop-in status: Direct replacement is generally practical when the existing installation uses the same IC200PWB001 carrier family and compatible VersaMax power supply.
• Power architecture: Designed to mount an additional power supply and distribute its power to downstream I/O modules.
• Mounting: 35 mm DIN rail; panel mounting may be used where higher vibration/shock resistance is required.
• Status indication: PWR indicates booster-supply operation; OK indicates the CPU/NIU and attached booster supply are functioning properly.
• Revision control: The IC200PWB001 family exists in multiple hardware revisions, including A, B, C, D, F, G, H, J, and K. Match the exact revision when the installed power supply or I/O configuration has revision-specific requirements.

⚠️ Field Traps (Watch Out)

• Carrier is not the power supply: The IC200PWB001A mounts the additional supply; it does not replace that supply. Confirm the booster power-supply module itself before declaring the carrier defective.
• Side-connector damage: The carrier uses mating connectors on its sides. When removing a carrier installed between neighboring carriers, adjacent carriers may also need to be moved to disengage the connectors safely.
• DIN-rail grounding: GE documentation specifies an electrically grounded DIN rail for EMC performance. Verify the rail has a suitable conductive earth connection and is not compromised by paint or corrosion.
• Downstream power boundary: The booster supply powers I/O modules to the right of the carrier until the next booster power source. Do not assume the booster feeds every module in a long rail assembly.
• Revision compatibility: Do not substitute a different IC200PWB001 revision solely because the basic catalog number matches. Confirm the actual installed revision when the application includes specialized I/O.

Module 5: Quality Assurance SOP

Before shipment, the GE IC200PWB001A should undergo a passive-carrier and power-distribution inspection:

1. OEM anti-counterfeit visual inspection — verify GE/GE Fanuc identification, IC200PWB001A marking, PCB and molded-part identification, terminal layout, connector geometry, and label consistency.
2. Revision verification — document the exact revision letter and compare it with the customer’s installed carrier.
3. Mechanical inspection — inspect the DIN-rail latch, mounting screw, side-mating connectors, power-supply mounting interface, terminal block, and housing for cracks or deformation.
4. Terminal inspection — inspect all 10 spring-clamp terminals for damage, corrosion, loose hardware, contamination, or poor retention.
5. Continuity verification — check representative power and backplane paths against the carrier wiring documentation.
6. 24 VDC controlled test — verify the carrier’s power path with the appropriate compatible VersaMax booster supply using a current-limited laboratory source.
7. PWR/OK LED verification — confirm that the status LEDs behave as expected with a functioning CPU/NIU and booster supply.
8. Downstream power-distribution test — install representative VersaMax I/O carriers/modules and verify that the booster supply reaches the downstream segment correctly.
9. Connector integrity test — cycle the side-mating connection under controlled conditions and confirm reliable electrical continuity.
10. DIN-rail retention test — verify secure mechanical engagement and carrier stability after installation.
11. Final QC record — document exact part number, revision, booster-supply test configuration, terminal results, LED behavior, photographs, and packaging condition.

For a booster carrier, a visual inspection is not enough. Power-path continuity, connector integrity, downstream voltage distribution, and correct PWR/OK indication are the meaningful acceptance checks.

Module 6: CRO-Driven Buyer FAQ

1. Is GE obsolete, and how do I verify an authentic replacement?

The IC200PWB001 is legacy VersaMax hardware, and current industrial references continue to identify it as the Power Supply Booster Carrier. The family includes multiple revisions, so verify the physical label and revision letter rather than purchasing only against the base part number.

2. Can I hot-swap the ?

Do not assume the carrier itself can be removed under energized conditions just because VersaMax documentation supports hot insertion/removal for certain modules. The booster carrier is mechanically connected to neighboring carriers and the power-supply path; controlled power isolation is the safer maintenance method unless the exact installation procedure explicitly permits online work.

3. Does replacing require PLC programming?

No. The carrier is a passive mounting and power-distribution component. After replacement, verify the booster power supply, downstream module power, backplane continuity, and PWR/OK indications.

4. What power supply does use?

The IC200PWB001 carrier is designed to mount an additional VersaMax power supply. Current technical references identify the carrier architecture with a 24 VDC input and approximately 2.5 W carrier dissipation. The actual downstream current capability depends on the specific power-supply module installed on the carrier, not the carrier alone.

5. How far does the booster carrier supply power?

The installed booster supply distributes power to each I/O module located to the right of the booster carrier until the next booster power source. This makes booster placement important when calculating the power budget of a long VersaMax I/O chain.

Warranty and Technical Support

Warranty duration should be stated according to the actual inventory condition, such as new surplus or tested refurbished. Technical support should cover exact revision verification, compatible booster-supply selection, DIN-rail installation, side-connector inspection, downstream power-distribution testing, and documented pre-shipment QA. Live cabinet rewiring and energized maintenance remain the responsibility of qualified automation personnel.
