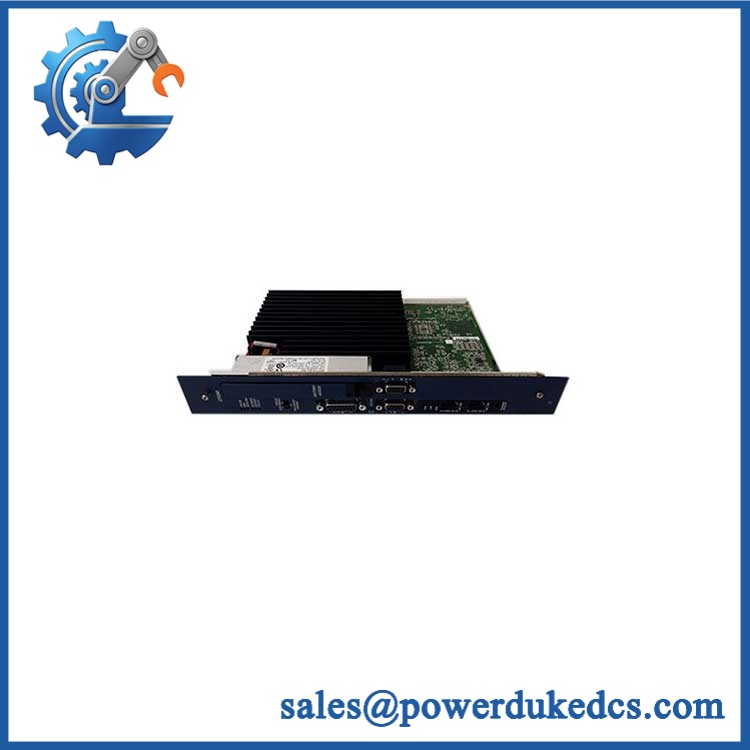

GE IC660BBA020 | Genius 4 Input 2 Output Analog I/O Block

Description

• Brand: GE Fanuc / Emerson
• Full Model Number: IC660BBA020
• System/Series Family: GE Genius I/O
• One-Sentence Core Function: Stand-alone Genius analog block providing four configurable analog inputs and two configurable analog outputs
• Top 3 Hardcore Specs: 4 analog inputs + 2 analog outputs; 12-bit plus sign resolution; 18–56 VDC operating supply
• Signal Ranges: 0–10 VDC; ±10 VDC; ±5 VDC; 0–5 VDC; 4–20 mA / 1–5 VDC
• Update Rate: 4 ms per channel
• Communication: Genius Bus
• Stock Status: New Surplus / Fully Tested Refurbished subject to actual inventory inspection

Module 3: Commercial-Technical Deep Dive

The GE IC660BBA020 is a compact Genius I/O block designed for applications that need both analog measurement and analog control without dedicating separate modules to each function. It provides four independent analog inputs and two independent analog outputs, with each circuit configurable for voltage or current operation. The supported signal ranges include 0–10 VDC, -10 to +10 VDC, -5 to +5 VDC, 0–5 VDC, and 4–20 mA / 1–5 VDC. The block communicates directly over the Genius Bus and is independently powered from a nominal 24 VDC source.

The useful engineering specification is the 4 ms channel update rate combined with 12-bit plus sign conversion. That gives a resolution appropriate for many legacy process-control measurements while keeping the block responsive enough for routine analog control loops. GE documentation also provides software-selectable input filtering from none through 1024 ms, plus underrange, overrange, high-alarm, low-alarm, and open-wire diagnostics. Current technical references specify an 18–56 VDC operating range, while the original GE manual gives 8 W nominal maximum block power for the 24/48 VDC version.

GE IC660BBA020

Module 4: Compatibility & Installation Traps

Migration/Compatibility

• Replacement status: GE Fanuc Genius 4 Input / 2 Output Analog I/O Block
• Logic rewrite: Normally not required for a like-for-like block replacement when Genius bus configuration and channel settings are preserved.
• Firmware flash: Not normally required. Preserve the existing block configuration and verify its software revision before commissioning.
• Drop-in status: Direct replacement is generally practical when the Genius bus architecture, block configuration, power supply, and field signal assignments match.
• Inputs: 4 analog channels.
• Outputs: 2 analog channels.
• Resolution: 12-bit plus sign.
• Power: 18–56 VDC operating range, nominal 24/48 VDC configuration.
• Genius compatibility: Supported by Genius Bus controllers and compatible GE PLC platforms; current GE documentation also lists IC660BBA020 among supported Genius devices.

⚠️ Field Traps (Watch Out)

• Signal-range configuration: The input and output circuits can be configured for multiple voltage/current ranges. Do not reconnect a 4–20 mA loop as a 0–10 V channel without verifying the stored block configuration and field wiring.
• Output-load limitation: The original GE documentation specifies that the internal supply can drive current-mode output loads up to 300 ohms. Loads up to 2 kΩ require an appropriate external 24 or 48 VDC supply.
• Power-supply mismatch: IC660BBA020 is the 24/48 VDC version. Do not substitute the visually similar IC660BBA100, which is the 115 VAC version.
• Genius bus addressing: Record the existing block bus address and configuration before replacement. A powered module with an incorrect Genius address can remain unavailable to the controller.
• Filter settings: A replacement with default filter parameters can behave differently from the original loop. Record software-configured filter values and alarm settings before replacement.
• Field power: Isolate external loop power before removing analog wiring, particularly where output channels drive powered actuators or signal converters.

Module 5: Quality Assurance SOP

Before shipment, the GE IC660BBA020 should undergo an analog Genius-block inspection and functional test:

1. OEM anti-counterfeit visual inspection — verify GE Fanuc/Emerson markings, complete IC660BBA020 catalog number, Genius labeling, terminal arrangement, and enclosure condition.
2. Mechanical inspection — inspect terminal screws, connector interfaces, mounting hardware, housing, and PCB condition for impact, corrosion, contamination, or unauthorized rework.
3. Configuration verification — record the Genius bus address, software configuration, input/output range assignments, filter settings, alarm settings, and output power-up behavior where accessible.
4. Power-input verification — apply a controlled 24 VDC or verified compatible supply within the documented 18–56 VDC operating range.
5. Power-on self-test (POST) — verify the Unit OK and I/O Enabled status indications and confirm normal block initialization.
6. Genius Bus handshake verification — connect the block to a compatible Genius controller and verify block identification and reliable I/O data exchange.
7. Analog-input verification — inject calibrated 0–10 V, bipolar voltage, and 4–20 mA signals on representative channels and compare reported values with the source.
8. Analog-output verification — command representative output ranges and measure the resulting voltage/current with calibrated instrumentation.
9. Filter-response verification — test representative configured filter settings where the test environment permits and confirm expected signal response.
10. Diagnostic verification — simulate representative underrange, overrange, and alarm conditions and verify the block reports the expected diagnostic state.
11. Output-load test — apply a controlled load appropriate to the selected output mode and monitor output stability.
12. Final QC record — document exact part number, Genius address, configuration parameters, injected values, measured outputs, diagnostic results, photographs, and packaging condition.

For an analog Genius block, power-up is only the first checkpoint. Bus recognition, calibrated signal conversion, output accuracy, configuration retention, and diagnostic behavior are the meaningful acceptance criteria.

Module 6: CRO-Driven Buyer FAQ

1. Is GE obsolete, and how do I verify an authentic replacement?

The is legacy GE Fanuc Genius I/O hardware and is now commonly referenced under the Emerson automation product family. GE documentation identifies it specifically as a 24/48 VDC 4-input/2-output analog block, and current GE documentation continues to list the catalog number among supported Genius devices. For procurement, verify the complete marking rather than ordering a generic Genius analog block.

2. Can I hot-swap the ?

Genius I/O systems support certain online maintenance functions, but do not assume the analog block can be removed under live field wiring without an approved procedure. Isolate external loop power and follow the applicable Genius/PLC maintenance procedure before disconnecting the block.

3. Will replacing require PLC programming?

Normally not for a like-for-like replacement. The block retains its role as a Genius analog I/O device, but its Genius address, signal ranges, filtering, alarms, and output startup behavior must match the original configuration.

4. What analog signals can handle?

Each input/output circuit can support 0–10 VDC, -10 to +10 VDC, -5 to +5 VDC, 0–5 VDC, or 4–20 mA / 1–5 VDC, subject to channel configuration. The block provides 4 inputs and 2 outputs with 12-bit plus sign conversion.

5. What is the power requirement?

The is the 24/48 VDC analog I/O block, with an operating range of 18–56 VDC. The original GE specification gives approximately 8 W maximum block power for this version. Do not confuse it with IC660BBA100, which is the 115 VAC counterpart.

Warranty and Technical Support

Warranty duration should be stated according to the actual inventory condition, such as new surplus or tested refurbished. Technical support should cover exact identification, Genius Bus compatibility, block-address verification, analog range configuration, loop testing, and documented pre-shipment QA. Live process-loop wiring and commissioning remain the responsibility of qualified controls and instrumentation personnel.
