GE IC660BBD025 | Genius 32 Circuit 5 12 24VDC Sink I/O Block

Description

• Brand: GE Fanuc
• Full Model Number: IC660BBD025
• System/Series Family: Genius I/O
• One-Sentence Core Function: 32-circuit configurable discrete I/O block for 5, 12, and 24 VDC sink applications
• Top 3 Hardcore Specs: 32 configurable circuits; 5/12/24 VDC operation; 0.5 A output per circuit
• I/O Type: Sink I/O
• Circuit Count: 32
• Configuration: Each circuit configurable as input, output, or output with feedback
• Input Processing Time: 1.4 ms
• Output Current: 0.5 A per circuit
• Maximum Inrush: 4 A for up to 10 ms
• Total Output Current: 16 A
• Block-to-Block Isolation: 850 V
• Compatible Electronics Assembly: IC660EBD025
• Compatible Terminal Base: IC660TBD025
• Operating Temperature: 0°C to +60°C
• Storage Temperature: -40°C to +100°C
• Humidity: 5% to 95% non-condensing
• Status Indication: Block and individual circuit LEDs
• Stock Status: New Surplus / Fully Tested Refurbished subject to availability

GE documentation identifies IC660BBD025 as a Genius 5/12/24 VDC Sink I/O Block with 32 circuits. The individual circuits can be configured as inputs or outputs, with protected output switching and diagnostic feedback.

Module 3: Commercial-Technical Deep Dive

A failed IC660BBD025 can remove as many as 32 discrete field points from a legacy Genius I/O network while leaving other remote blocks operational. The GE IC660BBD025 is a configurable sink-type Genius I/O block designed for 5, 12, and 24 VDC applications. Each of its 32 identical circuits can be configured as an input, an output, or an output with feedback, allowing one block to combine different discrete signal functions when the application requires it. The block is also designed to interface with both 2-wire and 3-wire electronic proximity switches, while outputs can drive low-power devices such as relays, contactors, and lamps.

The 1.4 ms input processing time is useful when evaluating scan behavior, while each output circuit is rated at 0.5 A, with a documented 4 A maximum inrush for up to 10 ms. Total output current is specified at 16 A. GE also documents resettable, self-protecting output circuits and an 850 V block-to-block isolation specification. One important legacy-system detail: GE issued a product update specifically warning that, for 5 V operation, the voltage measured at the block’s supply terminals must be 4.9–5.3 VDC. That is a narrow field check worth making before condemning the replacement block or the upstream supply.

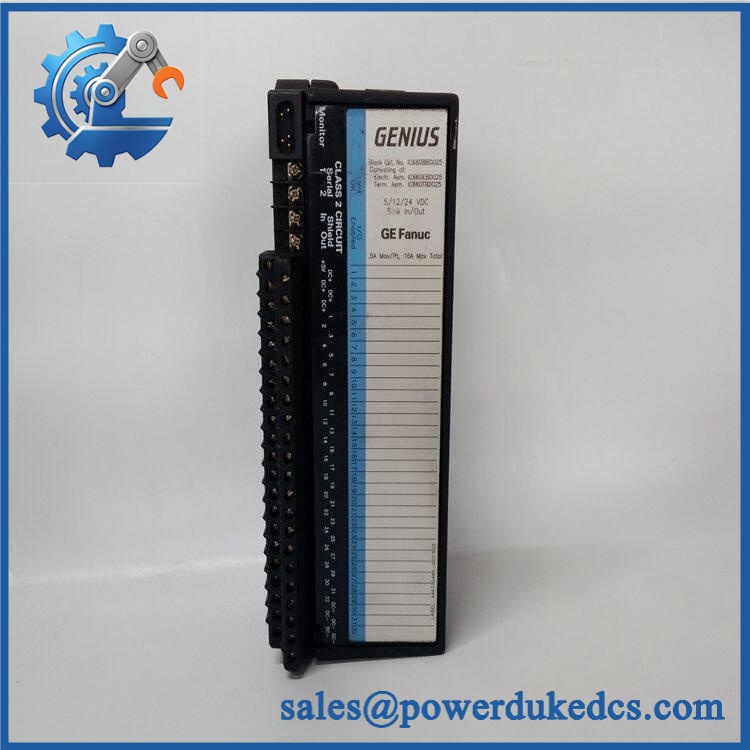

GE IC660BBD025

Module 4: Compatibility & Installation Traps

Migration/Compatibility

• System: GE Fanuc Genius I/O
• Full Model: IC660BBD025
• Module Type: 32-circuit DC Sink I/O Block
• Nominal Voltage Classes: 5 VDC, 12 VDC, 24 VDC
• Circuit Count: 32
• Circuit Configuration: Input, output, or output with feedback
• Input Processing: 1.4 ms
• Output Rating: 0.5 A per circuit
• Maximum Inrush: 4 A for up to 10 ms
• Total Output Current: 16 A
• Isolation: 850 V block-to-block
• Compatible Electronics Assembly: IC660EBD025
• Compatible Terminal Base: IC660TBD025
• Network: Genius I/O bus
• Replacement Type: Exact IC660BBD025 revision preferred
• Configuration: Preserve Genius bus address, circuit assignments, input/output modes, diagnostics, and output settings
• Logic Rewrite: Normally not required for a like-for-like replacement; Genius block configuration must be restored and verified

⚠️ Field Traps (Watch Out)

1. Check the actual supply voltage at the block.
The 32-circuit sink block supports multiple voltage classes, but GE issued a specific correction for 5 V operation: the measured supply at the block terminals must remain between 4.9 and 5.3 VDC. Do not assume a nominal 5 V supply is adequate without measuring it at the block.

2. Do not configure every circuit as an output without checking total current.
Although each output circuit is rated at 0.5 A, the documented 16 A total output-current limit remains applicable. Simultaneous high-current loads can exceed the block’s aggregate capacity even when no individual circuit exceeds 0.5 A.

3. Preserve the circuit-by-circuit configuration.
The 32 channels are individually configurable. A replacement block can therefore be electrically healthy while producing incorrect field behavior if the original input/output assignments and feedback settings are not restored.

4. Match the electronics assembly and terminal base.
Available technical records identify IC660EBD025 as the compatible electronics assembly and IC660TBD025 as the compatible terminal base. Verify the physical hardware before installation rather than assuming every Genius 32-point block shares the same base.

5. Account for the legacy Hand-Held Monitor limitation.
GE’s product update notes that older IC660HHM501A firmware 1.0 could incorrectly display only 16 references when monitoring 32-circuit BBD024/BBD025 blocks that were not the active block. Version 2.0 or later avoids that anomaly.

Module 5: Quality Assurance SOP

Each available GE should undergo a documented Genius I/O inspection and functional test before shipment:

• OEM anti-counterfeit visual inspection: Verify GE Fanuc/Genius identification, complete catalog number, terminal markings, block labels, LED arrangement, and manufacturing identifiers.
• Revision verification: Record the exact hardware revision and any visible electronics-assembly markings.
• Mechanical inspection: Check the enclosure, terminal assembly, mounting hardware, Genius bus interface, and HHM connection.
• PCB condition inspection: Inspect accessible electronics for corrosion, contamination, cracked components, damaged traces, thermal discoloration, and evidence of prior repair.
• Power precheck: Measure resistance and continuity before applying 5, 12, or 24 VDC.
• 5 V supply verification: When testing the 5 V configuration, verify the voltage at the block terminals remains within 4.9–5.3 VDC.
• Power-on self-test (POST): Energize the block on an approved Genius I/O test fixture and verify block-level diagnostic indicators.
• Genius bus handshake verification: Connect the block to a controlled Genius bus and verify recognition at the assigned test address.
• Input-channel test: Exercise representative channels with controlled 5/12/24 VDC input signals.
• Output-channel test: Test representative output circuits with controlled loads while remaining within the 0.5 A per-channel and 16 A aggregate limits.
• Feedback test: Where configured, verify output-state feedback independently from the external load state.
• Inrush test: Apply an approved transient load and verify the output protection response without exceeding the laboratory equipment limits.
• Channel configuration test: Verify representative input, output, and output-feedback configurations.
• LED diagnostic test: Confirm block status and individual circuit indicators respond correctly under normal and fault conditions.
• Fault simulation: Introduce controlled open-circuit, overload, and communication-fault conditions and verify the expected diagnostic response.
• Genius data-transfer test: Confirm all tested channel states are correctly transferred to the bus master.
• Final QC record: Record catalog number, revision, Genius address, supply voltage, circuit configuration, measured output current, diagnostic results, and technician sign-off.
• ESD-safe packaging: Protect the block against electrostatic discharge, impact, contamination, and terminal damage.

For this block, channel configuration plus load testing provides far more useful evidence than a basic power-up check. The buyer needs to know that the configurable circuits actually respond as programmed and that protected output switching remains functional.

Module 6: CRO-Driven Buyer FAQ

What is GE ?

GE is a Genius 5/12/24 VDC Sink I/O Block with 32 circuits. Its 32 discrete circuits can be configured as inputs, outputs, or outputs with feedback depending on the application.

What is the output current rating?

Each output circuit is rated at 0.5 A, with a documented 4 A maximum inrush for up to 10 ms. The total output-current limit is 16 A across the block.

Can be used as both an input and output block?

Yes. The 32 circuits are individually configurable, allowing the block to contain a mixture of discrete inputs, outputs, and output-feedback channels

What electronics assembly and terminal base are compatible?

Available technical records identify IC660EBD025 as the compatible electronics assembly and IC660TBD025 as the compatible terminal base. Confirm the actual installed base before ordering.

Does support 5 VDC operation?

Yes, but GE issued a specific product notice for 5 V operation. The voltage measured at the block’s supply terminals must be 4.9–5.3 VDC for correct operation.

Is obsolete?

It is a legacy GE Fanuc Genius I/O product and is listed by current industrial inventory sources as discontinued. Exact revision matching is therefore important when maintaining an existing Genius network.

Can be replaced while the Genius system is powered?

Do not assume live replacement is permitted. The block carries field power and can switch external loads. Follow the applicable GE Genius I/O maintenance procedure and site electrical-isolation requirements before removing the block.

What should I verify before ordering ?

Confirm the complete revision, Genius bus address, 5/12/24 VDC operating voltage, 32-channel configuration, compatible IC660EBD025 electronics assembly, IC660TBD025 terminal base, individual input/output assignments, and total output-current demand.

What warranty and technical support should I expect?

Warranty duration should be stated for the exact unit condition and test status on the quotation. Technical support should cover part-number and revision verification, Genius bus compatibility, terminal-base matching, 32-channel configuration, current-load testing, and documented bench-test results. PLC application changes and field commissioning should be treated separately unless explicitly included.
