GE IC755CSS06RDA | 6″ QuickPanel+ UL HAZ HMI

Description

1.Model & Brand: GE IC755CSS06RDA, QuickPanel+ 6-inch color TFT operator interface with a resistive touchscreen and GE Monogram bezel. The unit is designed for 24 VDC operation.

• Physical Dimensions: 192 mm W × 137 mm H × 36 mm D. The specified panel cutout is approximately 183.5 mm W × 128.5 mm H.
• Estimated Shipping Weight: Approximately 0.8 kg / 1.76 lb for the unit. A supplier listing reports approximately 0.6 kg, so the actual packed gross weight should be used for freight documents.
• What’s in the Box: Depending on inventory condition and original packaging, the normal assembly includes the QuickPanel+ unit, panel-mount brackets, mounting gasket, and 24 VDC/power connector hardware. A replacement gasket and accessory kit are separately identified in GE documentation.
• Primary Interfaces: 1 × 10/100 Ethernet RJ45, 1 × RS-232, 2 × USB 2.0 Type-A, 1 × USB 2.0 Mini-B, microphone input, line output, and an SD/SDHC storage interface.

Product Introduction

The IC755CSS06RDA is a panel-mounted industrial HMI intended for installation inside a control enclosure, where the display, touchscreen, communication ports, and 24 VDC power connection remain accessible from the operator side or service side as designed. Its 192 × 137 × 36 mm enclosure is compact enough for machine-panel applications, while the specified 183.5 × 128.5 mm cutout determines the actual mechanical installation envelope.

From an asset-management standpoint, this is more than a display panel. The unit contains 512 MB DDR2 SDRAM, 256 MB NAND flash, and 512 KB battery-backed SRAM, runs Microsoft Windows Embedded Compact 7, and supports Ethernet, RS-232, USB, and SD/SDHC interfaces. A failed touchscreen can therefore affect operator access even when the underlying PLC remains healthy (which is why display spares should be tracked separately from controller spares).

Core Technical Specifications

GE’s published product material specifies the 15 W maximum consumption, natural-convection cooling, 0°C to 55°C operating range, and 0.8 kg weight.

Memory Revision Note

Do not assume that every IC755CSS06RDA carries the same flash capacity. GE’s release history records a change in January 2019, when the ROM configuration changed to 512 MB NAND Flash for the then-current product revision. Earlier hardware/software combinations may therefore show a different memory configuration.

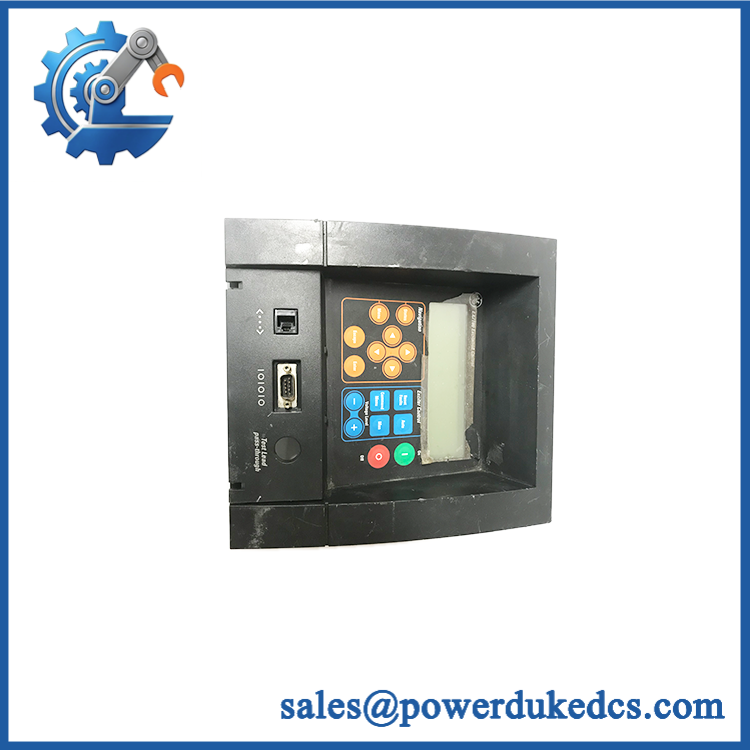

GE IC755CSS06RDA

🚨 Global Compliance & Industry Certifications

The IC755CSS06RDA has a comparatively well-defined compliance profile for industrial operator-panel hardware.

• UL Listed: GE documentation identifies UL-listed hazardous-location approvals for applicable units.
• UL Type 4X: The product literature specifies UL Type 4X for the QuickPanel+ family. This is relevant where protection against environmental contamination and washdown conditions is part of the enclosure requirement.
• CE: GE documentation identifies CE conformity against listed EMC and safety standards, including EN 60950-1 and EN 61000-6-2/-6-4.
• FCC Part 15 Class A: The family is documented for industrial electromagnetic-emissions compliance.
• IP65F: GE documentation specifies IP65F / JEM 1030 for the product family.
• RoHS: The product literature identifies RoHS compliance.
• Marine: A current distributor specification lists DNV Marine Certified for the IC755CSS06RDA. This should be checked against the actual hardware revision and certificate before marine deployment.
• Hazardous Locations: GE’s published brochure identifies Class I Division 2, Class II Division 2, and Class III Division 1 & 2 ratings for applicable QuickPanel+ configurations. These ratings are significant because the equipment’s electrical design has been evaluated for use in specified classified environments.

Verify specific lot certifications with OEM.

Do not infer a hazardous-location rating from the model number alone if the installed unit has a different label, revision, or certification marking.

🚨 Long-Term Storage & Asset Preservation Guide

Protect the touchscreen face first. The resistive touchscreen is the most mechanically exposed part of the asset. Keep the display covered during storage, prevent pressure on the LCD surface, and avoid stacking heavy cartons on top of the front bezel.

Preserve the battery-backed memory system. The includes 512 KB battery-backed SRAM, and GE identifies a dedicated replacement battery pack, IC755ACCBATT, in its accessory list. For long-term warehouse storage, record the battery condition and date of any replacement rather than treating the display as maintenance-free electronics.

Control temperature swings and moisture. The published storage range is only -10°C to +60°C, narrower than many PLC I/O cards. Do not store the unit where condensation, high heat, or repeated freeze/thaw cycles are expected.

For sealed inventory, retain the original ESD packaging, gasket/accessory packaging, label information, revision history, and inspection record. A damaged original carton can be relevant evidence when authenticity or certification traceability is reviewed.

Physical Installation Prerequisites

The is installed through a panel cutout, with published cutout dimensions of 183.5 × 128.5 mm. Panel-mount brackets and a mounting gasket are identified as supplied installation components. A VESA 75 mounting option is also documented.

Before installation:

• Confirm the enclosure cutout dimensions before removing the existing HMI.
• Inspect the mounting gasket and retaining clips/brackets before reuse.
• Maintain the manufacturer’s environmental limits: 0°C to +55°C operating, with natural convection as the specified cooling method.
• Provide room behind the display for the 24 VDC connector, Ethernet cable, RS-232 cable, USB devices, and service access.
• Do not obstruct the rear ventilation path with dense wiring bundles or heat-producing devices.
• Use a properly controlled 24 VDC supply within the specified ±20% tolerance.
• Bond the panel and protective grounding system according to the cabinet electrical standard.
• Verify EMC practices for USB, Ethernet, and RS-232 cabling. GE notes that cable shielding, RS-232 cable length, filtering, wire separation, and cable routing can affect EMC performance in the actual installation.

The RS-232 cable length should be limited to 15 m / 49.2 ft under the documented EMC installation guidance.

Buyer’s FAQ

Q1. What HS tariff code should be used for the ?

One current industrial listing assigns 8471609000 to the .

Treat that as an indicative classification, not a binding customs decision. The importing country’s tariff schedule may use a different national extension, and the customs broker should validate the final code based on the product’s HMI/operator-interface function.

Q2. What Country of Origin should appear on the commercial invoice?

A current supplier record identifies the Country of Origin as the USA for the .

For formal trade documentation, verify the COO against the physical nameplate and supplier origin declaration. The shipment origin shown as a warehouse or logistics location is not proof of manufacturing origin.

Q3. Should I insure a shipment of one ?

For replacement HMI equipment, insurance is sensible where the plant depends on a specific display and the replacement lead time is uncertain. The unit is relatively light—GE lists approximately 800 g—but the operational cost of a damaged HMI can substantially exceed the physical value of the carton.

Use impact-resistant packaging around the LCD face, retain photographs before shipment, and record carton dimensions, gross weight, declared value, serial information, and visible condition.

Q4. Does the include the latest firmware?

Not necessarily. The product has gone through multiple firmware/software release generations. GE’s release history shows firmware builds progressing from earlier releases through Build 18_18B, with specific web upgrade kits issued for different hardware revisions.

The documented release history also shows that later revisions changed underlying memory configuration, including the move to 512 MB NAND flash in the 2019 revision history.

For an installed-base replacement, specify the exact hardware suffix/revision and required firmware build rather than relying on a generic “latest firmware” description.

Lifecycle & Asset-Control Note

The remains identifiable in current Emerson documentation, including release-history records through 2023, when updated product labeling and certification information were issued for later variants.

For warehouse planning, maintain revision-specific records, especially where an HMI application depends on a particular firmware build or flash-memory configuration. A replacement should be inspected as a complete operator-interface asset—display, touchscreen, connectors, battery-backed memory, certification marking, and firmware—not merely as a 6-inch LCD spare.
