GE IC800SSI216RD2-CE S2K | Series AC Servo Motor Controller

• Full Model Number: IC800SSI216RD2-CE
• Lifecycle Status: Legacy / Obsolescence-risk
• Core Function: S2K Series AC servo motor controller
• Top 3 Technical Specs: 180–250 VAC three-phase input | DeviceNet programming | Position feedback with 8 discrete inputs and 8 discrete outputs
• Stock & Condition: Physical stock confirmation required | New Surplus / Tested Refurbished by lot | Emergency dispatch subject to order cutoff

Module 3: Obsolescence & Supply Chain Deep Dive

A failed servo controller can stop a production axis immediately, and sourcing an older S2K unit becomes harder once standard distribution channels no longer carry regular inventory. The GE Fanuc IC800SSI216RD2-CE is identified as a 2K/S2K Series AC servo controller for a 180–250 VAC three-phase input, with DeviceNet programming, position feedback, a serial port, and eight discrete inputs plus eight discrete outputs. The controller is also associated with specific GE Fanuc motors, including the MTR-3S45-H, MTR-3S46H, MTR-3S63-G, MTR-3S65-G, MTR-3S67-G, MTR-3T45-1, MTR-3T54-H, and MTR-3T55-H families.

For an existing S2K motion system, replacing the failed controller can be far cheaper than redesigning the axis around a different drive platform. The hardware already fits the installed control concept, motor interface, feedback arrangement, and field wiring, so the main TCO benefit comes from reducing engineering redevelopment, mechanical and electrical changes, software reconfiguration, and commissioning time. (Legacy servo hardware can have uncertain factory availability; verified surplus stock or tested repair inventory may therefore shorten the recovery window.) The commercial decision should include lost production hours, technician travel, machine requalification, and motion-program changes—not just the controller purchase price. GE Fanuc parts records also show this model as an S2K servo controller rather than a general-purpose PLC module.

Module 4: Compatibility & Replacement Matrix

Published technical records identify the IC800SSI216RD2-CE as a GE Fanuc VersaMotion servo motor controller operating from 180–250 VAC three-phase, with DeviceNet programming, position feedback, a serial interface, and 8 discrete inputs/8 discrete outputs.

Field Traps — Watch Out

• Motor and feedback mismatch: Do not approve the replacement from the controller part number alone. The IC800SSI216RD2 is documented for specific GE Fanuc motor families, so verify the motor model and feedback arrangement before energizing the replacement.
• Cooling and installation orientation: Available technical records specify a vertical heat-sink orientation and approximately 3 inches of clearance on all sides for cooling. The stated operating range is 0–50 °C, with non-condensing humidity of 5–95%.

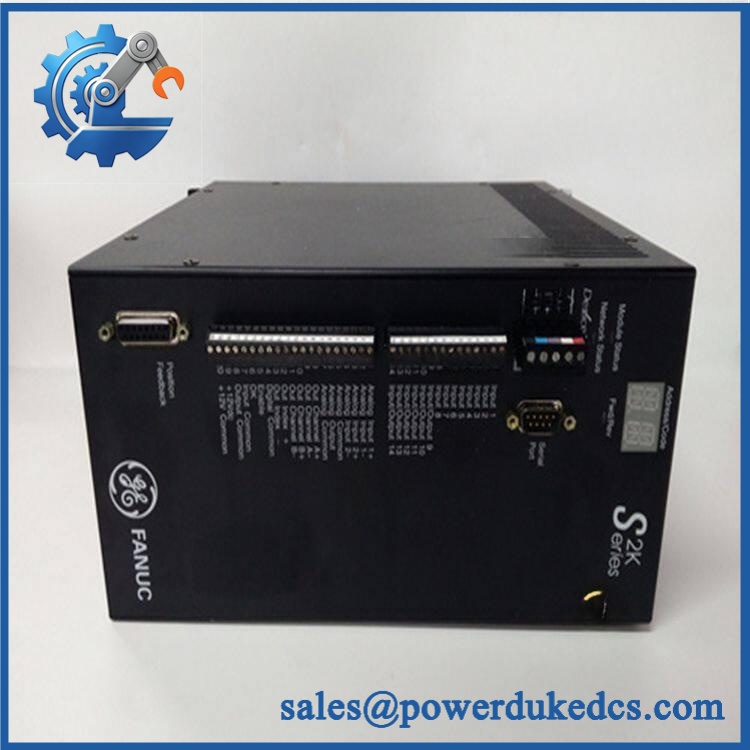

GE IC800SSI216RD2-CE S2K

Module 5: Quality Assurance & Testing SOP

A strict pre-shipment inspection for the IC800SSI216RD2-CE should include:

• Identity verification: Match the full -CE designation, GE Fanuc markings, serial number, revision information, terminal arrangement, and connector layout.
• OEM anti-counterfeit visual inspection: Examine labels, PCB construction, component placement, connector quality, fasteners, solder work, and evidence of unauthorized board repair.
• Mechanical inspection: Check the housing, heat sink, mounting points, power terminals, motor connections, feedback interface, serial interface, and DeviceNet connection.
• Power-on self-test (POST): Apply the specified three-phase test supply and verify normal startup, module status, network status, and front-panel diagnostic indications.
• Diagnostic display test: Verify the two-character diagnostic display and confirm expected normal operation and fault reporting. Published descriptions identify examples such as OK, OV for motor overvoltage, and LE for lost enable.
• DeviceNet communication test: Establish controlled network communication and verify node addressing, command exchange, and status feedback.
• Position feedback test: Connect the applicable test motor or simulator and verify feedback acquisition and stable position response.
• I/O load testing: Exercise all applicable discrete inputs and outputs under controlled electrical loads.
• Servo command test: Verify enable, forward/reverse operation, commanded motion, and controlled stop behavior.
• Thermal/load test: Run the controller under representative load while monitoring temperature, current, diagnostic status, and communication stability.
• Final QC release: Record serial number, hardware revision, test results, condition grade, packaging status, and QC authorization.

The model is documented as a servo motor controller rather than a passive interface module, so functional testing should cover the complete drive/control path rather than stopping at a simple power-up check.

Module 6: Procurement & Lifecycle FAQ

Is the GE -CE genuinely in stock, and what is the cutoff for emergency shipping?
Physical inventory should be verified against the exact model and suffix before PO release. Emergency dispatch depends on stock location, payment clearance, export documentation, and the carrier’s daily collection schedule.

How do you guarantee the condition and authenticity of an obsolete or surplus S2K controller?
Require full model and serial verification, OEM marking inspection, PCB examination, power-up diagnostics, DeviceNet testing, position-feedback verification, I/O load testing, and documented final QC. The condition should be explicitly stated as New Surplus or Tested Refurbished.

Are there compatibility issues my engineers should check before issuing the PO?
Yes. Verify the 180–250 VAC three-phase supply, installed motor model, feedback configuration, DeviceNet settings, I/O assignment, and control parameters. The controller is documented for specific GE Fanuc motor families, so motor compatibility must be confirmed before installation.

Can the -CE be used as a direct replacement?
Treat it as a conditional drop-in replacement when the existing system uses the same S2K configuration, motor, feedback arrangement, and network setup. A parameter backup and controlled commissioning test should be completed before returning the axis to production.

What warranty and return terms should procurement require?
The quotation should spec model, condition grade, serial traceability, pre-shipment test scope, warranty period, DOA coverage, and return authorization procedure. A published repair supplier currently lists a 12-month whole-unit warranty for its repaired and replacement inventory, illustrating the type of coverage procurement should request in writing.
