GE ICMFA000000-ABAC | UL/ATEX Mini Field Agent

Description

• Model & Brand: GE ICMFA000000-ABAC, identified in commercial listings as a GE Mini Field Agent (MFA). GE/Emerson documentation officially identifies ICMFA000000 as the base Mini Field Agent catalog number; the “-ABAC” suffix is not separately listed in the official 2019 sales-catalog table, so the suffix should be verified against the physical nameplate before shipment.
• Physical Dimensions: Approximately 140.5 × 135.3 × 39.4 mm (H × W × D), based on the GE/Emerson Field Agent manual. A separate commercial listing gives a different dimensional orientation, so the OEM figure above should be used for engineering reference.
• Estimated Shipping Weight: Not established from the OEM manual. Current commercial listings report approximately 0.9 kg, but that figure should be treated as a freight-planning estimate rather than a certified net weight.
• Mounting: DIN rail or panel mount.
• Primary Function: Compact industrial field-data gateway for collecting equipment information and transmitting it to higher-level or cloud-based systems.
• Communication Interfaces: Four 10/100 Ethernet ports, RS-232, RS-485, CAN bus, USB 2.0, and MicroSD; the base ICMFA000000 configuration does not include an integrated cellular modem or Wi-Fi option.
• What’s in the Box: The base MFA includes a Rayovac BR2032-BA, 3 V, 195 mAh lithium coin-cell battery for the real-time clock. Wi-Fi and cellular antenna assemblies belong to other MFA catalog variants, not the base ICMFA000000 configuration.
• Receiving Check: Record the exact nameplate code, serial/date information, revision marking, MAC/network identifiers where applicable, battery presence, DIN-rail hardware, connectors, and carton condition.

Product Introduction

The ICMFA000000-ABAC belongs to GE’s Mini Field Agent hardware family, positioned between plant equipment and higher-level data platforms rather than acting as a conventional PLC CPU. GE’s architecture documentation describes the MFA as a machine-to-cloud collector based on an 800 MHz TI AM3352 ARM processor, with embedded Linux and pre-integrated Predix Machine software. It can collect and transmit machine data while also providing an edge application environment.

Physical preservation needs more attention than the compact enclosure might suggest. This unit contains processor memory, flash storage, network interfaces, a TPM, and a lithium RTC battery (the battery is specified for a six-year backup life in the manual). For controlled inventory, retain the complete part marking because the official catalog distinguishes ICMFA000000 from cellular and Wi-Fi variants by catalog number.

Core Technical Specifications

The OEM Field Agent manual specifies the 512 MB DDR3 / 2 GB flash, 9–30 VDC input, approximately 4 W consumption without cellular hardware, exact housing dimensions, communication interfaces, and 415,750-hour MTBF for the base configuration.

For cabinet heat calculations, the nominal 4 W figure is more useful than simply estimating from the DC input voltage. It represents the published consumption for the non-cellular base unit, while cellular versions have a substantially higher published value of approximately 8.4 W.

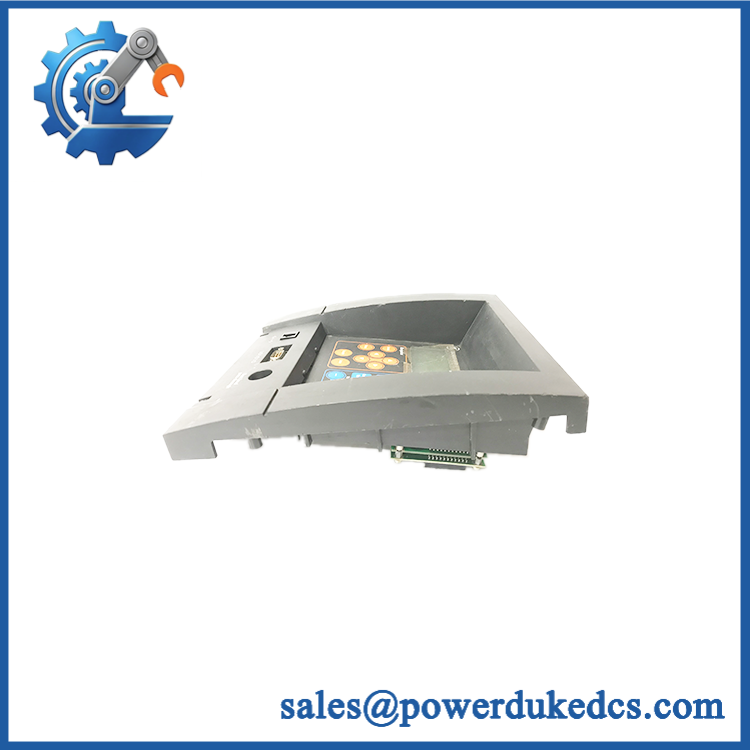

GE ICMFA000000-ABAC

🚨 Global Compliance & Industry Certifications

The Field Agent manual states that certification markings vary by individual product part number and that compliance must therefore be verified from the actual marking on the physical product. The documented certification framework includes:

• UL / CSA safety approvals, including standards covering information technology equipment and programmable-control equipment for hazardous locations.
• Class I, Division 2, Groups A-D hazardous-location marking for applicable certified configurations.
• Class I, Zone 2, Gas Group IIC for applicable configurations.
• ATEX, Equipment Group II, Category 3, Gas Group IIC.
• IECEx, certificate reference documented as IECEx UL 17.0023X in the Field Agent manual.
• CE / EU regulatory conformity, including applicable radio-equipment and RoHS provisions for the relevant product variants.
• FCC / Industry Canada authorization applies to intentional-radio configurations; the base no-radio configuration should not be represented as carrying every radio approval listed for cellular or Wi-Fi models.

For hazardous-area work, the Class I Division 2 or Zone 2 designation is important because it establishes suitability only within the defined certified conditions. Cabinet construction, installation method, wiring, temperature limitations, and the exact catalog variant still have to satisfy the project requirements.

Verify specific lot certifications with OEM. The manufacturer’s own manual explicitly states that the actual product marking is the controlling evidence for certification and standards compliance.

🚨 Long-Term Storage & Asset Preservation Guide

Protect the RTC battery record. The MFA includes a BR2032-BA lithium coin cell with an expected six-year backup life. For multi-year warehouse storage, record the manufacturing/date information where available and include the battery condition in periodic asset inspections.

Keep the electronics inside ESD-safe packaging. The processor, flash memory, Ethernet interfaces, and TPM are all static-sensitive electronic assemblies. Use the original shielding bag when available and avoid placing the exposed module on metal shelves or conductive work surfaces.

Control condensation rather than chasing the absolute temperature limit. The published operating range extends to -40°C to +70°C, with 5–95% non-condensing humidity; ATEX operation is specified as 0°C to +70°C. Rapid movement between cold storage and humid ambient air can create condensation even when the nominal temperature remains within range.

One preservation practice is often overlooked: maintain a record of the installed software image or firmware revision alongside the hardware serial number. The unit is a Linux-based computing platform, so software state can be as relevant to replacement acceptance as the enclosure itself.

Physical Installation Prerequisites

The Mini Field Agent is intended for DIN-rail or panel mounting, with a compact enclosure measuring approximately 140.5 × 135.3 × 39.4 mm.

• Mounting: Use the specified DIN-rail or approved panel-mount arrangement; do not use cable weight or adhesive mounting as a substitute for the mechanical retention system.
• Power: Supply 9–30 VDC, with 24 VDC as the nominal operating point. The power connector accepts 22–16 AWG copper conductors, and the documented terminal torque is approximately 2 in-lb (0.23 N·m).
• Power cable length: GE/Emerson specifies that wiring to the power-input terminals should be limited to 30 m.
• RS-232: Keep the serial cable within the documented 15 m maximum.
• RS-485: The published maximum communication distance is 305 m / 1,000 ft, subject to the correct physical-layer installation.
• CAN: Maximum documented communication distance is 40 m, with a maximum communication rate of 1 Mbps.
• Thermal environment: Keep the equipment within the applicable temperature class; use above 55°C requires installation in a restricted-access location according to the MFA documentation.
• Ventilation: Do not bury the enclosure in tightly packed wire duct or place heat-producing devices directly against it. The published 4 W consumption still produces cabinet heat.
• Grounding: Follow the cabinet protective-grounding and EMC design used for the installation. Network cable shields should be handled according to the site grounding scheme rather than tied indiscriminately at every termination.
• Hazardous areas: For Zone 2 or Class I Division 2 installations, verify the exact product marking and installation restrictions before energizing or replacing the device.

Buyer’s FAQ

Which HS tariff code should I use for -ABAC?

There is no single tariff code that can safely be declared worldwide from the model number alone. Historical import data has shown 8517-series communications-equipment classifications for GE Mini Field Agent hardware, but the correct national tariff extension depends on the importing country’s customs rules and the declared principal function. One historical customs record classified under 85176290.

Use the broker’s confirmed classification for the destination country rather than copying a supplier’s database field.

What about Country of Origin?

Commercial listings for the exact ICMFA000000-ABAC identify the United States as the manufacturing origin, but that is not sufficient evidence for a formal preferential-duty claim or customs audit.

Keep the COO consistent across the commercial invoice, packing list, and any Certificate of Origin. When the origin is material to duty treatment, obtain manufacturer-backed documentation.

Should shipping insurance be added?

For a critical edge gateway, insurance should be evaluated against replacement value and the operational cost of a failed shipment. Photograph the label, serial information, connector condition, and packaging before carrier handoff; those records are useful evidence if the carton arrives damaged.

Does -ABAC come with the latest firmware pre-loaded?

Do not assume so. The Field Agent platform supports downloadable firmware packages, including manual and cloud-based update procedures. GE documentation also provides a dedicated Mini Field Agent firmware-image path.

For configuration-controlled replacements, request the actual software/firmware revision from the unit and compare it with the installed Field Agent environment before deployment. A current hardware purchase does not by itself establish that the software image is current.

Asset-Control Summary

GE should be managed as a Mini Field Agent computing asset rather than a conventional PLC I/O spare. The official documentation establishes as the base no-cellular/no-Wi-Fi MFA catalog number, while the buyer-supplied “-ABAC” suffix should be verified directly from the physical nameplate because that exact suffix does not appear in the official orderable-item table reviewed here.

For warehouse release, preserve five records together: exact part marking, serial/date information, software revision, battery condition, and certification markings. The device supports 512 MB DDR3, 2 GB flash, 9–30 VDC input, approximately 4 W consumption, and DIN-rail or panel mounting, with environmental capability down to -40°C for the standard configuration.
