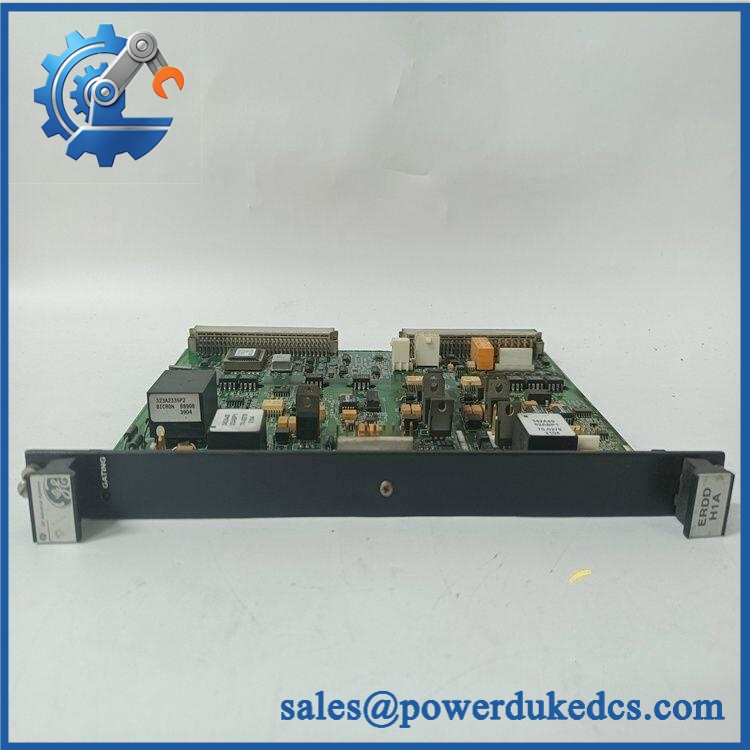

GE IS200ERDDH1ABA | EX2100 Exciter Dynamic Discharge Board

• Brand: GE
• Full Model Number: IS200ERDDH1ABA
• Lifecycle Status: Legacy / Obsolescence-Risk
• Core Function: EX2100 Exciter Regulator Dynamic Discharge and interface control
• Top 3 Technical Specs: EX2100 excitation system; DC-link dynamic discharge control; analog feedback and bridge-status monitoring
• Stock & Condition: New surplus / tested refurbished — verify exact EX2100 power-conversion configuration before PO

The IS200ERDDH1ABA is identified in available technical references as a GE EX2100 Exciter Regulator Dynamic Discharge Board (ERDD). It is associated with dynamic-discharge control and feedback functions within the excitation regulator power-conversion architecture.

Module 3: Obsolescence & Supply Chain Deep Dive

A failed IS200ERDDH1ABA can interrupt dynamic-discharge functionality within an EX2100 excitation system, creating a serious maintenance issue even when the remaining regulator electronics continue operating. The board is associated with DC-link feedback, bridge-status monitoring, and dynamic-discharge control inside the excitation power-conversion assembly. Available technical references describe the board as an ERDD component and identify simplex and redundant installation arrangements.

From a TCO perspective, replacing the exact board can preserve the existing EX2100 cabinet, power-conversion assembly, field wiring, discharge circuitry, and commissioned control configuration. That is generally less expensive than redesigning the excitation control system. The main procurement risk is configuration and revision matching. The IS200ERDDH1ABA has a specific H1 functional revision and A/B artwork-revision structure, so the replacement should be compared against the installed board before approval. Some technical references also associate the board with different mounting and operating arrangements depending on whether the system is simplex or redundant.

Module 4: Compatibility & Replacement Matrix

Field Traps — Watch Out

Revision mismatch: The H1ABA suffix identifies a specific hardware and artwork revision. Do not accept an IS200ERDDH1A board with a different revision simply because the base family appears identical. Compare every board marking against the failed unit before installation.

Mounting and architecture: Available technical references describe different mounting arrangements and operating roles for simplex and redundant configurations. Confirm the installed power-conversion architecture before removing the board.

GE IS200ERDDH1ABA

Module 5: Quality Assurance & Testing SOP

The should undergo controlled inspection and functional testing before shipment.

1. Incoming inspection

• Record manufacturer, complete part number, serial/date code, and all revision markings.
• Perform OEM anti-counterfeit visual inspection.
• Inspect PCB surfaces, backplane connectors, terminals, relays, capacitors, and mounting hardware.
• Check for corrosion, contamination, cracked components, thermal damage, damaged connector pins, or unauthorized rework.

2. Configuration verification

• Confirm identification.
• Record functional and artwork revisions.
• Verify the intended installation arrangement.
• Confirm mounting location and backplane interface.
• Photograph all identification markings and connector areas for traceability.

3. Electrical inspection

• Perform applicable continuity checks.
• Inspect power, feedback, and signal paths.
• Verify connector pin integrity.
• Perform controlled insulation-resistance testing where applicable.
• Check for abnormal resistance or short circuits on relevant circuits.
• Verify grounding-path integrity according to the approved test procedure.

4. Power-on and functional testing

• Install the board in a compatible test configuration.
• Apply controlled system power.
• Perform power-on self-test (POST) at the system level where supported.
• Check status indications and diagnostic reporting.
• Verify host-system recognition.
• Simulate applicable DC-link feedback signals.
• Verify dynamic-discharge command and feedback behavior under controlled test conditions.
• Check relevant bridge-status and diagnostic inputs.
• Perform I/O load testing on applicable control circuits.
• Run an extended operational test to identify intermittent faults.

5. Final QC

• Record diagnostic results, signal measurements, configuration, serial number, revision, and test date.
• Generate a unit-specific Test Report.
• Verify P1/P2 or applicable connector condition.
• Confirm mechanical mounting integrity.
• Package using ESD and mechanical protection.
• Apply final QC identification before shipment.

Module 6: Procurement & Lifecycle FAQ

Is GE genuinely in stock, and what is the emergency-shipping cutoff?

Current equipment listings show being offered as available stock by several suppliers, but physical allocation should be confirmed against the actual serial-numbered board before the PO is released. Emergency dispatch depends on completed QC, payment/order clearance, warehouse processing, and the courier cutoff.

How do you guarantee the condition and authenticity of surplus units?

Require complete part-number and revision verification, PCB inspection, connector inspection, controlled power-up, host recognition, dynamic-discharge functional simulation, diagnostic verification, and a unit-specific Test Report. Actual photographs of the supplied board should be retained with the procurement record.

Are there any firmware compatibility issues I should warn my engineers about before issuing the PO?

The main concern is hardware revision and configuration, rather than treating the board like a standalone programmable controller. Record the existing regulator configuration, board revision, installation position, relevant diagnostic settings, and associated power-conversion hardware before replacement.

Can I substitute another GE discharge board for ?

Not automatically. Similar GE excitation boards can perform different regulator, interface, or discharge functions. The complete identification, revision, connector arrangement, mounting location, and installed architecture should be matched before approving substitution.

What warranty and return terms should procurement require?

Specify , serial number, hardware and artwork revision, tested condition, warranty period, DOA criteria, acceptance window, and return procedure in the PO. Functional acceptance should include successful system initialization, diagnostic verification, controlled dynamic-discharge testing, and confirmation of the board’s required feedback signals.
