- GE IS200ESYSH2A | Industrial Power Control Hardware
2. Unboxing & Physical Snapshot
- Model & Brand: GE IS200ESYSH2A

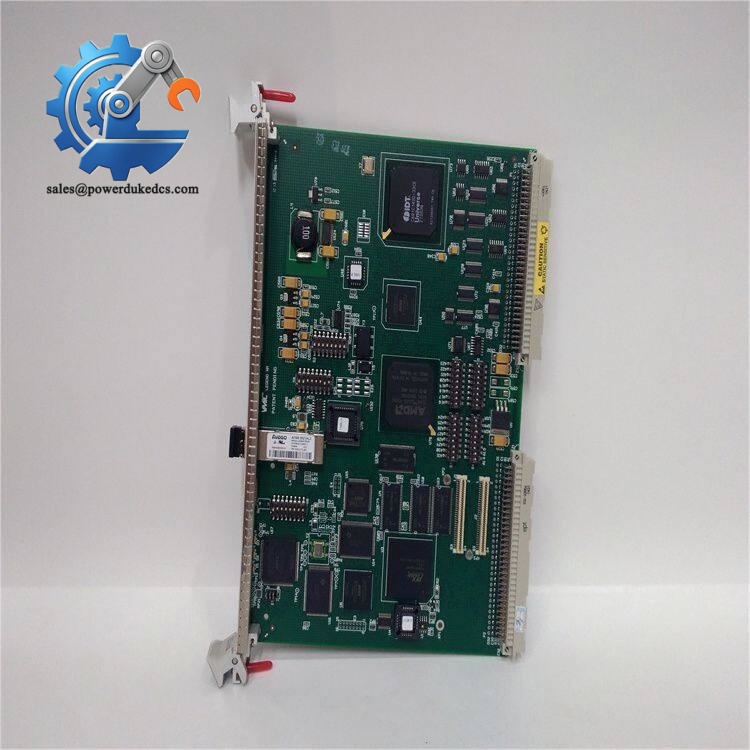

- Product Type: GE EX2100e Excitation Control System Interface Board (ESYS). This board provides interface functions between the excitation controller and external control signals, supporting redundant control configurations within GE generator excitation systems.
- Approximate Physical Dimensions (W × H × D):
- Approximately 110 × 60 × 67 mm
- Estimated Shipping Weight:
- Board weight: approximately 0.14 kg
- Typical packaged shipping weight: 0.4–0.6 kg
- What’s in the Box:
- GE IS200ESYSH2A System Interface Board
- Board identification label
- Connector interface points
- Anti-static (ESD) shielding bag
- Protective foam packaging
- Documentation when supplied
3. Product Introduction
The GE IS200ESYSH2A is installed inside the EX2100e excitation control cabinet where generator field regulation signals, auxiliary contacts, and controller interfaces must be transferred through a controlled hardware path. The board connects with the excitation control architecture and supports redundant control sections (M1 and M2), which is critical for generator applications requiring continuous monitoring and regulated output control.
This is a system interface board, not a standalone controller. Replacement requires more than matching the catalog number. Verify board revision, excitation system configuration, terminal connections, and application records before installation. Inspect the PCB surface, connector headers, and mounting points carefully. Small physical defects can create intermittent excitation faults that are difficult to reproduce during testing.
4. Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | General Electric (GE) |
| Model | IS200ESYSH2A |
| Product Family | EX2100e Excitation Control System |
| Module Type | System Interface Board |
| Function | Excitation controller signal interface |
| Control Sections | M1 and M2 redundant sections |
| General Purpose Inputs | 52 inputs |
| Auxiliary Inputs | 7 isolated contact inputs |
| Auxiliary Input Supply | 55 VDC |
| Power Supply | Dual control system supply arrangement |
| Processor | Interface/control board electronics |
| Memory | Firmware-dependent onboard memory |
| Communication | Excitation system backplane/interface |
| Power Consumption | Low-power electronic board operation |
| Heat Dissipation | Passive convection cooling |
| Mounting Method | GE excitation cabinet rack installation |
| Operating Environment | Industrial control cabinet |
| Approximate Dimensions | 110 × 60 × 67 mm |
| Approximate Weight | 0.14 kg |
GE IS200ESYSH2A
5. ? Global Compliance & Industry Certifications
Expected regulatory considerations for the GE IS200ESYSH2A include:
- CE Mark: Applicable when installed as part of a compliant GE EX2100e excitation system meeting EMC requirements.
- UL/cUL Listed: May apply based on the complete generator excitation cabinet certification package.
- ATEX / IECEx: Not typically a standalone hazardous-area device. Hazardous-area suitability depends on the complete certified excitation system installation.
- Marine Approvals (DNV GL): Applicable only when used within approved marine generator control applications.
For power generation equipment, documentation traceability is essential. Excitation control hardware affects generator field regulation, so replacement records, revision details, and certification documents should be maintained.
Verify specific lot certifications with OEM.
6. ? Long-Term Storage & Asset Preservation Guide
Keep the IS200ESYSH2A sealed in its original anti-static (ESD) shielding bag. The exposed connector pins and PCB surfaces are the primary areas requiring protection.
Maintain storage humidity below 60% RH. Moisture exposure may oxidize contacts and degrade protective coatings on electronic assemblies.
Inspect stored boards every 12–24 months. Check the edge connectors, solder joints, PCB coating, mounting holes, and identification label. Before installation, confirm the hardware revision matches the installed EX2100e excitation configuration.
7. Physical Installation Prerequisites
- Install the IS200ESYSH2A only in the approved GE EX2100e excitation cabinet configuration.
- Confirm rack position and mating connector arrangement before insertion.
- Inspect connector pins for contamination or mechanical damage.
- Secure board retention hardware after installation.
- Maintain cabinet airflow paths for natural convection cooling.
- Leave approximately 50 mm clearance around ventilation areas where required by enclosure design.
- Verify protective earth grounding of the excitation cabinet.
- Separate low-level control wiring from high-energy generator circuits.
- Perform excitation diagnostics and signal verification after replacement.
8. Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly used for the GE IS200ESYSH2A?
A: Industrial control circuit boards are commonly reviewed under HS 8538 or related electrical control equipment classifications. Final classification depends on the importing country’s customs rules and declared function.
Q: Does Country of Origin (COO) affect this spare board shipment?
A: Yes. COO documentation supports customs clearance, duty evaluation, and equipment traceability. Ensure the origin shown on the invoice matches available product records.
Q: Is shipping insurance recommended for the IS200ESYSH2A?
A: Recommended. The board contains sensitive electronic components and connector interfaces. Transit shock, static discharge, or moisture exposure can create failures that are not visible during receiving inspection.
Q: Does the IS200ESYSH2A include the latest firmware pre-loaded?
A: Firmware availability depends on the board revision and previous service history. Confirm compatibility with the installed EX2100e excitation system before commissioning.
