Description
- Brand: GE
- Full Model Number: IS200WCSAS1ADB
- Base Model: IS200WCSAS1A
- Board Family: WCSA
- System: GE Mark VIeS Functional Safety System
- Core Function: Core analog I/O / Reuter-Stokes flame detector interface
- Primary Analog Input: 0–20 mA DC
- Transducer Power Output: 24 VDC, 21 mA
- Speed Repeater Output: ±5 V peak, 250 mA DC
- Associated I/O Pack: IS220YSILS1A / IS220YSILS1B
- Associated Safety Boards: IS200TCSAS1A and IS200SCSAS1A
- Lifecycle Status: Legacy-generation Mark VIeS accessory board; exact production status and revision availability require verification
- Stock & Condition: New Original / New Surplus / Tested Refurbished condition to be confirmed before quotation
Obsolescence & Supply Chain Deep Dive
The GE IS200WCSAS1ADB is a WCSA board associated with the Mark VIeS YSIL Core Safety Protection I/O system. GE’s published hazardous-location certification specifically lists IS200WCSAS1A as the WCSA accessory/daughterboard used with the IS220YSILS1A or IS220YSILS1B YSIL I/O pack. The same certification identifies the WCSA functions as Reuter-Stokes flame-detector/analog input, analog transducer power output, and speed repeater output.
This makes exact-part procurement important. The WCSA board is not simply a generic analog-input terminal board. It forms part of a defined safety-control hardware combination, and substitution has to preserve the associated I/O pack, terminal-board architecture, field wiring and safety-system certification basis. For a plant operating a Mark VIeS protection application, holding a verified spare can avoid a longer engineering intervention when a board-level failure occurs. (For safety-related applications, the installed system configuration and certification requirements should take precedence over a generic electrical match.)
Compatibility & Replacement Matrix
| Replacement Scenario | Classification | Engineering Assessment | Typical Labor / Downtime Planning |
|---|---|---|---|
| Exact IS200WCSAS1ADB replacement with matching revision | Drop-in Replacement | Preferred path when the existing YSIL configuration, board revision and field wiring match | Approximately 1–3 hours for replacement and functional verification |
| IS200WCSAS1A with a different revision suffix | Software Compatible / Hardware Verification Required | Confirm revision, associated YSIL I/O pack, terminal arrangement and certification documentation before substitution | Approximately 2–5 hours |
| IS200WCSAS1AEB or another WCSA revision | Hardware Verification Required | Same WCSA family does not by itself establish interchangeability. Verify complete system configuration and board revision | Approximately 2–6 hours |
| Different analog terminal board used with a YSIL system | Hardware Modification | Requires review of signal type, connector arrangement, safety architecture and approved hardware combination | Approximately 6–16+ hours |
| Generic 0–20 mA analog input module | Hardware Modification | Electrical signal similarity does not establish functional or safety-system compatibility | Engineering validation required |
Field Traps — Watch Out
Do not treat WCSA as a standalone generic analog board.
GE’s certification identifies IS200WCSAS1A as one component of the YSIL system together with the IS220YSILS1A/1B I/O pack, TCSA, SCSA and associated protection hardware.
Verify the Reuter-Stokes interface.
The documented WCSA analog input is 0–20 mA DC, and the same interface provides 24 VDC at 21 mA for analog transducer power. A replacement must preserve the field-device power and signal arrangement, not merely the input-current range.
Do not confuse WCSA with TCSA or SCSA.
These boards belong to different functional sections of the YSIL safety architecture. TCSA handles functions including E-stop, solenoid, pressure-trip, contact and speed signals, while SCSA provides contact, analog and thermocouple functions. WCSA is specifically identified for the Reuter-Stokes/analog section.

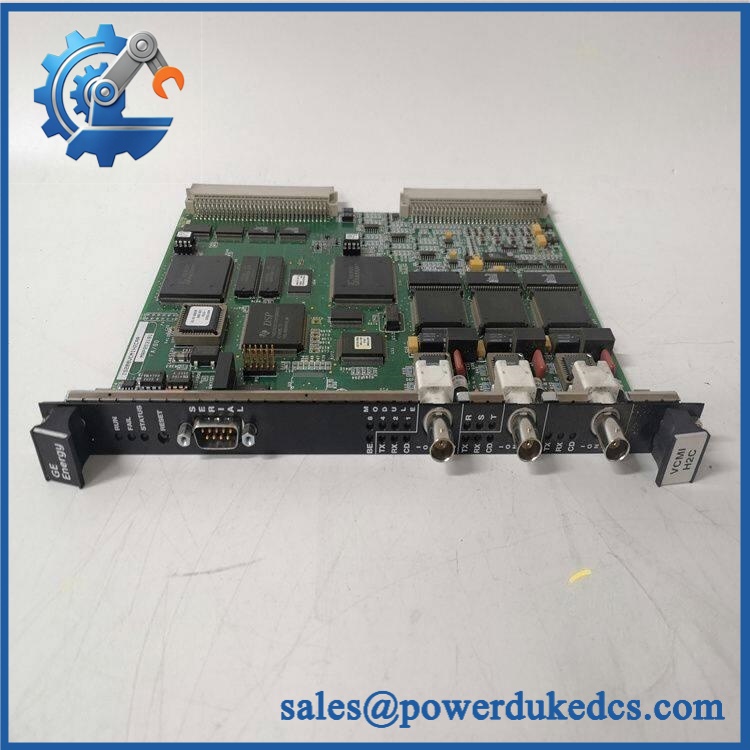

GE IS200WCSAS1ADB
Quality Assurance & Testing SOP
Because the IS200WCSAS1ADB can form part of a safety-related control assembly, inspection should cover both board identity and system compatibility.
Identity and physical inspection
- Verify complete IS200WCSAS1ADB marking
- Record serial number and hardware revision
- Confirm base-board identification as IS200WCSAS1A where applicable
- Inspect PCB condition
- Check connectors and terminal interfaces
- Inspect board mounting hardware
- Check for corrosion, contamination, cracked components or damaged solder joints
- Photograph all identification labels
- Compare physical construction against the approved replacement configuration
Electrical inspection
- Check for abnormal resistance or short conditions
- Inspect analog input circuitry
- Inspect transducer power-output circuitry
- Verify connector continuity
- Check board-to-system interface connections
- Confirm no unauthorized modifications are present
Functional test
- Install the board in an appropriate compatible YSIL test configuration
- Verify the associated IS220YSILS1A/1B I/O pack is correctly recognized
- Apply a calibrated 0–20 mA test signal
- Verify analog input response
- Test multiple current points across the operating range
- Verify 24 VDC transducer-power output under the applicable test load
- Verify the speed-repeater output where supported by the test configuration
- Check system diagnostics
- Confirm expected communication with the control system
GE’s certification specifies the WCSA analog input as 0–20 mA DC, transducer power output as 24 VDC at 21 mA, and speed repeater output as ±5 V peak with a 250 mA DC rating. These are useful acceptance-test references, while the applicable installation documentation should remain the governing test standard.
Safety-system verification
- Confirm the board is installed with the correct YSIL I/O pack
- Verify approved terminal-board combination
- Check field wiring against the site drawing
- Confirm Reuter-Stokes detector interface
- Check safety-system diagnostics
- Record configuration and test results by serial number
Final release inspection
- Record board serial and revision
- Attach functional test documentation
- Photograph front and rear identification
- Apply ESD protection
- Protect connectors during shipment
- Use shock-resistant export packaging
- Preserve the complete part-number string on the packing documentation
Procurement & Lifecycle FAQ
What is the GE IS200WCSAS1ADB?
The is a WCSA Core Analog I/O board associated with GE Mark VIeS safety-control systems. The WCSA board is documented as an accessory/daughterboard used with the IS220YSILS1A/1B YSIL Core Safety Protection I/O pack.
What does the WCSA board handle?
The WCSA section provides the documented Reuter-Stokes flame-detector/analog input interface, analog transducer power and speed-repeater output. GE specifies the analog input at 0–20 mA DC, transducer power at 24 VDC/21 mA, and speed repeater output at ±5 V peak.
Is IS200WCSAS1A the same as ?
The complete identification should be retained for procurement. Public documentation generally identifies the base WCSA board as , while supplier catalogs list specific suffix variants such as and IS200WCSAS1AEB. A suffix change should therefore be verified against the installed hardware and system documentation rather than assumed interchangeable.
Can another 0–20 mA analog board replace the WCSA?
Not as a direct substitution. The WCSA is part of the defined YSIL safety-control hardware combination. An electrically similar 0–20 mA board does not automatically provide the same field interface, power output, system diagnostics or approved safety architecture. GE’s certification explicitly defines the associated YSIL hardware combination.
What should be confirmed before purchasing?
Provide the complete part number, board revision, serial number if available, associated IS220YSILS1A/IS220YSILS1B I/O pack, field-device type, site configuration and required condition. For safety-system spares, request serial-specific photographs and documented functional testing before shipment.
