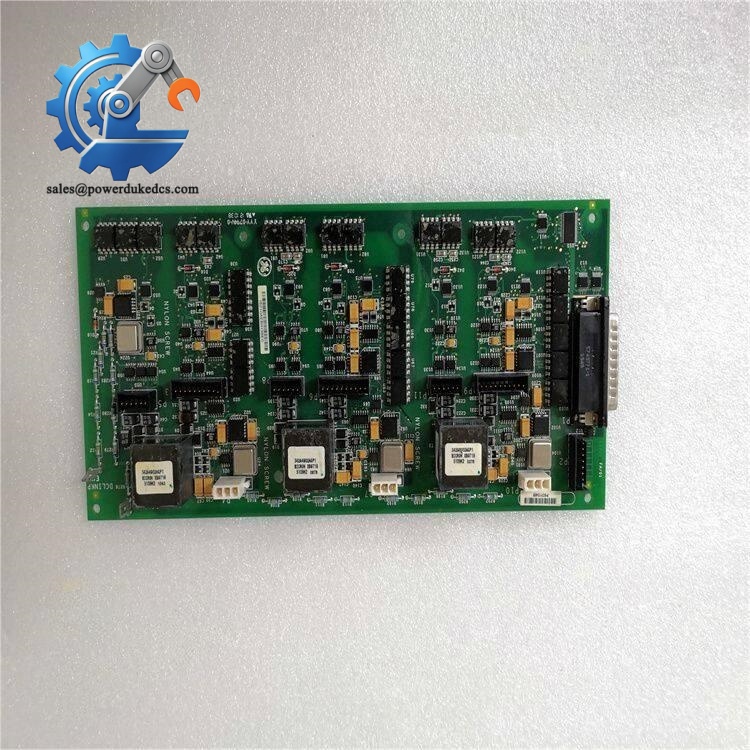

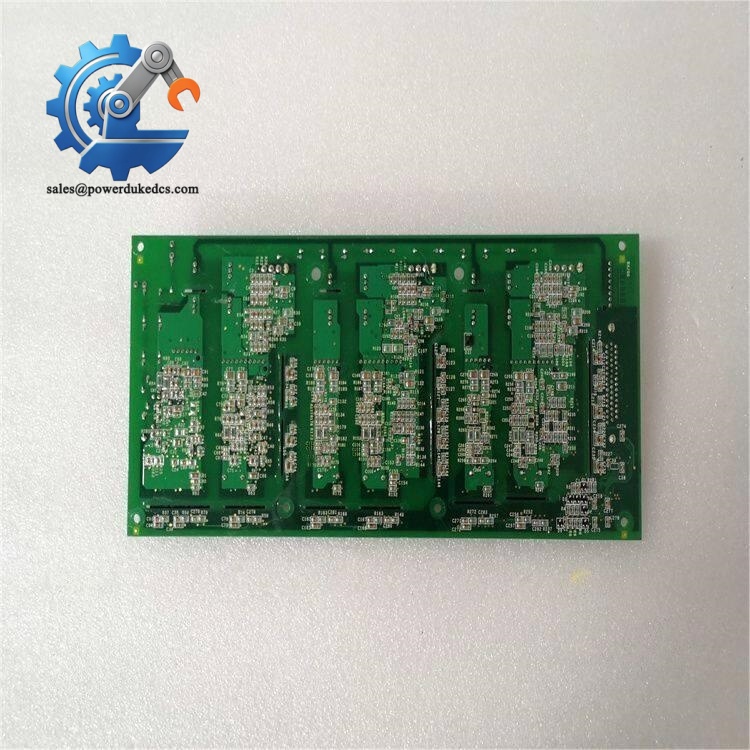

GE IS210AEBIH3BEC | Mark VIe AEBI Card, Export Ready

2. Unboxing & Physical Snapshot

Model & Brand: GE IS210AEBIH3BEC AEBI (Alternative Energy Bridge Interface) Card / I/O Interface Board for GE Mark VIe control platforms.
Approximate Physical Dimensions: Approximately 5.8 × 4.7 × 3.1 in. (147 × 120 × 80 mm), depending on installed connectors and mounting hardware.
Estimated Shipping Weight: Approximately 0.65 lb (0.29 kg) for the board assembly; packaged freight weight will vary with protective materials.
What’s in the Box:
- GE IS210AEBIH3BEC circuit board assembly
- Anti-static (ESD) shielding bag
- Protective foam insert
- Identification label with part number and serial information
- Documentation or test records when supplied by vendor

3. Product Introduction

The IS210AEBIH3BEC installs as part of the GE Mark VIe turbine and alternative energy control architecture, providing an interface point between control electronics and associated turbine or converter subsystems. Its board-level connectors, mounting points, and signal paths must align correctly with the cabinet backplane arrangement (which is critical when replacing field-installed spare cards during scheduled outages).

This card is a precision electronic assembly, not a generic replacement PCB. Maintain full traceability from receiving inspection through installation. The conformal-coated board surface, connector contacts, and sensitive semiconductor devices require controlled handling because contamination or electrostatic discharge can create faults that appear only after system startup.

4. Core Technical Specifications

Parameter	Value
Manufacturer	General Electric (GE)
Model Number	IS210AEBIH3BEC
Product Type	AEBI Card / I/O Interface Board
Application Platform	GE Mark VI / Mark VIe Control Systems
Primary Function	Bridge interface and control signal communication
Input Voltage	24 VDC system interface (configuration dependent)
Output Voltage	5 VDC logic supply reference
Analog Input Capability	Up to 8 channels, ±10 V / 4–20 mA (configuration dependent)
Analog Output Capability	Up to 8 channels, ±10 V / 4–20 mA (configuration dependent)
Resolution	16-bit signal processing
Update Rate	Approximately 1 ms
Typical Power Consumption	Approximately 2 W
Maximum Power Consumption	Approximately 3 W
PCB Protection	Conformal-coated electronic assembly
Operating Temperature	Approximately -20°C to +60°C
Storage Temperature	Approximately -40°C to +85°C
Mounting Method	Rack/backplane-mounted control board

GE IS210AEBIH3BEC

5. Global Compliance & Industry Certifications

Expected regulatory approvals and compliance records for the GE IS210AEBIH3BEC may include:

CE Mark compliance for applicable industrial installations
UL/cUL recognition where applicable to the complete GE control cabinet assembly
RoHS compliance depending on manufacturing revision
IEC industrial equipment compliance through the installed Mark VIe system
ATEX/IECEx applicability only when installed within a certified hazardous-area system
Marine approvals such as DNV GL only when specifically qualified for marine projects

UL recognition is important because it provides documented evaluation of electrical safety requirements when the equipment is integrated into an approved system environment.

Verify specific lot certifications with OEM.

6. Long-Term Storage & Asset Preservation Guide

Keep the IS210AEBIH3BEC sealed inside its original anti-static (ESD) bag until the installation window. The exposed connector pins and processor devices are vulnerable to electrostatic discharge during routine warehouse handling.

Maintain storage humidity below 60% RH. Avoid uncontrolled environments where moisture cycling can degrade conformal coating performance or promote oxidation on connector surfaces.

Perform periodic inventory inspections. Check the date code, packaging integrity, and board condition before issuing the spare. For long-held turbine control assets, record any battery condition checks or refurbishment actions in the maintenance database.

7. Physical Installation Prerequisites

Install only in the designated GE Mark VI/Mark VIe control rack location.
Verify correct backplane alignment before applying insertion force.
Use an ESD wrist strap and grounded workstation during handling.
Maintain cabinet airflow clearance of approximately 50 mm above and below rack assemblies where applicable.
Confirm cabinet grounding connections before energizing the control system.
Inspect retaining hardware and board guides to ensure the card is fully secured.
Avoid touching gold-plated connector fingers with bare hands.
GE IS210AEBIH3BEC

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is typically used for the GE IS210AEBIH3BEC?

A: Industrial control boards are commonly evaluated under HS classifications covering electrical control equipment, printed circuit assemblies, or automation modules. Some suppliers list classifications around HS 8537 categories, but the final code depends on importer interpretation and declared function. Confirm the Harmonized System code with your customs broker before shipment.

Q: Does Country of Origin affect procurement approval?

A: Yes. COO documentation affects customs clearance, contractual requirements, and regulated project records. Confirm that the country listed on the commercial invoice matches available manufacturer documentation and the physical product label.

Q: Should this board be shipped with additional insurance coverage?

A: Recommended. The IS210AEBIH3BEC is a compact electronic assembly, but replacement availability can be limited during turbine outages. Use ESD packaging, shock protection, and insured freight for high-value spare transfers.

Q: Does the IS210AEBIH3BEC include the latest firmware pre-loaded?

A: Not necessarily. Firmware, FPGA revisions, and configuration data depend on the manufacturing revision and previous service history. Verify compatibility with the installed Mark VIe controller configuration before commissioning.
