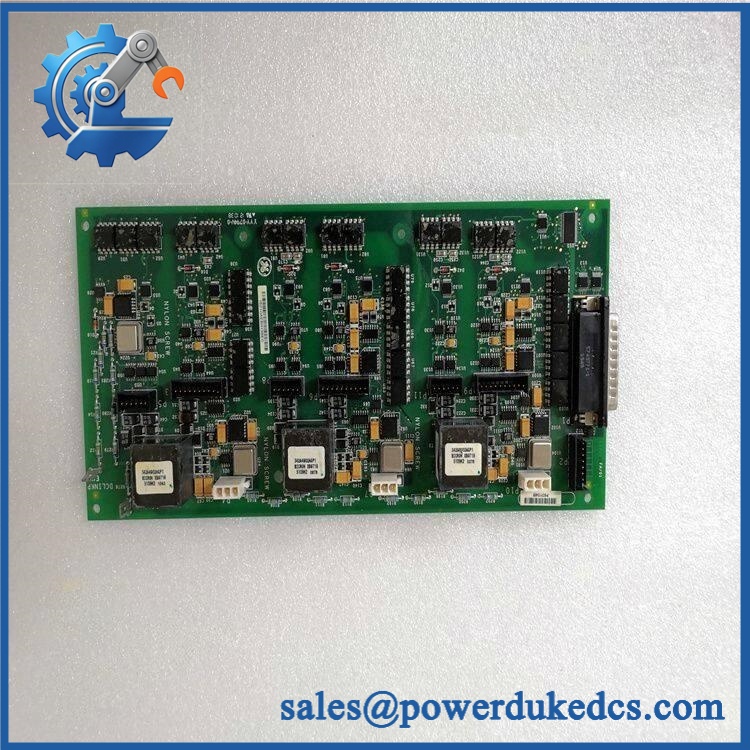

GE IS210AEDBH4AGD | AEDB Dynamic Brake Gate Driver PCB

Description

• Brand: GE General Electric
• Full Model Number: IS210AEDBH4AGD
• OEM Part Number: 109W2202P001
• Product Family: GE Energy AEDB
• Lifecycle Status: Legacy
• Core Function: Alternative Energy Dynamic Brake gate-driver PCB
• Primary Application: GE wind turbine power-conversion equipment
• Top 3 Technical Specs: 4 Bicron B9178 pulse transformers; 5 kVAC hipot rating; 10 kHz–500 kHz transformer switching-frequency range
• PCB Construction: Double-sided populated PCB
• Integrated Circuits: More than 175 reported IC devices
• Metal-Film Resistors: 20 reported on the front surface
• Plug Interfaces: 4 three-position plugs
• Additional Connectors: Multiple header and vertical-pin connectors
• Stock & Condition: New Surplus / Tested Surplus / Tested Refurbished subject to physical-unit confirmation
• Shipping: Emergency dispatch subject to confirmed stock and carrier cutoff

The GE IS210AEDBH4AGD is identified as an AEDB Alternative Energy Dynamic Brake gate-driver PCB, with GE part number 109W2202P001. A GE-focused component line card classifies the AEDB function specifically as a dynamic-brake gate-driver PCB rather than a general-purpose Mark VI bridge interface. Trade records also identify 109W2202P001 as an AEDB card used in wind-operated electrical generating systems.

The board is reported to contain four Bicron B9178 encapsulated pulse transformers, with a 5 kVAC hipot level and a stated switching-frequency range of 10 kHz to 500 kHz. Other published physical details include more than 175 integrated circuits, 20 metal-film resistors, four three-position plugs, and multiple additional board connectors.

Obsolescence & Supply Chain Deep Dive

The sourcing issue with the IS210AEDBH4AGD is closely tied to the installed wind-turbine power-conversion system. When an AEDB gate-driver PCB becomes unavailable, replacing the complete electrical assembly is a much larger intervention than restoring the affected control board. The exact IS210AEDBH4AGD / 109W2202P001 identification is therefore important because the AEDB family contains other GE assemblies with different functions and part numbers. GE component references distinguish the AEDB dynamic-brake gate-driver board from other Alternative Energy boards such as AEAA and AEBI.

The TCO case favors targeted component replacement when the existing wind-converter hardware remains serviceable. Retaining the installed cabinet, power-stage hardware, gate-drive wiring, control interfaces, and commissioning records can avoid the engineering and outage costs associated with replacing a complete converter assembly. For an exact same-part replacement, the main procurement controls are part-number verification, board revision verification, transformer population, connector identification, and controlled functional testing (particularly because this board participates in a power-electronics gate-drive circuit).

Compatibility & Replacement Matrix

The AGD suffix should be treated as part of the complete procurement identity. Current component references consistently associate with 109W2202P001, while other AEDB boards have different model numbers and GE part numbers.

Field Traps to Watch Out For

Gate-driver variant mismatch: Do not substitute another AEDB board merely because the board family name matches. GE documentation and inventory references show multiple AEDB assemblies with different board numbers and functions. Match the complete identity before shipment.

Pulse-transformer configuration: The documented board contains four Bicron B9178 pulse transformers. Verify transformer count, markings, and physical placement during incoming inspection. A board with substituted or incomplete transformer hardware should not be treated as an exact replacement.

Power-stage interface risk: This board belongs to a dynamic-brake gate-driver circuit. Gate-drive wiring and converter topology must be verified from the installed equipment documentation before energization. Do not infer pin functions from a similar GE board.

High-voltage test exposure: The reported transformer hipot level is 5 kVAC. Any dielectric testing must be performed only with an approved fixture, calibrated equipment, controlled access, and the applicable electrical safety procedure.

GE IS210AEDBH4AGD

Quality Assurance & Testing SOP

Part-number verification: Confirm the board marking as and the associated GE part number 109W2202P001. Record revision, serial number, manufacturing markings, and all identification labels.

OEM anti-counterfeit visual inspection: Compare PCB construction, component placement, GE markings, connector arrangement, transformer markings, and board geometry against the approved reference. Unexplained relabeling, substituted components, or abnormal rework triggers manual review.

PCB inspection: Examine both PCB surfaces for corrosion, contamination, cracked solder joints, lifted pads, damaged traces, burned components, mechanical impact, and evidence of electrical overstress.

Transformer inspection: Verify all four Bicron B9178 pulse transformers are present and visually intact. Check housings, leads, solder joints, and identifying markings for damage or substitution.

Connector inspection: Inspect the four three-position plugs and additional header or vertical-pin interfaces for bent contacts, oxidation, contamination, damaged insulation, and mechanical stress.

Power-on self-test (POST): Install the board in an approved test assembly and apply controlled power. Verify startup behavior, expected control signals, and absence of abnormal fault conditions.

Gate-drive signal testing: Use an isolated, controlled test fixture to verify representative gate-driver signal paths. Confirm expected pulse presence, polarity, timing, and channel-to-channel consistency within the approved test limits.

Pulse-transformer verification: Exercise the transformer-isolated gate-drive paths and verify proper pulse transfer across the documented transformer stages. Monitor for abnormal attenuation, waveform distortion, intermittent operation, or unexpected channel imbalance.

Switching-frequency testing: Where the test setup supports it, evaluate representative operation within the documented 10 kHz–500 kHz transformer switching range. Record the actual test frequency and measured waveform characteristics.

I/O load testing: Run representative gate-drive loads through the approved simulator and monitor the board for unstable pulses, thermal rise, signal loss, or repeated protection events.

Thermal observation: Operate the board under controlled conditions and inspect the transformer and semiconductor sections for abnormal temperature rise or intermittent behavior.

Isolation testing: Where authorized by the laboratory procedure, perform an appropriate insulation or hipot test using calibrated equipment and controlled safety measures. Do not improvise a high-voltage test fixture.

Final QA release: Record exact model, GE part number, revision, serial number where available, transformer markings, connector condition, POST result, gate-drive waveform results, switching-frequency test, isolation-test result where performed, technician, and test date. Approved boards are handled using ESD protection and protective mechanical packaging.

Procurement & Lifecycle FAQ

Is the genuinely in stock and what is the cutoff for emergency shipping?

Current industrial inventory references show and its GE part number 109W2202P001 in the secondary supply chain, including listings describing available inventory. Physical stock remains supplier-specific, so emergency procurement should confirm the actual quantity, exact identification, condition, warehouse location, destination, and carrier cutoff before releasing the PO.

How do you verify the condition and authenticity of an obsolete ?

Require actual-unit photographs showing the complete model and GE part number. The acceptance procedure should then cover PCB inspection, transformer verification, connector inspection, controlled power-up, gate-drive signal testing, and documented electrical checks. Commercial condition should be stated clearly as New Surplus, Tested Surplus, or Tested Refurbished.

Are there any firmware compatibility issues I should warn my engineers about before issuing the PO?

No routine firmware-loading procedure has been identified for the PCB itself in the technical references reviewed. The primary engineering concern is hardware compatibility within the dynamic-brake gate-drive circuit. Confirm the exact board revision, converter architecture, gate-drive wiring, and associated components before energization.

Is the a direct replacement for an installed board?

An exact replacement can generally be treated as a drop-in replacement at the PCB level when the installed equipment uses the same assembly. Another AEDB board should not be approved solely because it shares the AEDB family designation. GE references list multiple AEDB configurations with different part numbers.

What warranty and return terms should procurement require?

The PO should specify the exact model, GE part number, hardware revision, condition category, test status, warranty duration, DOA definition, return period, and return-freight responsibility. For power-electronics gate-driver hardware, retain actual-unit identification photographs and the complete pre-shipment test report with the procurement record.
