GE IS210BPPCH1AD | Mark VI I/O Pack Processor Board

• Model & Brand: GE General Electric IS210BPPCH1AD
• Series: GE Mark VI / Mark VIe I/O Pack Architecture
• Functional Acronym: BPPC
• Part Type: I/O Pack Processor Board
• Primary Function: Processor PCB used within compatible GE I/O pack assemblies
• Board Construction: Double-sided SMT PCB
• Communication Interfaces: 2 Ethernet ports
• Mounting: Factory-drilled corners with screw-mounted standoffs
• PCB Protection: Conformal coating
• Physical Dimensions: Approximately 110 × 76 × 22 mm reported by an independent inventory source; verify the actual assembly before cabinet planning
• Estimated Shipping Weight: Approximately 0.05 kg for the bare PCB according to one supplier record; use actual packed weight for freight documentation
• What’s in the Box: IS210BPPCH1AD processor PCB and ESD protective packaging; mating I/O pack, cables, mounting hardware, and manuals only when specifically included on the PO
• Handling Class: ESD-sensitive processor board; protect the Ethernet connectors, PCB coating, standoffs, and exposed contacts

Independent technical references identify IS210BPPCH1AD as the BPPC I/O Pack Processor Board and describe a double-sided SMT design with two Ethernet interfaces and corner mounting provisions.

Product Introduction

Architecture Hook

Within the GE turbine-control I/O architecture, IS210BPPCH1AD provides the processing layer for a compatible I/O pack. The BPPC board carries the processor and communication circuitry that handles data exchange between the field-I/O assembly and the higher-level turbine-control network. It is therefore a subassembly rather than a complete standalone controller.

The physical configuration deserves careful receiving inspection. Two Ethernet ports, factory-drilled mounting holes, rounded side cutouts, and standoff mounting are all part of the board construction. Independent records also identify an alternate part reference associated with this BPPC hardware, but that relationship should not be treated as an automatic substitute without checking the complete I/O-pack assembly and revision (especially important when maintaining legacy turbine equipment).

Core Technical Specifications

*Independent supplier data. These values should be verified against the actual serialized PCB before use for cabinet engineering, freight booking, or customs records.

🚨 Global Compliance & Industry Certifications

• CE Mark: Do not assume standalone CE conformity for the bare . Any CE declaration should be tied to the applicable GE control-system assembly.
• UL / cUL: No standalone UL/cUL certificate for this exact board was verified from the technical evidence reviewed. Record certification only when documentary evidence matches the hardware.
• ATEX / IECEx: No standalone ATEX/IECEx certification was verified for the PCB. Where the complete turbine installation is subject to hazardous-area requirements, use the certification applicable to the complete approved system and enclosure.
• Marine Approvals: No -specific DNV or ABS certification was verified.
• EMC: The dual Ethernet interfaces make grounding, cable routing, and network integrity important at cabinet level, particularly around turbine power electronics.
• Environmental Protection: Conformal coating provides additional PCB protection, but it does not make the bare board suitable for direct exposure to water, dust, or corrosive process environments.

Verify specific lot certifications with OEM.

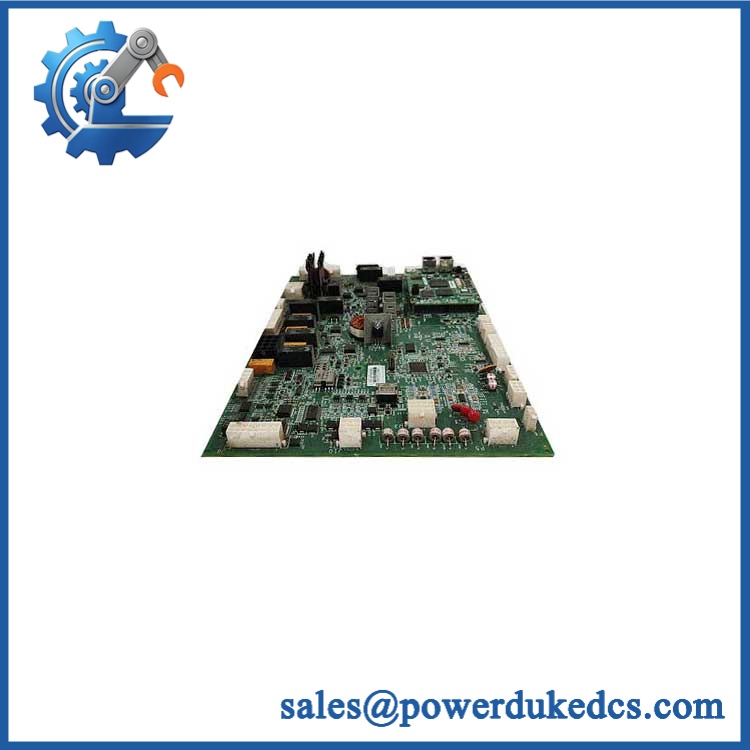

GE IS210BPPCH1AD

🚨 Long-Term Storage & Asset Preservation Guide

Keep the BPPC board inside an ESD shielding bag. The Ethernet connectors and processor circuitry should remain protected from static discharge and mechanical impact. Do not store the PCB loose with other boards.

Maintain warehouse humidity below 60% RH where practical. Conformal coating protects much of the circuit surface, but connectors, mounting hardware, and exposed contacts remain susceptible to oxidation. Avoid condensation cycles and unconditioned storage near turbine equipment.

Preserve the complete identity record. Record , serial number, hardware revision, date code, and any accessible firmware information. Independent records indicate that closely related BPPC variants exist, so the IS210BPPCH1A family designation alone is insufficient for controlled spare identification.

Inspect before energization after extended storage. Check Ethernet sockets, solder joints, mounting points, PCB coating, and connector contacts. Do not apply a generic capacitor-reforming schedule unless GE documentation for the exact board requires it.

Physical Installation Prerequisites

Install only as part of its compatible GE I/O Pack assembly. It should not be treated as a general-purpose processor or standalone Ethernet controller.

The board uses factory-drilled corner holes and standoff mounting onto a larger assembly. Ensure the mating board, standoffs, screws, and connector alignment are correct before tightening the hardware. Excessive mechanical force can distort the PCB or damage the mating connectors.

No reliable GE-specific 50 mm clearance requirement was verified for this standalone board. Do not insert an arbitrary clearance value into a cabinet drawing. Follow the complete I/O-pack mechanical arrangement and provide sufficient space for Ethernet cables, heat dissipation, service access, and board removal.

Grounding and cable shielding should follow the complete GE turbine-control installation design. Keep Ethernet and low-level control wiring away from high-energy switching paths where the cabinet design requires separation.

Power down the I/O pack before board replacement. Independent maintenance guidance specifically recommends removing power before disconnecting the board from its associated assembly and using ESD protection during handling.

Before installation, document the Ethernet connections and the physical board configuration. Both ports should be labeled according to their original network assignment; swapping network connections can create a communication fault even when the replacement PCB is electrically healthy.

Buyer’s FAQ — Logistics & Compliance Focus

Q1. What HS tariff code should be used for ?
Do not assign a final HS classification from the part number alone. The appropriate tariff heading depends on the importing country’s tariff schedule and the customs treatment of a dedicated turbine-control processor PCB. Use a precise description such as “GE turbine control I/O Pack Processor Board, ”, then have the destination-country broker validate the final classification.

Q2. Does the GE brand establish Country of Origin?
No. Brand identity does not prove manufacturing origin. One current supplier record reports USA as COO and identifies a shipment location separately, but that evidence should not automatically be applied to every historical board. Obtain a COO declaration tied to the actual unit or lot and retain it with the commercial invoice.

Q3. Should shipping insurance cover replacement value even though the PCB weighs only about 50 g?
Yes. The reported bare-board weight is approximately 0.05 kg, but the commercial exposure can be much higher because the board is a processor component for a turbine I/O pack.Record the serial number, condition, declared value, package dimensions, gross weight, and pre-shipment photographs before carrier handoff.

Q4. Does a New Original include the latest firmware pre-loaded?
Do not assume it does. This is a processor board rather than a passive termination PCB, so firmware and I/O-pack compatibility are relevant. Record the existing board’s hardware revision and available firmware information before replacement, then validate the replacement against the target GE I/O-pack configuration.

Q5. What should receiving inspection retain before this processor board enters controlled spare inventory?
Record the complete identity, serial number, hardware revision, Ethernet-port condition, PCB condition, conformal-coating condition, COO evidence, certification documents where applicable, and actual shipping measurements. Retain the associated I/O-pack model and network-port assignment with the spare record becaue the PCB is an assembly-level processor rather than an independent controller.
