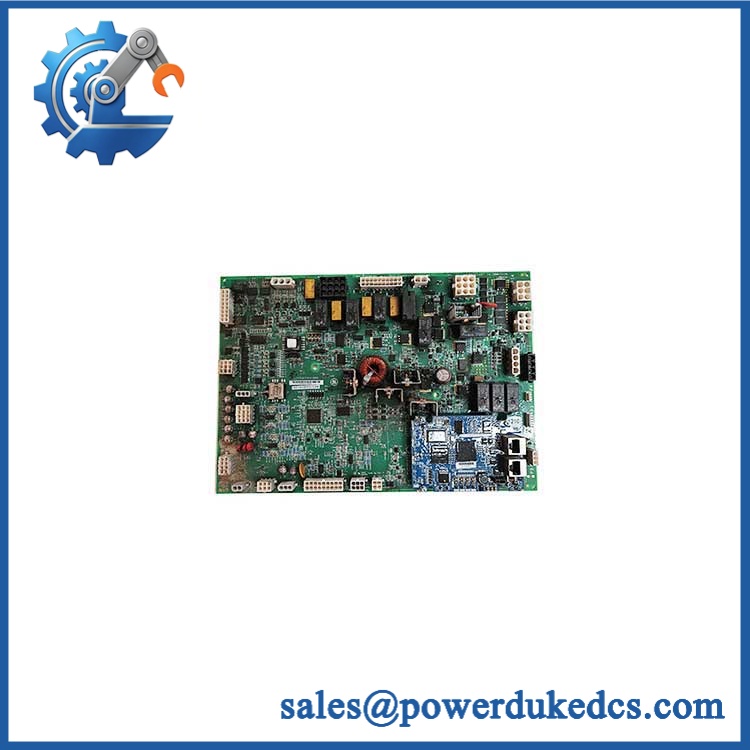

GE IS210SAMBH2AA | Mark VI Simplex Analog I/O Board

Description

• Model & Brand: GE General Electric IS210SAMBH2AA
• Series: GE Mark VI
• Functional Acronym: SAMB
• Part Type: Simplex Analog I/O / Terminal Interface Board
• Primary Function: Analog signal termination and interface within the Mark VI Simplex I/O architecture
• Physical Dimensions: Exact OEM W × H × D not reliably established from the available public technical records
• Estimated Shipping Weight: Approximately 0.5–1.0 kg packed planning range; verify the actual serialized unit before freight booking
• Mounting: Mark VI control cabinet / I/O assembly
• Board Construction: Multi-layer PCB with terminal and signal-interface circuitry
• What’s in the Box: IS210SAMBH2AA board and ESD protective packaging; mating boards, cables, terminal hardware, and manuals only when expressly included on the PO
• Handling Class: ESD-sensitive GE turbine-control PCB; protect terminal interfaces, connector pins, and PCB surfaces from contamination and mechanical impact
• Asset Identity: Retain the complete IS210SAMBH2AA number together with serial number and hardware revision

The SAMB family is associated with GE Mark VI analog signal-interface hardware. Because GE Mark VI boards can have closely related suffixes with different electrical configurations, the complete part number should be preserved during receiving and replacement work.

Product Introduction

Architecture Hook

The IS210SAMBH2AA is used within the GE Mark VI turbine-control I/O architecture as a SAMB analog signal interface board. Its role is centered on field analog signal termination and interface functions rather than processor execution. That makes terminal assignment, connector identity, and the exact board revision more important than software version during routine spare-part exchange.

For asset management, do not classify the card solely as a generic “analog board.” Mark VI analog boards can differ in signal type, terminal arrangement, and associated daughterboard or I/O electronics. The H2AA suffix therefore belongs in the controlled asset description (especially where a substitute could alter an existing turbine signal path).

Core Technical Specifications

The absence of verified standalone dimensional and electrical figures is intentional. For an audit-controlled asset, unsupported values are more dangerous than a documented “not verified” status.

GE IS210SAMBH2AA

🚨 Global Compliance & Industry Certifications

• CE Mark: Do not assign standalone CE conformity to IS210SAMBH2AA without documentation covering the exact board or complete Mark VI assembly.
• UL / cUL: No exact standalone UL/cUL certificate was verified for this specific SAMB revision.
• ATEX / IECEx: No standalone ATEX or IECEx certificate was verified for the bare board. Where the turbine installation is classified, use the certification applicable to the complete approved equipment arrangement.
• Marine Approvals: No exact DNV, ABS, or other marine approval was verified for .
• EMC: The SAMB is part of a Mark VI control cabinet and should be installed using the grounding, shielding, and cable-routing practices specified for the complete control system.
• Functional Safety: Do not infer a SIL or protection rating from the SAMB part number alone. Any safety function belongs to the complete control/protection architecture and its validated application.

Verify specific lot certifications with OEM.

🚨 Long-Term Storage & Asset Preservation Guide

Keep inside an ESD shielding bag. The PCB should not be stored loose, particularly around metal shelving, motor-control equipment, or other electrostatic sources. Use rigid separators when multiple boards share one storage cabinet.

Keep warehouse humidity below 60% RH where practical. Connector contacts and exposed metal interfaces are more vulnerable to oxidation than the coated PCB surface. Avoid condensation cycles and unconditioned storage near turbine rooms or washdown areas.

Preserve the configuration record. Photograph the complete board before shelving it and record the serial number, revision, connector identification, and any jumpers or configuration components present. Mark VI spare cards with similar family names can look interchangeable while serving different signal functions.

Do not impose an arbitrary capacitor-reforming interval. No verified GE instruction establishing a fixed reforming period for this exact SAMB board was established. Controlled inspection and functional testing should determine release-to-service status.

Physical Installation Prerequisites

Install the only within the approved GE Mark VI Simplex I/O architecture for which the complete part number is specified. Do not install it merely because the connector arrangement appears physically similar to another Mark VI analog board.

No reliable manufacturer-specific 50 mm top-and-bottom clearance requirement was verified for this exact board. Do not enter an assumed clearance value into a cabinet drawing. Follow the original Mark VI enclosure arrangement and preserve adequate room for connectors, terminal access, cable bend radius, ventilation, and board removal.

Grounding and shield termination must follow the complete Mark VI cabinet design. Keep analog signal wiring separated from high-current switching conductors where required by the original installation.

Before removing the installed board, photograph the terminal wiring and connector assignments. Label every field conductor before disconnecting it (this is particularly important when multiple analog loops are terminated on adjacent points).

After installation, verify correct connector seating, retaining hardware, terminal torque, and signal continuity before applying system power. Do not treat a successful mechanical installation as proof of electrical compatibility.

Buyer’s FAQ — Logistics & Compliance Focus

Q1. What HS tariff code should be used for GE ?
Do not assign a final HS classification from the part number alone. The correct code depends on the importing country’s tariff schedule and how customs classifies a dedicated turbine-control analog interface board. Use a precise description such as “GE Mark VI SAMB analog I/O interface board, ”, then have the destination-country customs broker validate the classification.

Q2. Does the GE brand establish Country of Origin?
No. Brand identity does not establish manufacturing origin. Obtain a COO declaration tied to the actual serialized unit or shipment lot and retain it with the commercial invoice and packing list. Do not use warehouse location or the seller’s country as a substitute for manufacturing COO.

Q3. Should shipping insurance be based on the board’s physical weight?
No. Insurance should reflect the declared replacement value and downtime exposure. For a legacy Mark VI board, replacement scarcity can be economically significant even when the PCB itself is relatively light. Record serial number, condition, declared value, package dimensions, gross weight, and pre-shipment photographs before carrier handoff.

Q4. Does a New Original include the latest firmware pre-loaded?
Do not assume it does. The SAMB is an interface/termination board rather than a conventional standalone controller. The primary compatibility checks are hardware revision, terminal wiring, connector arrangement, and the associated Mark VI I/O architecture.

Q5. What should receiving inspection retain before this board enters controlled spare inventory?
Record the complete identity, serial number, hardware revision, physical condition, connector condition, COO documentation, applicable certification evidence, actual shipping dimensions and weight, and clear photographs. Retain the installed terminal map and associated Mark VI assembly reference with the spare record so the board can be matched correctly during an emergency replacement.
