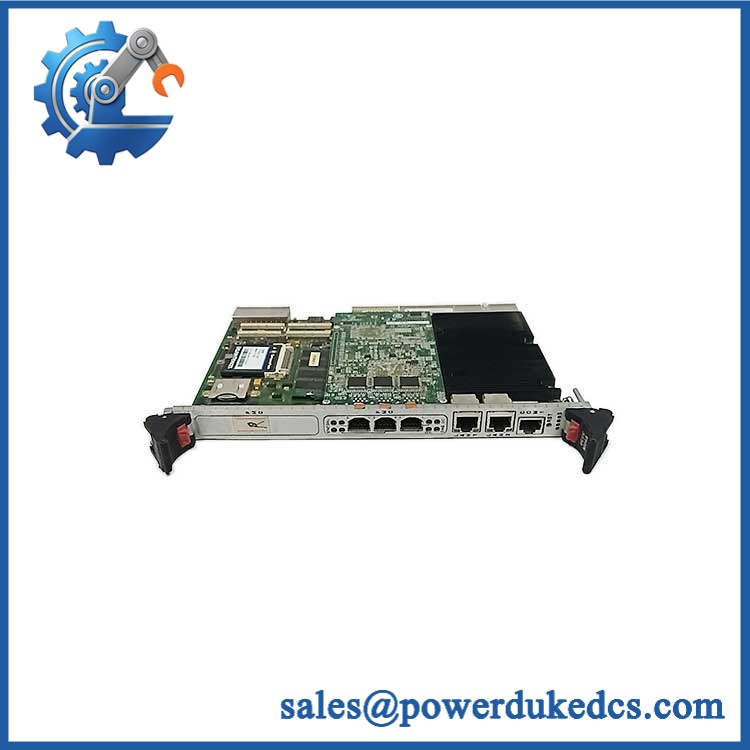

GE IS215WEPAH2BB | 125VDC WEPA Pitch Control Board

Description

• Brand: GE
• Full Model Number: IS215WEPAH2BB / 3E4R4RB
• System/Series Family: GE Mark VI Wind Energy Control
• Core Function: WEPA Wind Energy Pitch Axis PCB for turbine blade-pitch control
• Top 3 Hardcore Specs: 125 VDC supply; IONet and UDH communications; 10, 20, and 40 ms software frame rates
• Stock Status: New Surplus — exact 3E4R4RB configuration and hardware revision to be confirmed before shipment

The IS215WEPAH2BB is identified as a GE Mark VI WEPA (Wind Energy Pitch Axis) board. Technical records associate it with simplex and triple-redundant applications, a connected daughterboard, and a 125 VDC power supply.

Module 3: Technical Product Introduction

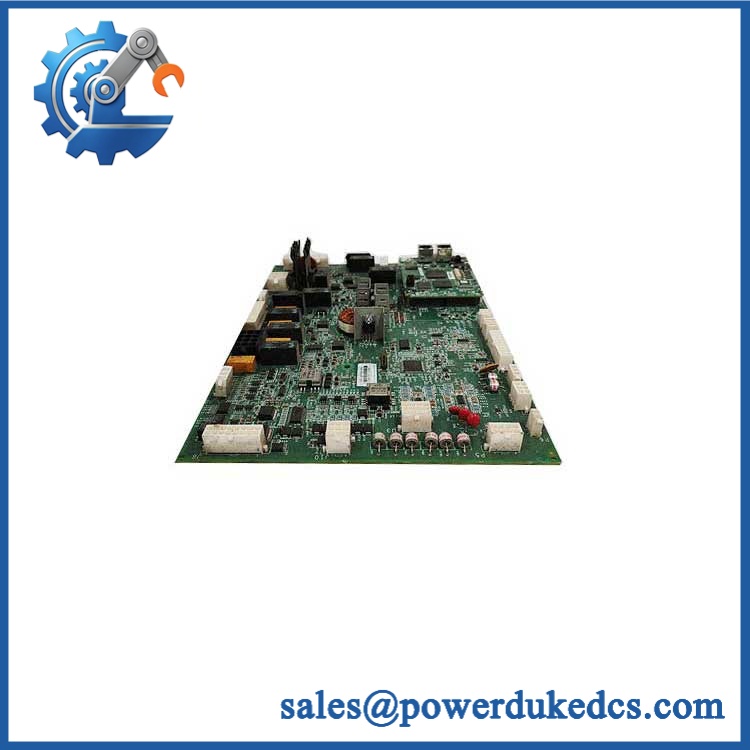

A pitch-control board failure can take a turbine pitch axis out of service, making the exact hardware revision important during an emergency replacement. The GE IS215WEPAH2BB is a Mark VI WEPA board associated with GE wind-energy pitch-axis control. It is listed for simplex or triple-redundant configurations and normally occupies one position in a VME rack within the control module.

The published technical data identifies a 125 VDC power supply, IONet and UDH communications, and three selectable software frame rates: 10, 20, and 40 ms. The board has a connected daughterboard and multiple female plug connectors around the PCB perimeter; a repair reference also identifies IS215WEPAH2BB / IS210BPPCH1AD among the associated WEPA circuit-card combinations. The additional 3E4R4RB marking should be retained in the purchasing record because it may identify a particular hardware or application configuration not captured by the base catalog number.

GE IS215WEPAH2BB

Module 4: Application Scenarios & Field Realities

• Inside a GE wind-turbine control cabinet, the WEPA board forms part of the pitch-axis control chain. When replacing one, verify the complete board identification and cabinet configuration rather than ordering solely from the “WEPA” functional acronym. GE-related repair documentation classifies the H2BB version under the Wind Energy Pitch Axis 30/40 Nm PCB, non-CANbus family.
• For a simplex turbine controller, the IS215WEPAH2BB can be used as the pitch-axis control board. In a TMR architecture, however, the replacement must match the redundancy arrangement and associated control configuration.
• During a planned turbine outage, record every connector position and both board markings before removal. The H2BB assembly includes a daughterboard, and its perimeter connectors can have different pin counts. That makes connector documentation worthwhile.
• When troubleshooting intermittent pitch behavior, check control power, feedback devices, communication wiring, and associated boards before declaring the WEPA board defective. A communication or feedback fault can produce symptoms that resemble a failed controller.

Module 5: Migration, Compatibility & Installation Traps

Replacement Matrix

Field Trap 1 — CANbus variant confusion:
GE Energy parts references distinguish IS215WEPAH1AB / IS215WEPAH1BB as WEPA 30/40 Nm CANbus boards, while IS215WEPAH2BA, , IS215WEPAH2BPR1, IS215WEPAH2AB, and IS215WEPAH2BC are listed under the non-CANbus family. Do not substitute an H1-series board for an H2-series board without checking the turbine wiring and control architecture.

Field Trap 2 — Redundancy configuration:
The H2BB is documented for simplex or triple-redundant use. The replacement therefore needs to match the installed control topology. A board that powers up correctly can still be unsuitable if its application configuration does not correspond to the turbine’s redundancy scheme.

Installation note: Isolate the cabinet according to the approved turbine maintenance procedure. Record connector locations, observe ESD controls, verify the 125 VDC supply arrangement, and inspect the daughterboard connection before energizing the replacement.

GE IS215WEPAH2BB

Module 6: Quality Assurance SOP

1. OEM identification inspection — Verify , the 3E4R4RB marking, serial information, revision markings, and all secondary identification labels.
2. Physical PCB inspection — Examine the PCB, daughterboard, plug connectors, mounting points, solder joints, and accessible components for corrosion, cracks, contamination, overheating, or previous repair work.
3. OEM anti-counterfeit visual inspection — Compare GE markings, board construction, connector arrangement, component placement, daughterboard configuration, and revision identifiers against authenticated reference hardware.
4. Power-rail verification — Confirm the correct supply arrangement before applying power. Published technical data identifies 125 VDC for the .
5. Power-on self-test (POST) — Install the board in an appropriate GE Mark VI test environment and monitor startup behavior, diagnostic indications, current consumption, and controller recognition.
6. I/O verification — Exercise applicable pitch-axis inputs and outputs using an approved test fixture. Verify that measured responses correspond to the known-good reference configuration.
7. Communication handshake verification — Test the applicable IONet and UDH communication paths and confirm stable data exchange with the associated Mark VI control hardware.
8. Frame-rate verification — Confirm the configured application operates at the required 10, 20, or 40 ms software frame rate. These rates determine the interval associated with input conditioning, input reading, output transmission, and application execution.
9. Redundancy verification — Where the test facility permits, verify the board in the intended simplex or TMR configuration rather than performing only a standalone power test.
10. Final traceability record — Photograph the complete identification, document hardware revision and physical condition, record test results, and package the board in ESD-safe protective material.

For , the most important replacement checks are the H2BB board family, exact configuration marking, non-CANbus architecture, 125 VDC supply, and simplex/TMR application. GE-associated parts references place H2BB within the Wind Energy Pitch Axis 30/40 Nm non-CANbus family, while independent technical records confirm the WEPA function and Mark VI application.
