GE IS220UCSAH1A | Original UCSA Control Module

Description

1. GE IS220UCSAH1A | Original UCSA Control Module

Unboxing & Physical Snapshot

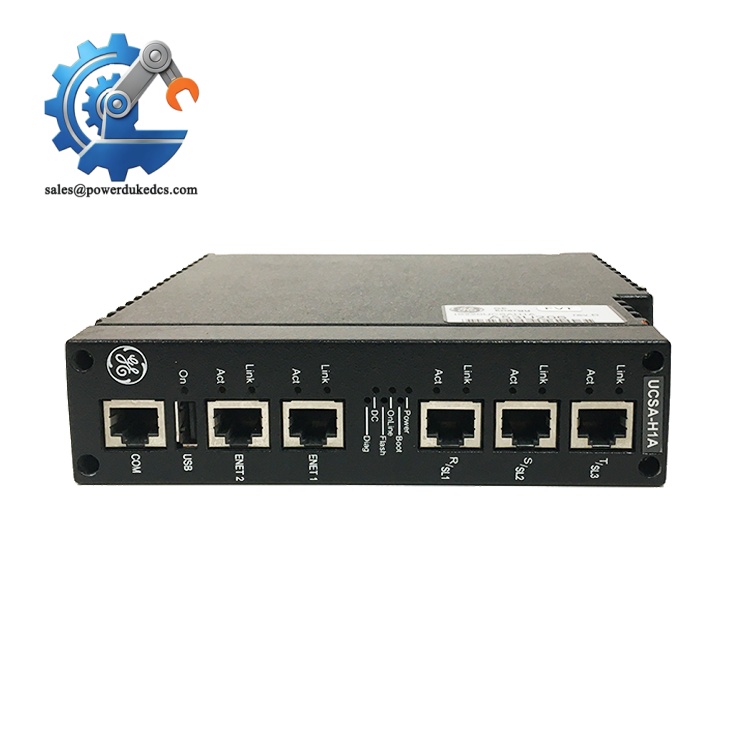

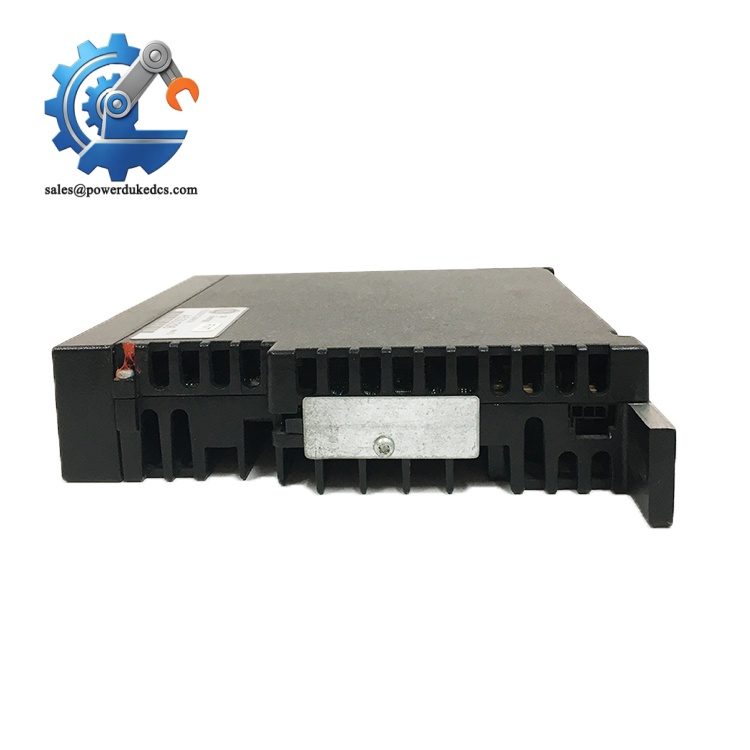

• Brand & Model: GE IS220UCSAH1A
• Product Type: Mark VIe UCSA Standalone Controller Module designed for GE Mark VIe turbine control systems. It operates as an embedded controller running application code under the ControlST engineering environment.
• Primary Application: Gas turbines, steam turbines, balance-of-plant automation, generator control, and critical power generation systems.
• Physical Dimensions (Approximate W × H × D):
  • 204 × 152 × 55 mm
• Estimated Shipping Weight: Approximately 0.7–0.9 kg (shipping weight typically around 2 lb / 0.9 kg).
• What’s in the Box:
  • GE IS220UCSAH1A Controller Module
  • Factory-installed CompactFlash storage
  • Integrated Ethernet interfaces
  • Rear mounting hardware
  • Anti-static (ESD) protective bag
  • Protective shipping carton
  • Documentation (when supplied)

Product Introduction

Structure B — Architecture Hook

The GE IS220UCSAH1A occupies the controller layer within a Mark VIe control cabinet, serving as the embedded computing platform that coordinates I/O processing, control logic, diagnostics, and communications. Installed directly onto its mounting base, the controller interfaces with Mark VIe network infrastructure while supporting real-time turbine control functions.

Unlike a conventional PLC processor, this module forms part of an integrated power-generation control architecture. The aluminum enclosure, front Ethernet ports, and status LEDs provide quick diagnostic access (—particularly valuable during outage inspections). Before replacement, verify the hardware revision, CompactFlash image, and ControlST compatibility to prevent commissioning delays.

Core Technical Specifications

GE IS220UCSAH1A

The controller stores firmware, operating software, and application data. Any replacement should include verification of firmware revision, application backup, and controller configuration before returning the system to service.

? Global Compliance & Industry Certifications

Typical approvals associated with this class of GE Mark VIe controller include:

• CE Mark — for applicable European installations.
• UL/cUL Listed — certified for power generation controller applications.
• IECEx — approved configurations are available for hazardous locations when installed as part of the certified Mark VIe system.
• ATEX — supported on approved system configurations intended for hazardous environments.
• Marine Approvals (DNV GL or equivalent) — available on selected project-specific installations.

For hazardous-area installations, IECEx approval is important because it confirms the controller can be incorporated into certified systems that minimize ignition risks under specified operating conditions.

Verify specific lot certifications with OEM.

? Long-Term Storage & Asset Preservation Guide

Store the IS220UCSAH1A inside its original ESD shielding bag with connector covers installed. Dust on Ethernet connectors or oxidation on mounting contacts can complicate commissioning years later.

Maintain warehouse humidity below 60% RH. Keep the controller in a temperature-controlled environment to protect the CompactFlash media and onboard memory components.

Before installation:

• Inspect the Ethernet ports for bent contacts.
• Examine the mounting edge and connector surfaces for corrosion.
• Verify the CompactFlash card remains properly seated.
• Confirm the hardware revision matches the installed Mark VIe system.

Avoid stacking heavy equipment on top of the controller carton. Excessive pressure can deform the enclosure or damage internal PCB supports.

GE IS220UCSAH1A

Physical Installation Prerequisites

• Install only on the approved Mark VIe controller mounting base.
• Verify the incoming supply is 18–36 VDC.
• Leave at least 50 mm of clearance around the controller to promote natural convection cooling.
• Maintain separation between communication cables and high-voltage conductors.
• Connect protective earth according to GE installation practices.
• Use ESD protection throughout installation.
• Confirm all Ethernet network assignments before energizing the controller.

Buyer’s FAQ (Logistics & Compliance Focus)

Q1. Which HS Tariff Code is typically used for the ?

A: The final Harmonized System classification depends on the importing country’s customs regulations. Industrial programmable controller modules are commonly classified under electrical control apparatus headings, but the importing customs authority or broker should determine the final code.

Q2. Why is the Country of Origin important?

A: The COO can affect import duties, free-trade eligibility, customs documentation, and plant asset traceability. Always retain the original product label, commercial invoice, and packing records for audit purposes.

Q3. Should this controller be shipped with cargo insurance?

A: Yes. The controller contains a processor, memory devices, CompactFlash storage, and precision communication interfaces. Shipping insurance is recommended to protect against impact damage, electrostatic events, and moisture exposure during international transport.

Q4. Does the include the latest firmware?

A: Not necessarily. Firmware depends on the manufacturing revision and previous configuration. Before installation, verify that the firmware and ControlST application version are compatible with the existing Mark VIe system and restore the approved project configuration if required.
