1. GE IS420ESWAH3A | Authenticated Turbine Control Network Hardware

2. Unboxing & Physical Snapshot

• Brand & Model: GE IS420ESWAH3A
• Product Family: GE Mark VIe / Mark VIeS Turbine Control System.
• Product Type: Industrial unmanaged IONet Ethernet switch.
• Primary Function: Provides deterministic Ethernet communication for Mark VIe controllers, I/O packs, and operator interfaces.
• Network Configuration: 8 × 10/100Base-TX RJ-45 copper ports with no fiber ports on the H3A variant.
• Approximate Physical Dimensions (W × H × D): Approximately 45 × 160 × 120 mm (DIN-rail industrial switch format).
• Estimated Shipping Weight: Approximately 1.0 kg including standard protective packaging.
• Mounting Style: DIN-rail mounting inside the Mark VIe control cabinet.
• Mechanical Features:
  • Powder-coated metal enclosure
  • Eight RJ-45 Ethernet ports
  • Dual redundant power terminals
  • Front-panel status LEDs
  • DIN-rail retaining clip
• Cooling Method: Passive convection through the metal enclosure (no internal cooling fan).
• What’s in the Box:
  • GE IS420ESWAH3A IONet Switch
  • Anti-static (ESD) protective packaging
  • Protective end caps (when supplied)
  • Inspection documentation if included

3. Product Introduction

Within a Mark VIe turbine control cabinet, the IS420ESWAH3A serves as the communication backbone that connects controllers, distributed I/O packs, engineering workstations, and HMIs. Its unmanaged architecture minimizes configuration complexity while supporting the deterministic network behavior expected in turbine control applications (particularly during plant startup and trip sequences).

This hardware should be treated as a critical network infrastructure component rather than a conventional office Ethernet switch. Examine the RJ-45 connectors, DIN-rail latch, power terminals, and metal enclosure before installation. Check the date code. Bent connector shields or loose retaining clips can introduce intermittent communication faults that are difficult to diagnose during commissioning.

4. Core Technical Specifications

Parameter	Value
Manufacturer	GE
Model Number	IS420ESWAH3A
Product Type	Mark VIe IONet Ethernet Switch
System Family	Mark VIe / Mark VIeS
Ethernet Ports	8 × 10/100Base-TX RJ-45
Fiber Ports	None
Ethernet Standards	IEEE 802.3, 802.3u, 802.3x
Duplex Mode	Auto Full/Half Duplex
Auto MDI/MDIX	Supported
MAC Address Table	4K addresses
Packet Buffer	Minimum 256 KB
Switching Capacity	Industrial 10/100 Ethernet switching
Power Supply	24/28 VDC nominal
Maximum Current	1 A
Power Input	Dual redundant, diode-OR configuration
Mounting Method	DIN rail
Operating Temperature	-40°C to +70°C
Cooling	Fanless passive convection
Memory	4K MAC address table
Weight	Approximately 1.0 kg (shipping)

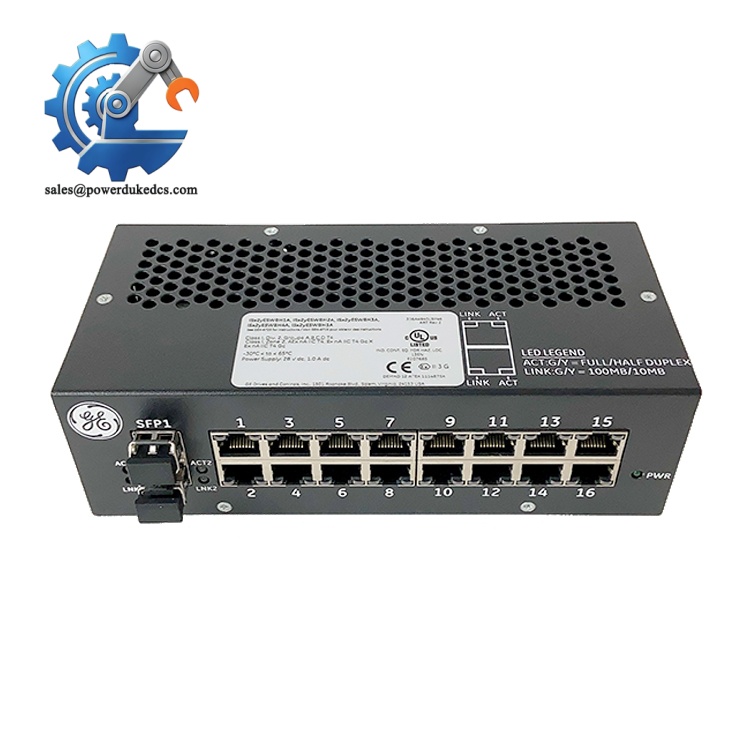

GE IS420ESWAH3A

5. Global Compliance & Industry Certifications

Expected regulatory approvals for the GE IS420ESWAH3A include:

• CE Mark for EMC and Low Voltage Directive compliance where applicable.
• UL/cUL Recognition for industrial control equipment installations.
• FCC EMC Compliance for electromagnetic emissions.
• Class I, Division 2 suitability when installed according to approved system documentation (installation requirements still apply).
• KC Registration for certain regional deployments.
• Marine approvals may be available for complete Mark VIe system installations rather than the individual switch.

The Class I, Division 2 rating is significant because it supports installation in designated hazardous industrial locations where flammable gases may be present under abnormal operating conditions.

Verify specific lot certifications with OEM.

6. Long-Term Storage & Asset Preservation Guide

• Store the switch inside its original ESD shielding bag until installation. The RJ-45 contacts and internal switching electronics are susceptible to electrostatic discharge.
• Maintain warehouse humidity below 60% RH. Corrosion on Ethernet contacts often appears long before external damage becomes visible.
• Energize and inspect long-stored inventory during scheduled maintenance intervals to verify LED indicators and redundant power inputs remain functional (this helps identify dormant storage-related failures before an outage).
• Avoid stacking heavy equipment directly on the enclosure to prevent distortion of the DIN-rail latch and Ethernet connectors.

7. Physical Installation Prerequisites

• Mount the IS420ESWAH3A securely on a grounded DIN rail inside the approved control cabinet.
• Leave at least 50 mm (2 in.) of clearance above and below the switch to support natural convection cooling.
• Connect both redundant 24 VDC power inputs whenever system redundancy is required.
• Bond the cabinet protective earth before applying power.
• Route Ethernet cables separately from high-energy motor and power cables to reduce conducted electrical noise.
• Confirm the DIN-rail retaining clip is fully engaged before connecting network cables.

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q: Which HS Tariff Code is commonly used for the IS420ESWAH3A?

A: Industrial Ethernet switches are frequently classified under HS 8517 (communication apparatus) or, in some jurisdictions, under industrial control equipment classifications. Final classification should always be confirmed with the destination country’s customs authority.

Q: Why does the Country of Origin (COO) matter?

A: COO affects import duties, free trade agreement eligibility, regulatory documentation, and asset traceability. Production locations for this model have included facilities in the United States, China, and India depending on manufacturing lot.

Q: Is cargo insurance recommended?

A: Yes. Although the enclosure is mechanically durable, impact damage to the RJ-45 connectors, DIN-rail latch, or power terminals can prevent reliable operation after installation.

Q: Does the IS420ESWAH3A ship with the latest firmware?

A: The switch is delivered with factory-installed firmware appropriate for its hardware revision. Verify firmware compatibility with the installed Mark VIe or Mark VIeS control system before commissioning or replacing an existing network switch.
